Big Tex 14DF

Heavy Duty Drive-Over Fender Equipment/Car Hauler

The 14DF Pro Series Equipment Trailer features a full-width deck, as well as heavy-duty 3/16-inch diamond plate steel drive-over fenders. An internal 6-inch structural channel iron frame makes the 14DF durable and strong enough for any haul.

Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 18' 14,000# 3,205# 10,795#
102" x 20' 14,000# 3,340# 10,660#
102" x 22' 14,000# 3,675# 10,325#

Key Features

Adjustable Cast Coupler

Rubrail and Tie-Down Pockets Along Sides

36" Cleated, Self-Cleaning Dovetail

4' Channel Stand-Up Ramps

Diamond-Plate Drive-Over Fenders

Sealed LED Lighting

Radial Tires

Spare Tire Mount

Equipment

BODY
Standard
Option
36" Cleated, Self Cleaning Dovetail
Fold Back/Wrap Tongue
Fabricated Front Stop Rail
3/16" Diamond Plate Drive Over Fenders
Full Width In Front and Behind Fenders
Blackwood Pro Rubber Infused Floor (X Length of Trailer)
CARGO CONTROL
Standard
Option
Rubrail and Stake Pockets Along Sides
(6) D-Rings to Secure Equipment
5/8" D-Ring (Each)
TIRE/WHEEL
Standard
Option
Quick Lubricating Hubs
Spare Tire Mount (Front)
Radial Tires
Spare Tire (ST235/80 R-16 LR-E)
Tire Upgrade (ST235/80 R-16 LR-G)
Spare Tire Upgrade (ST235/80 R-16 LR-G)
SAFETY
Standard
Option
Sealed Modular Wiring Harness
Complete Break-A-Way System w/Charger
Zip™ Breakaway Cable
LIGHTS
Standard
Option
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
JACKS
Standard
Option
12,000# Drop Leg Jack- Side Wind Against Bed
RAMPS
Standard
Option
5' Rear Slide-In Ramps w/ Stabilizer Jacks
5" Knee Ramps ILO Slide-In Ramps (19" W)
AXLES
Standard
Option
Premium Brand Axles
Cambered Axles
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Adjustable 2-5/16" Demco EZ Latch Coupler
Adjustable Pintle in Channel in Lieu of Coupler
Gooseneck ILO Bumperpull

360° view

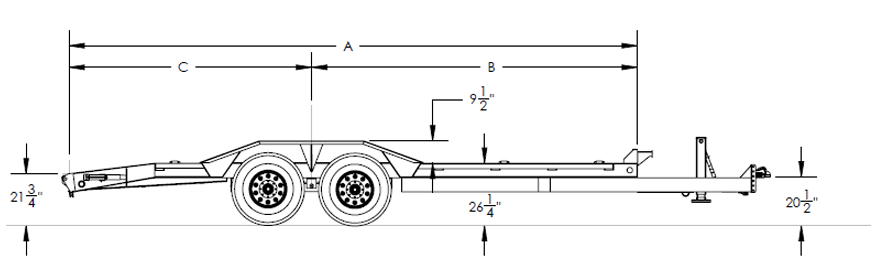

Measurements
