Big Tex 14RB
Roll-Off Dump Trailer (Bin Sold Separately)
Equipped with the most requested features to support the demands of the construction, junk removal, and even the dumpster rental business, the durable 14RB Roll-Off Bumper Pull Dump is built with professional-grade parts and is designed to withstand the rigors of everyday use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the 14RB offers a convenient and cost-effective solution for servicing multiple job sites with a single trailer.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 14' | 14,000# | 3,310# | 8,410# |
| 2,280# (Bin) |
Key Features
GET MORE DONE
THE RIGHT TOOL FOR THE JOB
HEAVY-DUTY PROTECTION
EFFORTLESS MAINTENANCE
Equipment
BODY
Standard
Option
8" I-Beam Frame and Tongue (10#)
3" Channel on 16" Centers
10 Gauge Smooth Steel Floor
9” x 72” 14 Ga. Diamond Plate Double Square Broke
Stake Pockets Along Both Sides (Quantity Varies by Length)
Rear Combo Gate (Barn Doors & Spreader Gate)
4"x 3" Square Tubing
48" Tall (12 Ga) with formed Channel Supports
Professional Finish w/ Primer Standard
Black Paint
Convenient Side-Step to Access Top Rail
Greaseable Rollers
CARGO CONTROL
Standard
Option
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Tilt Bed mounted Battery Box for Independently wired Winch Power System
J-Hooks Along Sides and Rear for Cargo Control
6.5' Slide in Ramp Package
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range-E Radial Tires
ST235/80 R-16 Load Range-G Radial Tires
Side Spare Tire Mount
8-Lug
Black Mod Steel
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire & Wheel (ST235/80 R-16 LR-G)
POWER
Standard
Option
Power Up/Power Down & Gravity Down Hydraulic Pump
Self-Contained Scissor
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch
5A 110V on Board Battery Charger
Specially Designed High Duty Cycle 15K Winch
5 Watt Solar Charger
Wireless Remote
SAFETY
Standard
Option
1/4" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Drop-Leg Jack (Side Wind)
12,000# Elec/Hyd. Jack BY Stillwell™
AXLES
Standard
Option
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Adjustable Pintle in Channel in Lieu of Coupler
360° view
Not available for this model.

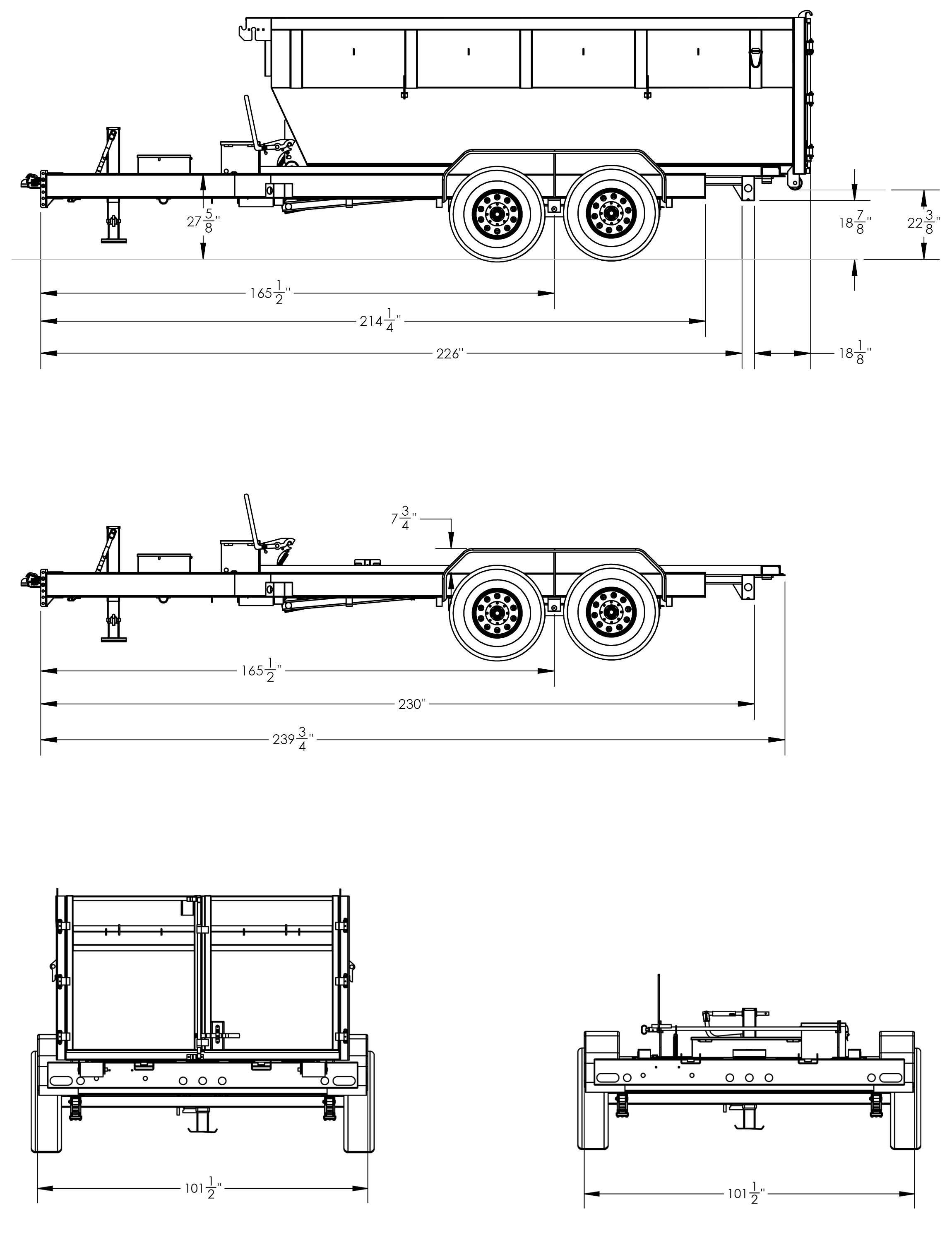

Measurements
