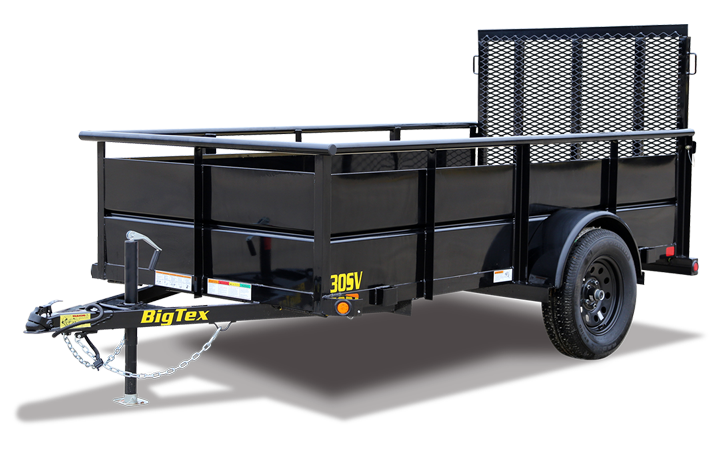

Big Tex 30SV

Single Axle Vanguard Trailer

When it’s time to work, it’s time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
60" x 8' 2,995# 870# 2,125#
60" x 10' 2,995# 970# 2,025#
60" x 12' 2,995# 1,070# 1,925#

Key Features

VANGUARD SIDES

VERSATILE 4’ REAR RAMPGATE (OPTIONAL)

2,000 LBS SET BACK JACK

RADIAL TIRES

Equipment

BODY
Standard
Option
3" x 2" x 3/16" Angle Frame
3” x 2” x 3/16” Angle Crossmembers
Treated Pine Floor
Black Paint
9" x 32" Rolled Formed w/ Back Fenders
28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)
2" x 2" Square Tubing Top Rail
Bolt-On Landscape Box (24" x 24" x 64-1/2")
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
CARGO CONTROL
Standard
Option
(4) Tie Down Loops Inside Bed
Additional Stake Pockets (Each)
TIRE/WHEEL
Standard
Option
ST205/75 R-15 Load Range C
5 Bolt
Spare Tire Mount
Spare Tire (ST205/75R-15 LR-C)
POWER
Standard
Option
4-Way Flat w/ Loom
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/4” Grd. 30 w/Safety Latch Hook (2 each)
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
2,000# Top Wind, Set-Back Jack
2,000# Fold-Up Jack
RAMPS
Standard
Option
4' Tall Rear Rampgate w/ Coil Spring Assist
5' Tall Rear Rampgate w/ Coil Spring Assist
AXLES
Standard
Option
3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Slipper Spring
BRAKES
Standard
Option
Brake Flanges on Axle for Easy Brake Addition
Electric Brakes w/ Complete Brake-Away Kit
COUPLERS
Standard
Option
2" A-Frame
2” Forged Coupler

360° view

Measurements
