Big Tex 35SA-RSX
Single Axle ATV Trailer
The 35SA-RSX Single Axle ATV Trailer features the same heavy duty 4″ frame, square rail and ramp sides as the 35SA-RS, but with a wider 83″deck. The added space allows for ATVs to be loaded across the trailer and provides room for larger side-by-sides and landscaping equipment.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 12' | 2,995# | 1,140# | 1,855# |
| 83" x 14' | 2,995# | 1,220# | 1,775# |
Key Features
2" A-Frame Coupler
Removable Jack w/ Sand Foot
Protected Wiring
Sealed L.E.D. Lighting
6 Tie-Down Loops
(2) 5' Square Tubing ATV Ramp Sides
Radial Tires
Equipment
BODY
Standard
Option
Durable Tubing Top Rail
A-Frame Channel Tongue
Rear Tailboard Channels (Deleted if Rampgate Added)
Blackwood Pro Rubber Infused Floor (X Length of Trailer)
CARGO CONTROL
Standard
Option
(6) Tie Down Loops Inside Bed
Stake Pockets (Each)
Additional Tie Loops (Each)
TIRE/WHEEL
Standard
Option
Quick Lubricating Hubs
Front Spare Tire Mount
Radial Tires
Spare Tire & Wheel (ST205/75R-15 LR-C)
POWER
Standard
Option
Protected Wiring
LIGHTS
Standard
Option
Grommet-Mount Sealed Lighting
L.E.D. Lighting Package
JACKS
Standard
Option
Set-Back Jack
Removable Sand Foot on Jack
2,000# Fold-Up Jack
RAMPS
Standard
Option
(2) 5' Square Tubing ATV Ramp Sides
Ramps Can be Used on Either Side and on Rear
4' Tall Rear Rampgate w/ Coil Spring Assist
5' Tall Rear Rampgate w/ Coil Spring Assist
4' Tall Bi-Fold Rear Rampgate w/ Coil Spring Assist
AXLES
Standard
Option
Premium Brand Axle
BRAKES
Standard
Option
Brake Flanges on Axle for Easy Brake Addition
COUPLERS
Standard
Option
2" Forged Coupler
360° view
Not available for this model.

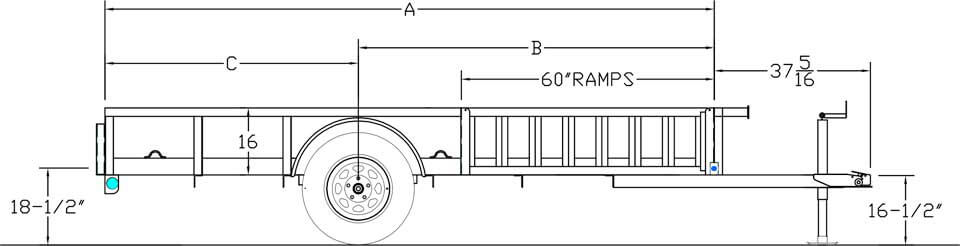

Measurements
