Big Tex 5XPH
Pintle Heavy Equipment Transport Trailer
This is it, our biggest and toughest solution for those in the trenches hauling extremely heavy equipment and loads. The 5XPH Pintle Heavy Equipment Transport Trailer, a super heavy-duty equipment hauler that’s been built from the ground up to handle the heaviest and largest loads—featuring a 58,000 lbs G.V.W.R. to handle all your heavy equipment hauling needs. And it’s outfitted with an anti-skid braking system, heavy-duty adjustable suspension, spring-assist ramps, and brakes and axles optimized for the heaviest loads, which altogether make for a safer and more efficient hauling experience.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 102" x 24'+5' | 58,000# | 10,350# | 47,650# |
| 102" x 28'+5' | 58,000# | 10,850# | 47,150# |
Key Features
ROBUST ADJUSTABLE PINTLE RING
ANTI-SKID BRAKING SYSTEM
HEAVY-DUTY ADJUSTABLE SUSPENSION
COMPREHENSIVE LOAD SECUREMENT
Equipment
BODY
Standard
Option
14" I-Beam
6" Jr. I Beam, 16" Centers
2" Nominal Oak
3/16" Fabricated Front Stop Rail
5' Cleated Dovetail
3/8” Heavy Duty Rub Rail on Both Sides
(2) Side Bed Steps
Black Paint
Wood Fill Dovetail & Ramps
CARGO CONTROL
Standard
Option
Storage Tray in Tongue
Stake Pockets Along Both Sides (Quantity Varies by Length)
(6) 1" D-Rings to Secure Equipment
Lockable Lid Over Tool Storage in Tongue
Extra 1" D-Rings
TIRE/WHEEL
Standard
Option
ST215/75 R-17.5 Load Range H Radial Tires
6.75 x 17.5, 10 Bolt Bud
Spare Tire Mount
Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
Vertical Spare Mount
POWER
Standard
Option
7-Way Semi-Style
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/2" Grade 80 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Drop-Leg Jack (Top Wind)
Dual 2-Speed Landing Gear
RAMPS
Standard
Option
5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps)
AXLES
Standard
Option
3 - 22,500# Premium, Cambered Axles with Heavy-Duty Oil Bath
Heavy-Duty 66,000# w/ Automatic Slack Adjusters
BRAKES
Standard
Option
Air Brakes on Both Axles w/ Anti-Skid System on Front Axle
COUPLERS
Standard
Option
3" Pintle Ring w/ 3-Position Adjustment Plate
360° view

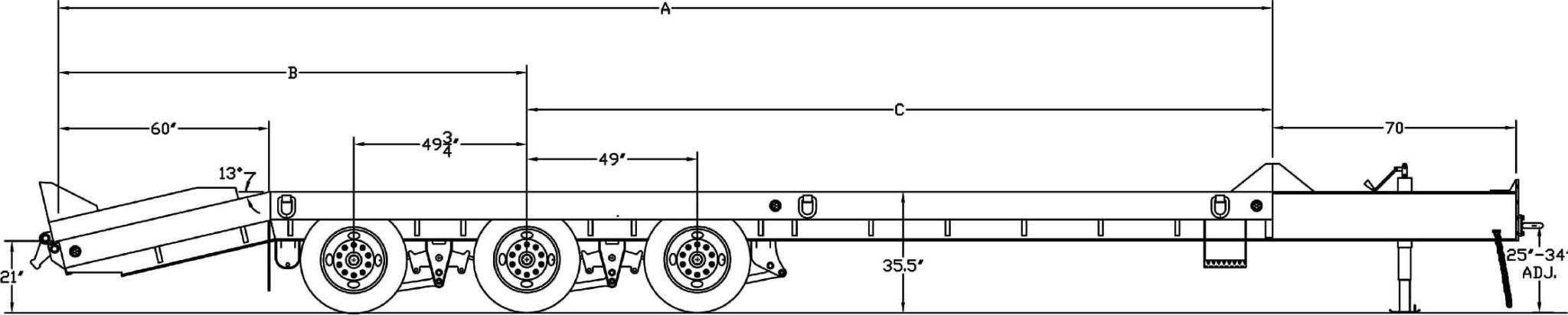

Measurements
