RWT7 7x16 Flat Top Wedge Enclosed Trailer

The RC Trailers RWT7X16TA2 is a 7-foot by 16-foot tandem-axle enclosed cargo trailer designed for versatile hauling needs. Below are the detailed specifications for the 2025 model:​

General Specifications:

Model: RWT7X16TA2​

Year: 2025​

Overall Dimensions: 7 feet (width) x 16 feet (length)​

Interior Height: 7 feet (84 inches)​

Gross Vehicle Weight Rating (GVWR): 7,000 lbs​

Payload Capacity: Approximately 4,645 lbs​

Dry Weight: Approximately 2,355 lbs​

Axles: Two 3,500 lb. Lippert drop axles with a 6-year warranty​

Tires and Wheels: ST205/75R15 radial tires on white steel wheels​

Hitch Type: 2-5/16-inch coupler with safety chains​

Jack: 2,000 lb. top wind jack with sand pad​

Frame and Construction:

Frame: All-steel construction with 24-inch on-center floor, ceiling, and wall crossmembers​

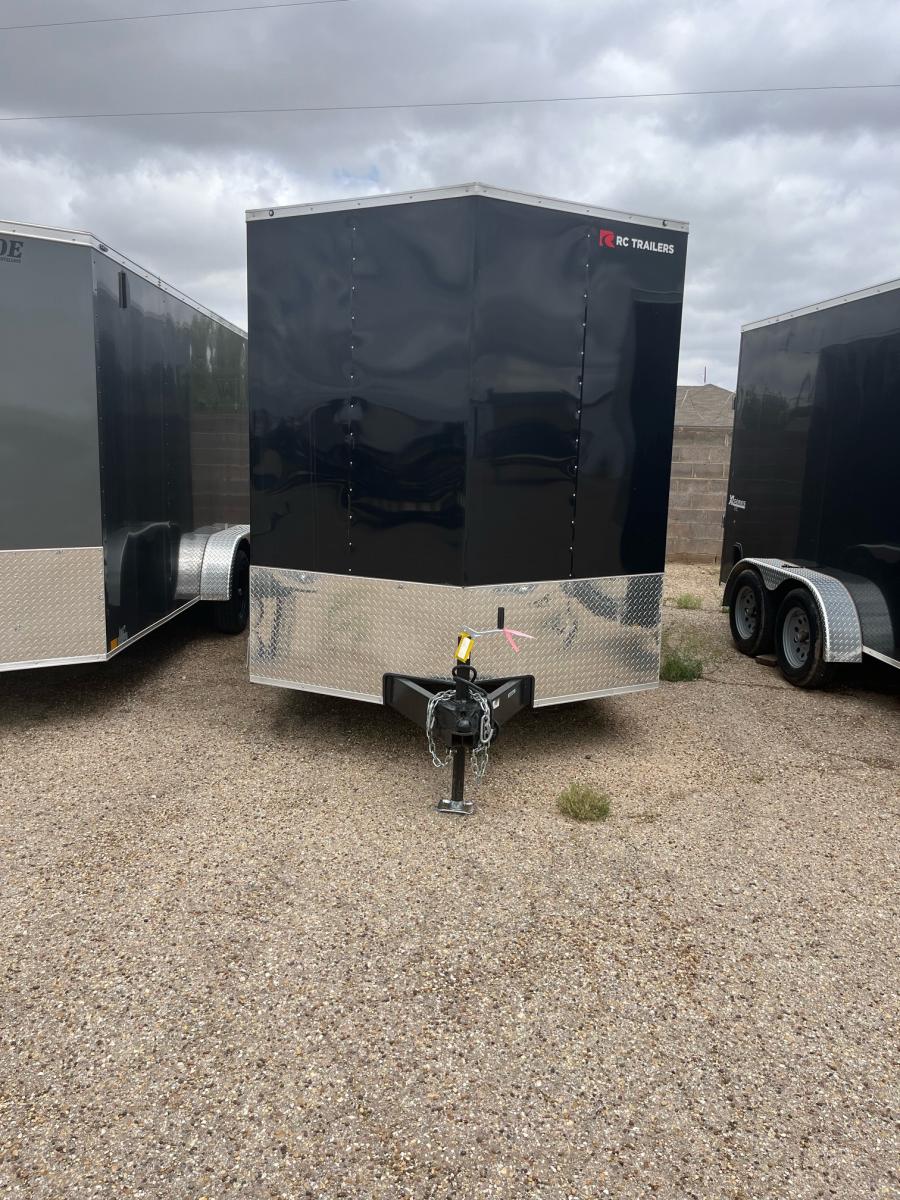

Nose Design: 18-inch wedge nose​

Exterior Metal: .030-inch aluminum siding​

Roof: One-piece aluminum roof​

Stoneguard: 24-inch ATP (Aluminum Tread Plate) stoneguard​

Fenders: ATP fenders​

Trim: 1.5-inch lower trim and 3-inch top rail​

Doors and Vents:

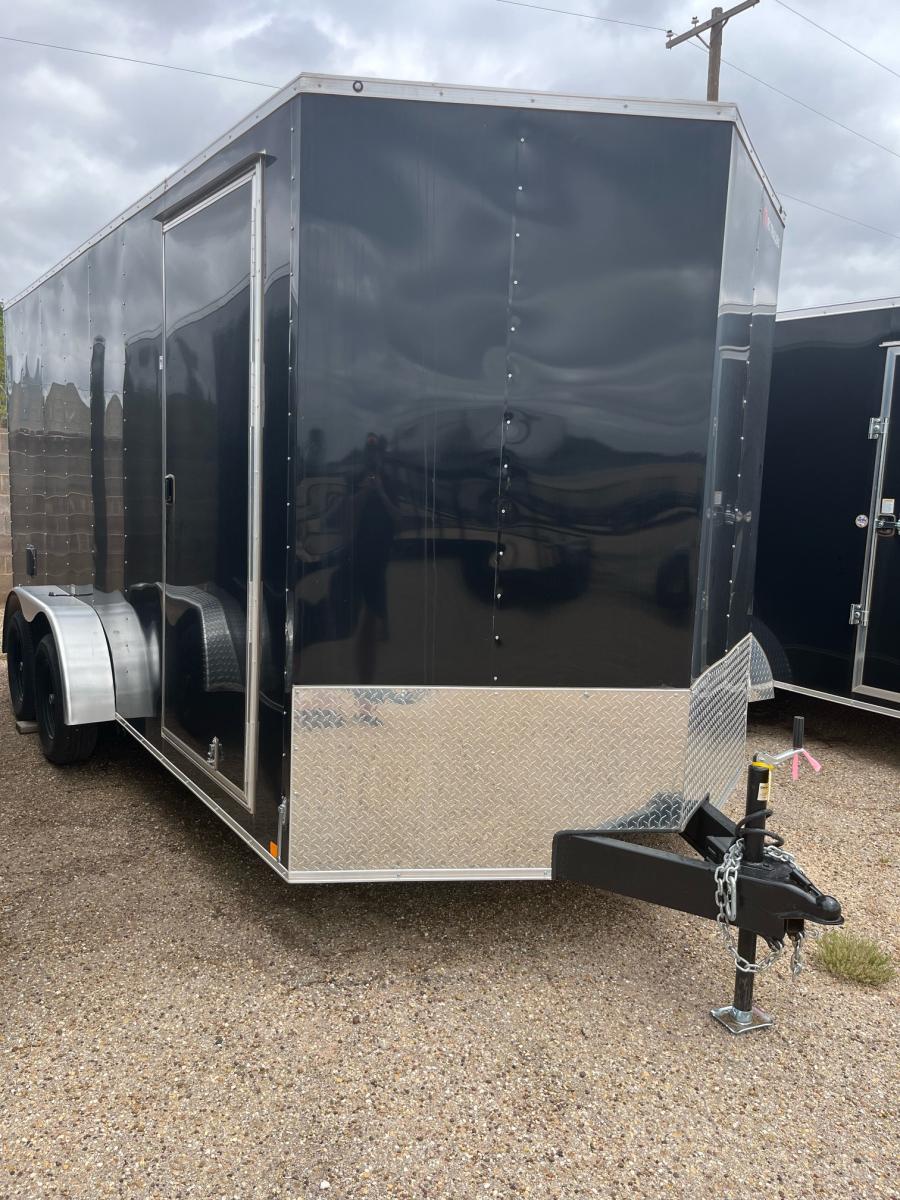

Side Door: 36-inch flush lock side door with cam bar​

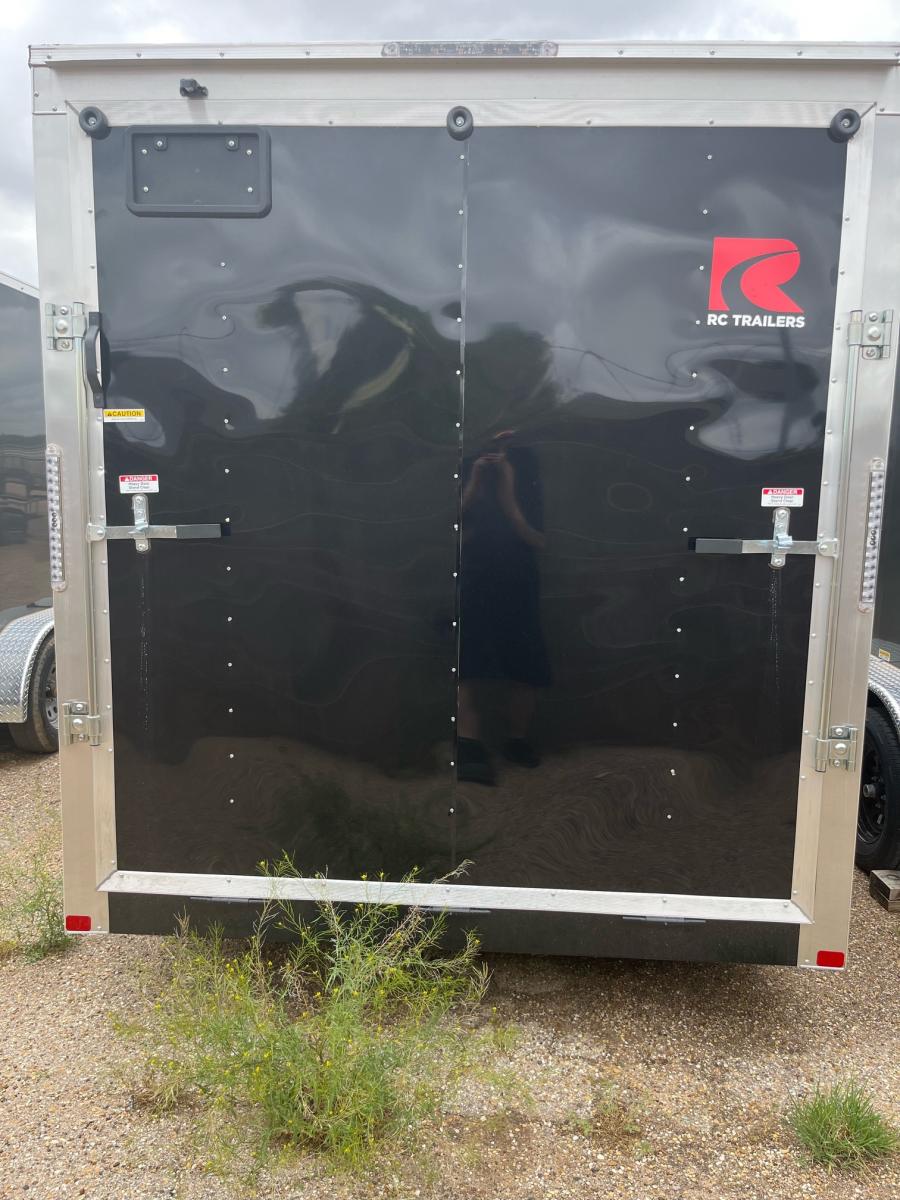

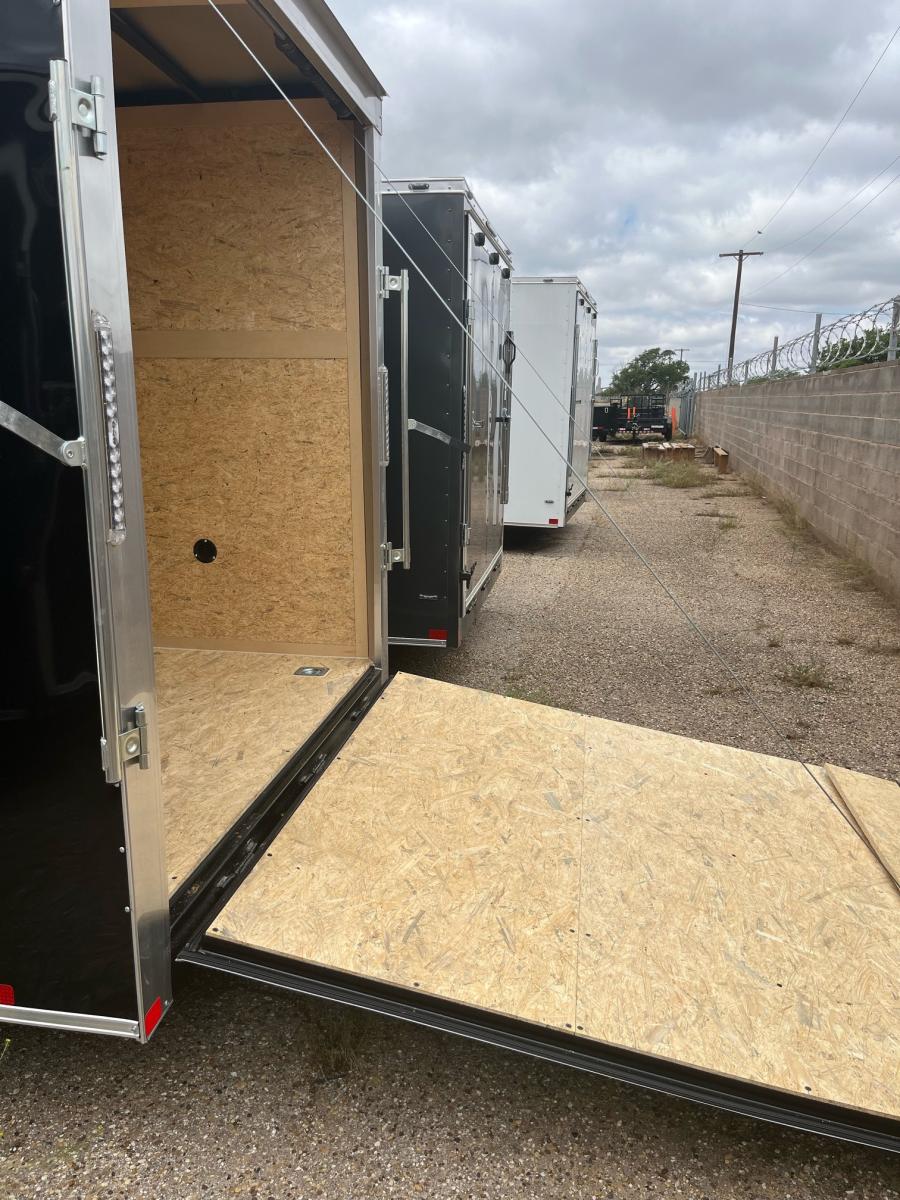

Rear Door: Light-duty ramp door with a 1,000 lb. capacity and ramp flap​

Vents: Flow-thru sidewall vents​

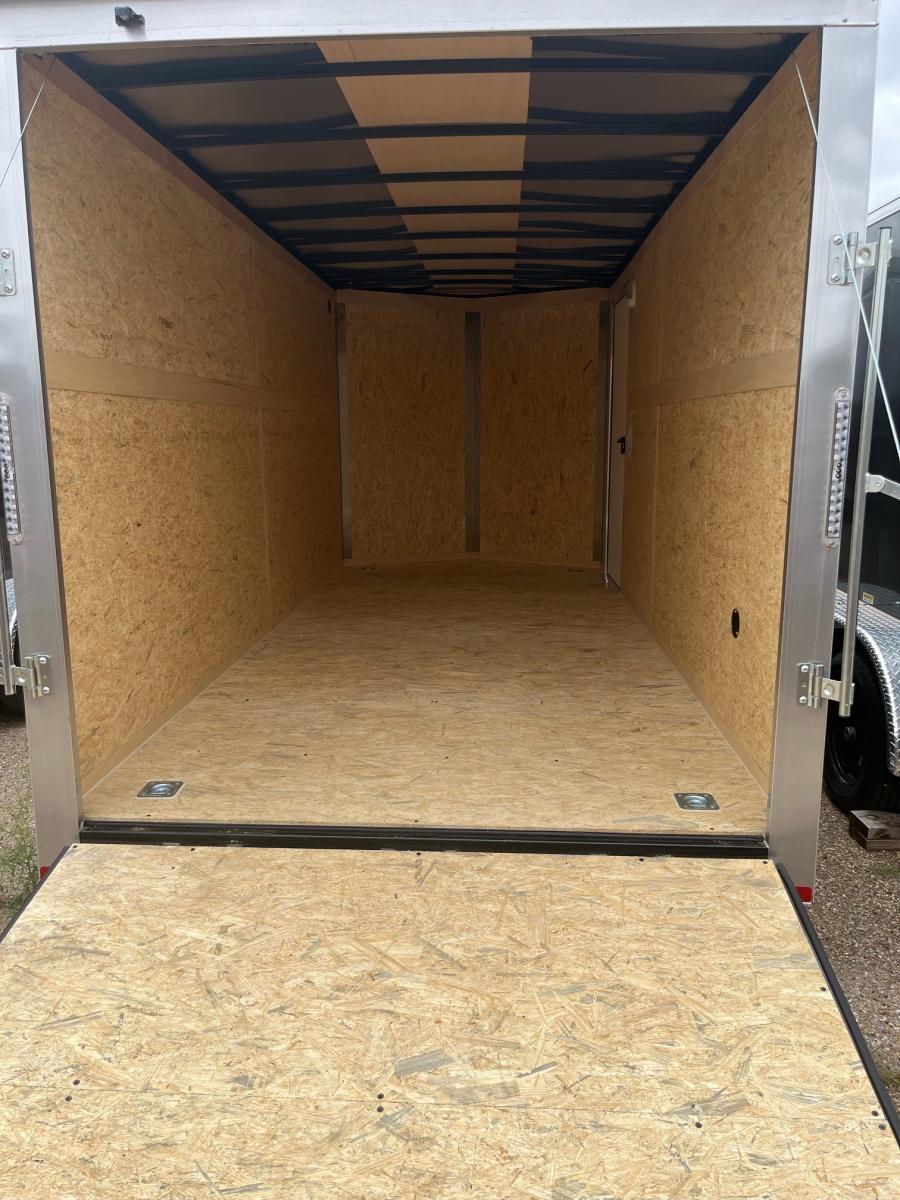

Interior Features:

Flooring: 3/4-inch engineered wood flooring​

Walls: 3/8-inch plywood walls​

Tie-Downs: Four heavy-duty (5,000 lb.) D-rings​

Electrical and Lighting:

Dome Light: One 12-volt interior light​

Tail/Brake Lights: LED strip tail light/brake lights, surface mounted​

Clearance Lights: LED surface-mounted clearance lights​

Wiring Plug: 7-way plug with electric brakes on all wheels​

Warranty:

Manufacturer's Warranty: 3-year limited warranty​

Axle Warranty: 6-year warranty on Lippert axles​

These specifications provide a comprehensive overview of the RC Trailers RWT7X16TA2 model.
