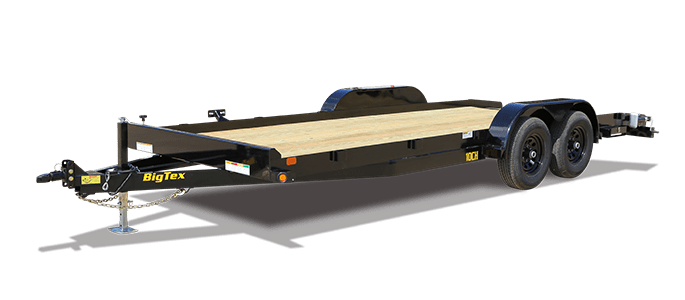

Tandem Axle Car Hauler (10CH)
More capacity. More strength. If that’s what you need for your car hauling needs, then the 10CH Tandem Axle Car Hauler is your trailer. With a 9,990 lbs G.V.W.R., the 10CH hauls everything from cars and tractors to light- and medium-duty equipment—a professional-grade hauler that’s constructed to tackle tough tasks. Featuring a fabricated front stop rail, easy load angle, and premium axle, this is a heavy-duty car hauler purpose-built for safely and securely transporting vehicles and equipment.
Trailer Specifications
18' – 20''
Width
83"
Lengths
9,990 lbs
GVWR
7,710—7,865 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Coupler |
Adjustable 2-5/16” Demco EZ Latch
Available Options |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack | 8,000# Top Wind, Set-Back Jack |
| Frame | 6” x 3.5” x 5/16" Angle (1/4" on 16') |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Ramps |
Side Slide In Ramps
Available Options |
| Dovetail |
Available Options |
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length)
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST225/75R-15 Load Range D |
| Bolt Pattern | 6 Bolt |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Optional Dovetail Available
This model is available with an optional Dovetail. Adding the dovetail improves the load angle for smoother loading and unloading of cargo.
Ramp Ready
Available with an optional 4’ slide-in angle ramp package, making loading and unloading vehicles safe and easy.
