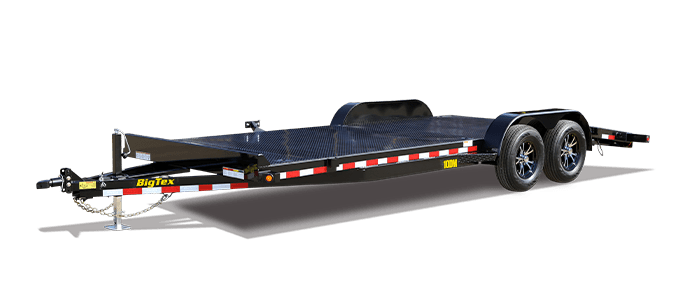

Steel Floor Car Hauler (10DM)
The 10DM Diamond Back Car Hauler is our top-of-the-line, premier car hauler but with a larger G.V.W.R. and more overall cargo capacity. Delivering the hauling capabilities you demand with the eye-catching looks you’ve always wanted, the 10DM the choice to make when you need to haul more. Chrome wheels, steel floor, and diamond-plate rear slide-out ramps make the 10DM both easy to use and easy to look at, and its box tubing frame adds strength and durability. To cut a long story short, the 10DM has it all.
Trailer Specifications
18' – 22''
Width
83"
Lengths
9,990 lbs
GVWR
7,200—7,510 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Coupler |
2-5/16” Demco EZ Latch
Available Options |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack | 8,000# Top Wind, Set-Back Jack (Bolted on) |
| Frame | 5” x 2”x .188" Rectangular Tubing |
| Cross-Members | 3" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor | 1/8" Diamond Plate |
| Ramps | 5' Rear Slide-In Channel Ramps with Stabilizers |
| Dovetail | Integrated Dovetail |
| Stake Pockets |
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 Bolt |
| Wheels | Aluminum Wheels |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
(4) Recessed D-Rings
Available Options |
| Storage |
Available Options |
| Front Rock Shield | Front Rockshield (Aluminum Tread Brite) |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Built for the long haul
Stylish and anti-slip, 1/8” diamond plate flooring guarantees maximum durability while hauling vehicles and other cargo.
Standard 5' Slide-In Ramps
Comes standard with rear slide-In channel ramps for faster and smoother loading.
Integrated Dovetail
A durable and reliable integrated dovetail that’s ideal for transporting vehicles when combined with rear slide-in ramps.
