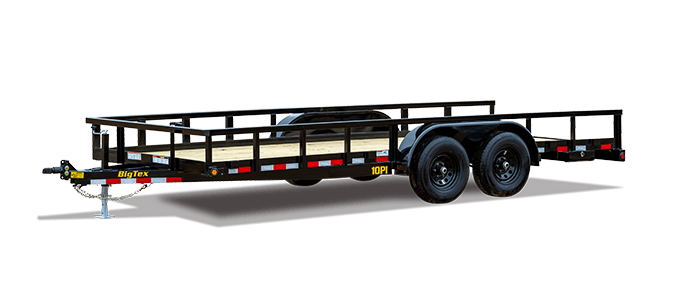

Tandem Axle Pipe Top Utility Trailer (10PI)
Built for those that need a versatile and durable utility trailer that can handle the demands of a hard day’s work, the 10PI Tandem Axle Pipe Top Utility Trailer is ready to get the job done. With a 9,990 lbs G.V.W.R., it hauls everything from small tractors to light- and medium-duty equipment—a professional-level experience that’s constructed to tackle the toughest tasks. And don’t worry about throwing your back trying to secure your haul, and it comes standard with 4’ slide-in ramps to make loading and unloading a breeze.
Trailer Specifications
16' – 20''
Width
83"
Lengths
9,990 lbs
GVWR
7,610—7,730 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Coupler |
2" Demco EZ- Latch
Available Options |
| Safety Chains | 1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 8,000# Set-Back, Drop-Leg Jack |
| Frame | 5" x 3" x 1/4" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 72" Tear Drop, smooth with back |
| Ramps |
4' Slide in Channel Ramps
Available Options |
| Stake Pockets |
Outside Frame Stake Pockets
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires |
ST225/75R-15 Load Range D
Available Options |
| Bolt Pattern | 6 Bolt |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
Available Options |
| Sides |
17.5" Tall Open sides with 3"x 2” Angle uprights and 2-1/2" x 2-1/2" Square Tubing Top Rail
Available Options |
| Storage |
Available Options |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
4' Slide-In Ramps
Slide-in ramps come standard on this model to make loading easy and convenient.
Sturdy Pipe Top Rail
Constructed from 2-1/2" x 2-1/2" square tubing, this pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
