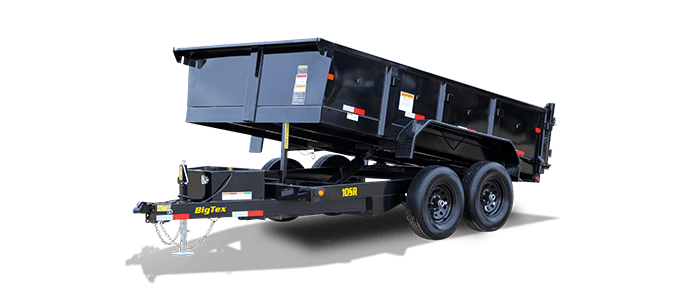

Tandem Axle Single Ram Dump (10SR)
Designed, built, and powdercoated for the long haul, the 10SR Tandem Axle Single Ram Dump Trailer is a medium-duty workhorse that has your back. Hauling dirt, gravel, mulch, or even manure? No problem. The 10SR is equipped with a straight ram hydraulic lifting system that makes dump outs a smoother and more productive experience. From homeowners and ranchers to construction workers, it’s time to let the 10SR do the hard work and save your back—keeping you ready for tomorrow and every day after.
Trailer Specifications
12''
Width
83"
Lengths
9,990 lbs
GVWR
6,660 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 6" Channel |
| Coupler | Adjustable Forged 2-5/16” |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack | 8,000# Top Wind |
| Frame | 6" Channel |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 10 Gauge Smooth Steel |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke |
| Ramps |
Not Included
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 6-Lug |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment|Along Sides and Rear for Cargo Control |
| Break-Away Kit | Complete System with Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides and rear for Cargo Control |
| Power | Power Up/Power Down & Gravity Down Hydraulic Pump |
| Ram | Self-Contained Single Cylinder Lift |
| Sides | 24" Tall Sides (12-Gauge) |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp |
Tarp Mounting Brackets on Front of Bed
Available Options |
| Top Rail | 2" x 2" Square Tubing |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Rear Combo Gate
A multi-functional rear gate with both barn doors and spreader gate that makes it easy to load, unload, or spread
Strength and Versatility
This model has a 2" square tubing top rail for added strength, to complement the stake pockets for added cargo control and ability to support aftermarket side extensions.
10-Gauge Steel Floor
Built for long-lasting durability that’s easy to maintain, its heavy floor can take a beating and keep going
43° Dump Angle
Allows for steeper dump angles, ensuring dump outs are cleaner and more effective
Optional Ramp Package
With an optional slide-in ramp package and a bed equipped with 4-D-rings for secure and stable anchoring, this model is ideal for hauling equipment.
