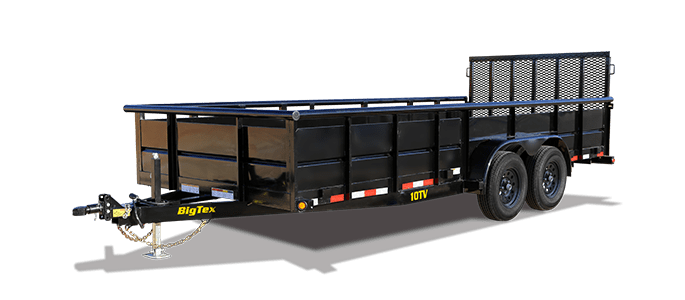

Tandem Axle Vanguard Trailer (10TV)
Rugged. Durable. Adaptable. Work harder and longer with the 83’’ wide 10TV Tandem Axle Vanguard Trailer, purpose-built for landscapers transporting heavy-duty lawn and garden equipment. Higher, v-crimped steel sides provide the strength you need to handle the day-to-day demands of your job while also securing and protecting cargo. No need to worry about cargo falling off during transportation. For the ultimate in versatility, it also includes an adjustable coupler that makes it a simple task to adjust to different hitch heights within a fleet of trucks—perfect for those running bigger landscaping operations.
Trailer Specifications
18' – 20''
Width
83"
Lengths
9,990 lbs
GVWR
7,515—7,640 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self Adjusting Brakes |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
2-5/16” Demco EZ Latch
Available Options |
| Safety Chains | 1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 8,000# Drop Leg, Set-Back Jack (Bolted On) |
| Frame | 5" x 3" x 1/4" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 72" 16 Ga. Tear Drop Fender |
| Ramps |
4' Heavy Duty Integrated Ramp Gate with Spring Assist
Available Options |
| Stake Pockets |
(4) Stake Pockets on Outside Frame
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST225/75R-15 Load Range D |
| Bolt Pattern | 6 Bolt |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
(4) Tie Down Loops Inside Bed
Available Options |
| Sides | 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
| Storage |
Available Options |
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 3" x 2" x 3/16" Angle |
Model Benefits
Vanguard Sides
Comes standard equipped with 29-3/8” tall sides and 24” V-crimped steel panels for maximum strength and durability to protect and contain cargo.
2-5/16" Adjustable Forged Coupler
The adjustable coupler provides ultimate versatility. This makes it easy to adjust to different hitch heights within a fleet of trucks or to change out to other coupler options.
4' Tall Rear Rampgate
The 10TV is equipped with a 4’ tall tubular rear rampgate. It is also available with an optional 5’ gate as well as a Heavy Duty Integrated Rampgate option.
