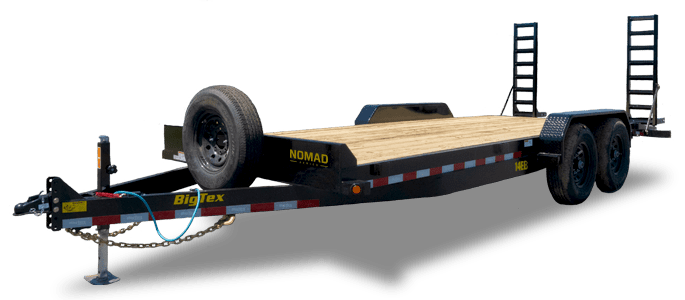

Tandem Axle Equipment Trailer (14EB)
Tested Big Tex Tough. Value Guaranteed. The 14EB from Big Tex Trailers is designed for those who seek reliability and value without sacrificing quality. This trailer features a 6" channel frame and tongue, ensuring exceptional strength and durability for any haul. With tandem 7,000# axles and forward self-adjusting brakes, the 14EB provides a stable and smooth towing experience. It offers an 83"-wide deck with a 32" dovetail, adjustable knee ramps, a fabricated front stop rail with an integrated spare tire mount, and six strategically placed stake pockets, making it a versatile and reliable partner for all your equipment hauling needs.
Trailer Specifications
18' – 22''
Width
83"
Lengths
14,000 lbs
GVWR
10,980—11,300 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
Adjustable 2-5/16" Coupler
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 7,000# Top Wind Drop Leg Jack |
| Frame | 6" Channel |
| Cross-Members | 3" Channel on 16" Centers |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor | Treated Pine Floor |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) |
| Ramps | 5' Knee Ramps |
| Dovetail | 32" Wood-Filled Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 8-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Color | Black |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Adjustable Coupler
The adjustable coupler allows the trailer to adapt to the height of your bumper hitch to help ensure optimal loading and ride angle.
Secure Your Cargo
Our Front Stop Rail keeps your equipment safely on the deck and prevents it from rolling off during transit. It also protects your tow vehicle from potential damage caused by shifting cargo.
Adjustable Knee Ramps
5' Knee Ramps make loading smooth as well as have adjustability for the equipment width, as well as ground conditions with the adjustable feet.
