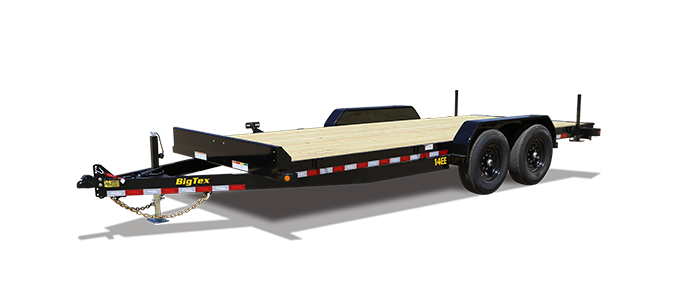

14K Tandem Axle Equipment Trailer (14EE)
“Everything you need and nothing you don’t” sometimes means the bare bones, but not here. The 14EE Tandem Axle Equipment Trailer is full of features you’ll use and a durable, heavy design to stand strong haul after haul. Its 5’ real slide-in ramps, stabilizer stands, and front stop rail makes loading in a breeze, and a 6” channel wrap tongue and Demco EZ Latch couple secures your cargo for the long haul. Armed with 7,000-pound axles, this stalwart is ready for any and all of your medium-duty tasks.
Trailer Specifications
18' – 20''
Width
83"
Lengths
14,000 lbs
GVWR
11,170—11,370 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 8,000# Set-Back, Drop-Leg Jack, Top Wind |
| Frame | 6" Channel |
| Cross-Members | 3" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor | Treated Pine Floor |
| Fenders | Double Broke Diamond Plate Fenders (Removable) |
| Ramps |
5' Rear Slide-In Ramps (with Stabilizer Stands)
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 8-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color |
Black
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Fast and Easy Hitching
The Demco EZ Latch Coupler is built to last and provides a fast and easy connection, and its automatic latching system securely locks when lowered—saving you both time and effort.
Use Every Last Bit of Space
As you load in your equipment, you can confidently go all the way to the front with a fabricated front stop rail. It’ll prevent cargo from sliding off, protect your vehicle from damage, AND includes a spare tire mount!
Convenient Loading With Optional Knee Ramps
With a convenient height and a fold-up functionality, our stand-up knee ramps make it easy to load vehicles and equipment onto your trailer, and they don’t get in the way.
