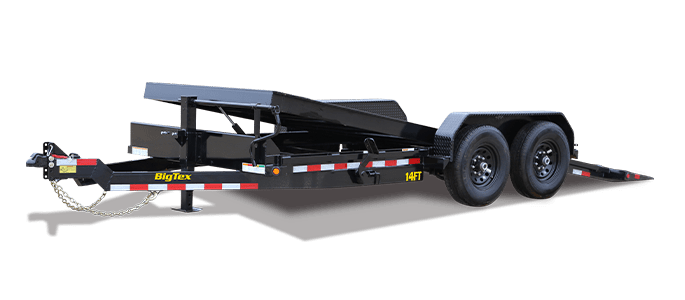

Heavy Duty Full Tilt Bed Equipment Trailer (14FT)
Make hauling light and medium duty equipment easy with our 14FT Heavy Duty Full Tilt Bed Equipment Trailer. Featuring a smooth hydraulic dampening system, an accessible 12 degree loading angle, and a slick, high traction rear knife edge, it has all the tools you need for a seamless hauling experience. And it’s built to last, with a 6” channel frame and two 7,000-pound axles, giving you a powerful combination of strength and stability.
Trailer Specifications
16 – 20''
Width
83"
Lengths
14,000 lbs
GVWR
10,510—10,910 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, 4" Drop-Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
Adjustable 2-5/16” Demco EZ Latch
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Drop-Leg Jack (Side Wind) |
| Frame | 6" Channel |
| Cross-Members | 3" Channel, 3" Square Tube |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8 x 6.5 |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tilt Deck Dimensions | 75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge |
| Tilt Deck Operation | Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism |
| Rubrail | Rub Rail Along Both Sides |
| Tie-Downs |
(6) 5/8" D-Rings
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger |
| Tilt Deck Angle | 12° |
Model Benefits
Rear Knife Edge
Tow a wide variety of equipment and small vehicles with the versatile 1/4" diamond plate rear knife edge.
Heavy Duty Diamond Plate Steel Fenders
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
