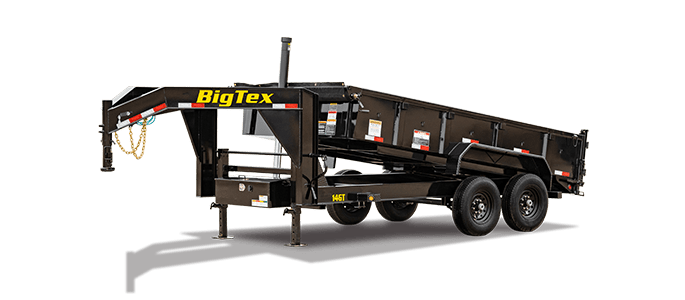

Heavy Duty Telescopic Gooseneck Dump (14GT)
Delivering rock-solid hauling performance for professionals in construction and landscaping, the 14GT Heavy Duty Telescopic Gooseneck Dump is built from the ground up to offer superior (and smoother) lift for any load. How? With its heavy-duty gooseneck and 12-ton, 3-stage telescopic hydraulic cylinder, that’s how. This trailer handles large, bulky cargo and debris—even uneven or loose materials—with ease, thanks to its advanced engineering and design. A feature-packed dump box comes loaded with an integrated crank-style tarp shroud and tarp, D-ring tie downs, and a rear combo gate to make sure heavy-duty haulers are equipped for whatever the workday brings.
Trailer Specifications
14' – 16''
Width
83"
Lengths
15,900 lbs
GVWR
10,790—11,250 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Available Options |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 10" I-Beam Neck |
| Coupler | Round Adjustable Pin 2-5/16” Gooseneck Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |
Dual 12,000# Drop-Leg Jack (Side Wind)
Available Options |
| Frame | 8" I-Beam (13#) |
| Cross-Members | 3" Channel on 16" Centers |
| Floor |
10 Gauge Smooth Steel
Available Options |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke |
| Ramps |
Not Included
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment|Along Sides and Rear for Cargo Control |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Deck On Neck |
Not Included
Available Options |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides and rear for Cargo Control |
| Power |
Power Up/Gravity Down Movement
Available Options |
| Ram | 12-Ton 3- Stage Telescopic Cylinder |
| Sides |
24" Tall (10 Ga) with formed Channel Supports
Available Options |
| Stabilizers | Rear Stabilizer Stands |
| Steps | Convenient Side-Step to Access Top Rail |
| Storage | Lockable Pump and Battery Box mounted between front Jacks |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | 3"x 2" Rectangular Tubing |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
Model Benefits
Adaptable Dumping and Loading/Unloading
Built standard with rear combo gates, making loading and dumping an easier task.
Equipment Ready
Comes standard with 4 D-rings to secure equipment and available ramps, ready to get your heavy equipment to the big job.
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
More Accessible
This model come standard with all the essentials, including a 12K Jack, Side Steps, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates, giving you a well-rounded hauling experience.
12-Ton 3-Stage Electric/Hydraulic Cylinder Lift
This telescopic hoist cylinder creates the leverage needed to provide you with a smoother, more effective lift without having to worry about leveling the load.
