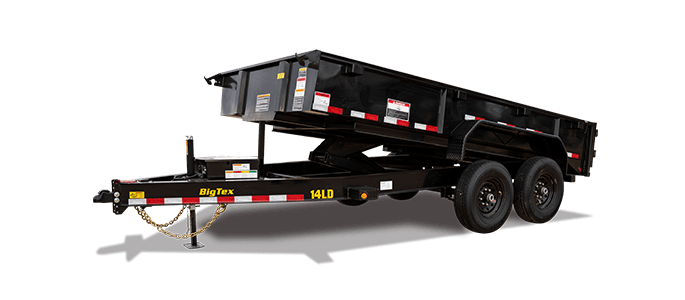

General Duty Low Profile Dump (14LD)
Built to get the job done and not to show off, the 14LD Low Profile Dump is a no frills trailer—meaning you don’t have to pay for features and optional equipment that you may not need for the work you do. Engineered to perform in the toughest environments, the 14LD is a durable trailer with the strength and versatility to transport and dump a huge variety of loads. And its low profile design makes it easy to load and unload materials or equipment. Built like you, this hardworking dump trailer gets the job done without breaking the bank.
Trailer Specifications
14''
Width
83"
Lengths
14,000 lbs
GVWR
10,445 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 8" Seamless I-Beam Integrated w/ Frame (10#) |
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 8,000# Top Wind Drop Leg |
| Frame | 8" Seamless I-Beam (10#) |
| Cross-Members | 3" Channel |
| Floor | 1/8" Smooth Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke |
| Ramps |
Rear Ramp Pockets (Ramps not Included)
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 8-Lug |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment|Along Sides and Rear for Cargo Control |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Double Rear Doors |
| J-Hooks | Along sides and rear for Cargo Control |
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump
Available Options |
| Ram | Self-Contained Scissor |
| Sides | 20" Tall (12 Ga) with formed Channel Supports |
| Stabilizers |
Not Included
Available Options |
| Steps | Convenient Side-Step to Access Top Rail |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp |
Tarp Mounting Brackets on Front of Bed
Available Options |
| Top Rail | 2"x2" Rectangular Tubing |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
Model Benefits
Heavy Duty Diamond Plate Steel Fenders
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.
Equipment Ready
Comes standard with 4 D-rings to secure equipment and available ramps, ready to get your heavy equipment to the big job.
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
8” Seamless I-Beam Frame & Tongue
Seamless tongue integration provides additional strength and durability to a fully capable I-Beam frame design—all with no cuts or fishplates.
