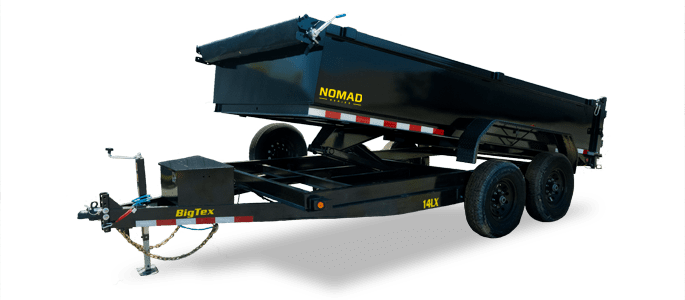

Channel Tandem Axle Dump Trailer (14LX)
Tested Big Tex Tough. Value Guaranteed. The 14LX offers unbeatable value without sacrificing quality. Designed with a robust 6-inch channel frame and tongue, it ensures exceptional strength and durability. Its affordable price point includes essential features such as a hydraulic scissor lift system with power up, power down, and gravity down capabilities, forward self-adjusting brakes, and a heavy-duty adjustable coupler. Perfect for hauling both equipment and loose materials, the 14LX guarantees reliable performance for the toughest jobs. Discover the value-driven 14LX and experience premium quality at an economical price.
Trailer Specifications
12' – 14''
Width
83"
Lengths
14,000 lbs
GVWR
10,340—10,570 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tongue | 6" Channel |
| Coupler |
Adjustable 2-5/16" Coupler
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 7,000# Top Wind Drop Leg Jack |
| Frame | 6" Channel |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 10 Gauge Smooth Steel |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke |
| Ramps | 6.5' Slide in Ramps with Integrated Ramp Door |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/80 R-16 Load Range-E 10 Ply Radial Tires |
| Bolt Pattern | 6 Bolt |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment |
| Break-Away Kit | Complete System with Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along Rear for Cargo Control |
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump
Available Options |
| Ram | Self-Contained Scissor |
| Sides |
24" Tall (10 Ga) with formed Channel Supports
Available Options |
| Stabilizers | Rear Stabilizer Stands |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | 3"x 2" Rectangular Tubing |
Model Benefits
Power Up/Power Down & Gravity Down
Equipped with a Hydraulic Scissor Lift System featuring power up/power down and gravity down capabilities, this trailer achieves over 20% more cycles compared to traditional power up/power down systems.
Equipment Ready-Design
This model is standard equipped with slide in ramps, rear stabilizers and D-rings for loading and hauling your equipment.
Feature Packed
These models come standard with all the essentials, including a 7K Jack, Rear Stabilizer Jacks, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates.
Also Available With 4' Sides
Do you need a higher-capacity dump box for those big jobs? The 14LX is also available with 4-foot-high sides. Contact your local Big Tex Trailers dealer today for more details!
