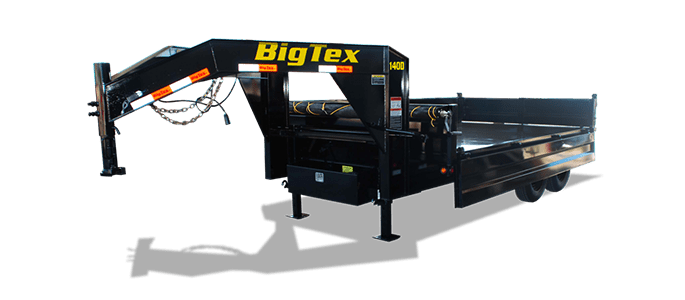

Heavy Duty Over The Axle Gooseneck Dump (14OD-GN)
Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that you’re prepared to take on whatever type of load comes your way. Available in either gooseneck or bumper pull configurations, its full 96"-wide body is both strong and spacious—perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.
Trailer Specifications
14''
Width
96"
Lengths
14,000 lbs
GVWR
6 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 12" I-Beam, 14# |
| Coupler | Round Adjustable Pin 2-5/16” Gooseneck Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |
Dual 12,000# Drop-Leg Jack (Side Wind)
Available Options |
| Frame | 12" I-Beam, 14# |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 10 Gauge Smooth Steel |
| Ramps | 7' Rear Slide-In Ramps |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment|Along Sides and Rear for Cargo Control |
| Break-Away Kit | Complete System with Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides and rear for Cargo Control |
| Power |
Power Up/Power Down Movement
Available Options |
| Ram | Self-Contained Single Cylinder Lift |
| Sides | 18" Tall, Drop-Down Sides (12 Gauge) |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Top Rail | 2" x 2" Square Tubing |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Rear Combo Gate
A multi-functional rear gate with both barn doors and spreader gate that makes it easy to load, unload, or spread
Strength and Versatility
This model has a 2" square tubing top rail for added strength, to complement the stake pockets for added cargo control and ability to support aftermarket side extensions.
10-Gauge Steel Floor
Built for long-lasting durability that’s easy to maintain, its heavy floor can take a beating and keep going
Standard 7' Ramps
Comes standard with 4 D-rings to secure equipment and ramps, ready to get your heavy equipment to the big job.
18" Tall, 12-Gauge Fold-Down Side Panels
Versatile fold-down side panels that enable easier loading and unloading of cargo or aggregates.
