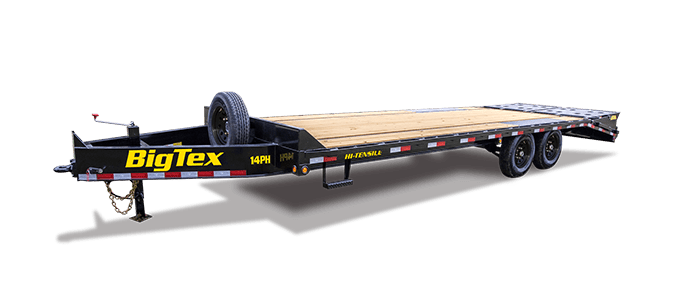

Single Wheel Tandem Axle Pintle (14PH)
Is your vehicle equipped with a pintle hitch to take on heavy-duty towing jobs? Built for rugged and off-road conditions, the sturdy and reliable 14PH Single Wheel Tandem Axle Pintle Trailer is made for your needs. Perfect for agricultural and industrial operations, the 14PH delivers exceptional performance at an economical cost. It has standard features such as two 7K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. Hauling everything from construction materials and machinery to large hay bales, this is a trailer that delivers a huge bang for your buck.
Trailer Specifications
25' – 30''
Width
102"
Lengths
15,900 lbs
GVWR
10,820—11,320 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, with Quick-Lubricating Hubs |
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles
Available Options |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
3" ID Pintle Ring
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |
12,000# Drop-Leg Jack (Top Wind)
Available Options |
| Frame | 12" I-Beam, 14# |
| Cross-Members | 3" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Ramps |
5' Double Hinged, Spring Assisted Flip-Over Ramps
Available Options |
| Dovetail | 5' Cleated Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire | ST235/80 R-16 Load Range E Radial Tire |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Rubrail | 3/8” Heavy Duty Rub Rail |
| Tie-Downs |
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Storage |
Storage Tray in Tongue
Available Options |
| Cargo Winch |
Available Options |
| Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets
Available Options |
| Side Rail | 5" Channel |
| Steps & Handles | (2) Side Bed Steps |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Robust Adjustable Pintle Ring
A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.
Comprehensive Load Securement
A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.
Optional Powerhouse Mega Ramps
Optimize your loading experience with heavy-duty, extra-wide ramps, designed to handle the demands of loading various types of equipment with ease.
