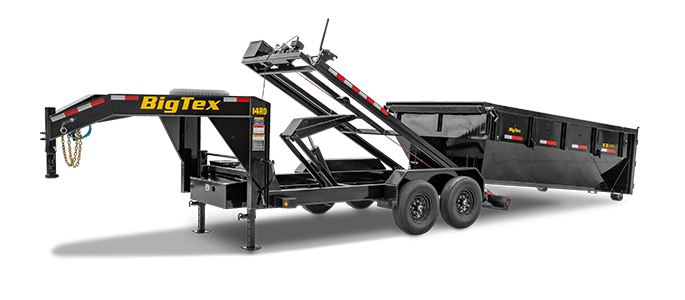

Roll-Off Gooseneck Dump Trailer (Bin Sold Separately) (14RD)
Gooseneck configured for superior stability and carrying weight, the 14RD Roll-Off Gooseneck Dump Trailer features a 15,900 lbs. G.V.W.R. to meet the demands of the construction, junk removal, and the dumpster rental business. Built to service multiple job sites with a single trailer, it’s designed with professional-grade parts to hold up against the challenges of day-to-day use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the gooseneck configured 14RD gets the job done when the going gets tough.
Trailer Specifications
– 14''
Width
, 83"
Lengths
15,900 lbs
GVWR
9,860 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler | Round Adjustable Pin 2-5/16” Gooseneck Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Drop-Leg Jack (Side Wind) |
| Frame | 8" I-Beam (10#) |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 10 Gauge Smooth Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment|Along Sides and Rear for Cargo Control |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Battery | 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch |
| Charger | (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch |
| Gate | Barn Doors |
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump
Available Options |
| Ram | Self-Contained Scissor |
| Sides | 48" Tall (12 Ga) with formed Channel Supports |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp | Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders |
| Top Rail | 4"x 3" Rectangular Tubing |
| Battery Box | Tilt Bed mounted Battery Box for Independently wired Winch Power System |
| Rollers | Greaseable Rollers |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
| Winch | Specially Designed High Duty Cycle 15K Winch |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
The Right Tool for the Job
Outfitted with a Heavy Duty Cycle COMEUP Winch that’s designed for longevity and optimized for multiple cycles each and every day.
Heavy-Duty Protection
These dump bins are built tough with durable 10-gauge steel and 4' side height to keep loose materials off the road and in the bin.
Get More Done
You can't be everywhere at once—but your dump bins can. Quickly and easily service multiple job sites by adding additional dump bins to your fleet anytime.
