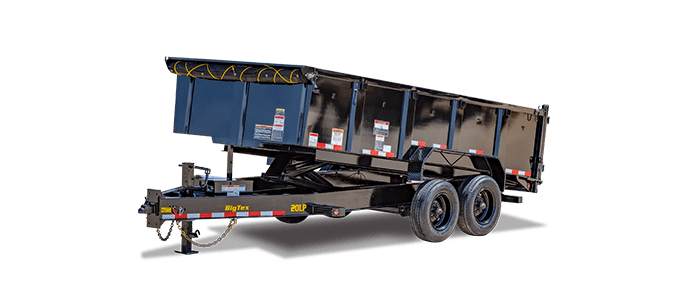

Mega Duty Tandem Axle Dump (20LP)
The biggest jobs demand the toughest trailers. With a mega-duty GVWR of 20,000 lbs, the 20LP Mega Duty Tandem Axle Dump has the strength, durability, and power required to perform in the most challenging industries. Equipped with 10,000 lbs. Torsion Axles with Super Single Wheels for heavy-weight hauling tasks, this trailer delivers peak performance when the going gets tough. 7-Gauge steel floor? Yup. 10’’ I-beam frame? Of course. 3’ high sides? Absolutely. And that all makes the 20LP one of the strongest single wheel tandem axle dump trailers on the market. Better yet, a low-profile design and optional slide-in ramps make it easier to use when loading and unloading heavy equipment, and it’s fully loaded with extras such as a tarp kit, rear stabilizer stands, and scissor hoist to help you tackle any job.
Trailer Specifications
16''
Width
83"
Lengths
20,000 lbs
GVWR
13,870 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 10,000# cambered axles with Oil Bath and Valcrum Caps |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Torsion Axles |
| Tongue | 12" I-Beam, 14# |
| Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Top Wind |
| Frame | 10" I-Beam |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 7 Gauge Smooth Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke |
| Ramps |
7' Rear Slide-In Ramps
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/75 R-17.5 Load Range J Radial Tires |
| Bolt Pattern | 8-Lug |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire | Spare Tire & Wheel (ST235/75 R-17.5 LR-J) |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment|Along Sides and Rear for Cargo Control |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides and rear for Cargo Control |
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump
Available Options |
| Ram | Self-Contained Scissor |
| Sides |
36" Tall (10 Ga) with formed Channel Supports
Available Options |
| Stabilizers | Rear Stabilizer Stands |
| Storage | Lockable Pump and Battery Box mounted between front Jacks |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | 3"x 2" Rectangular Tubing |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
Model Benefits
Equipment Ready
Comes standard with 4 D-rings to secure equipment and available ramps, ready to get your heavy equipment to the big job.
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
More Accessible
This model come standard with all the essentials, including a 12K Jack, Side Steps, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates, giving you a well-rounded hauling experience.
Rear Combo Gate
A multi-functional rear gate with both barn doors and spreader gate that makes it easy to load, unload, or spread
36” Sides with 10-Gauge Walls & a 7-Gauge Floor
Heavy-duty, steel sides and a 7-Gauge steel floor support your haul, keeping cargo contained and secured for the journey ahead.
