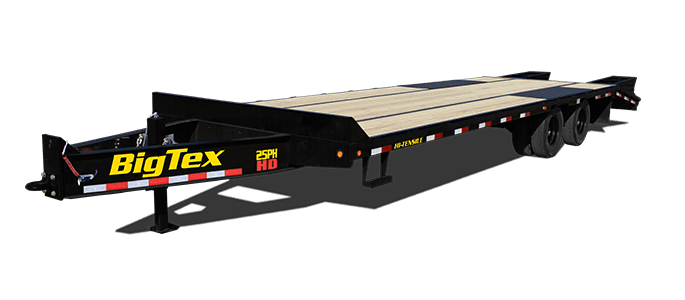

Heavy Duty Tandem Dual Wheel Pintle (25PH)
Putting your nose to the grindstone? Need a trailer that does too? The hardworking 25PH Heavy Duty Tandem Dual Axle Pintle Trailer is here to stand by your side, hauling heavy-duty loads in the most rugged and challenging conditions. This powerful trailer has it all; two 12K axles, a low-profile bed with a pierced-beam frame, and heavy-duty adjustable suspension. It’s a robust, pintle hitch trailer that gets the heavy work done in agricultural, construction, and industrial settings. Ready to take on the heaviest of loads? This trailer is—and so will you.
Trailer Specifications
25' – 30''
Width
102"
Lengths
25,900 lbs
GVWR
19,600—20,100 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 12,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps |
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles
Available Options |
| Suspension | Heavy-Duty 30,000#, Adjustable |
| Coupler | 3" ID Pintle Ring |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |
12,000# Drop-Leg Jack (Top Wind)
Available Options |
| Frame | 12" I-Beam |
| Cross-Members | 3" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Ramps |
5' Double Hinged, Spring Assisted Flip-Over Ramps
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire | ST235/80 R-16 Load Range E Radial Tire |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Rubrail | 3/8” Heavy Duty Rub Rail |
| Tie-Downs |
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Mudflaps | Standard |
| Storage |
Available Options |
| Cargo Winch |
Available Options |
| Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets
Available Options |
| Side Rail | 8" Channel |
| Steps & Handles | (2) Side Bed Steps |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Comprehensive Load Securement
A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.
Optional Powerhouse Mega Ramps
Optimize your loading experience with heavy-duty, extra-wide ramps, designed to handle the demands of loading various types of equipment with ease.
Heavy-Duty Adjustable Suspension
Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.
