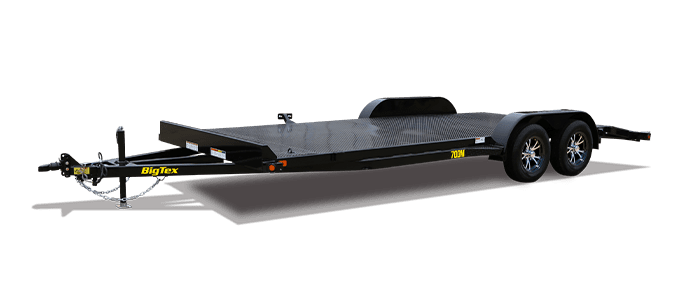

Tandem Axle Diamond Back Car Hauler (70DM)
Our top-of-the-line, premier car hauler, the 70DM Diamond Back Car Hauler delivers the hauling capabilities you demand with the eye-catching looks you’ve always wanted. Aluminum wheels, steel floor, and diamond-plate rear slide-out ramps make the 70DM both easy to use and easy to look at. Plus, its box tubing frame gives the trailer added strength and durability. With both looks and hauling prowess, the 70DM is the best of both worlds.
Trailer Specifications
18' – 20''
Width
83"
Lengths
7,000 lbs
GVWR
4,875—5,030 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes |
Forward Self Adjusting Electric Brake on Front Axle
Available Options |
| Suspension | Multi-Leaf Spring w/ Equalizer|4” x 2”x.188" Steel Tubing |
| Coupler |
Adjustable, 7,000#, 2” Forged Coupler
Available Options |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each)|4” x 2”x .188" Angle |
| Jack | 2,000# Top Wind, Set-Back Jack |
| Cross-Members | 3” x 2” x 3/16” Angle|5’ x 20” Formed Diamond Plate Rear Slide-In Ramps |
| Front Stop Rail |
3/16" Fabricated Front Stop Rail
Available Options |
| Floor | 1/8" Diamond Plate |
| Dovetail | Integrated Dovetail |
| Stake Pockets |
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 Bolt |
| Wheels | Aluminum Wheels |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
(4) Recessed D-Rings
Available Options |
| Storage |
Available Options |
| Front Rock Shield | Front Rockshield (Aluminum Tread Brite) |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Built for the long haul
Stylish and anti-slip, 1/8” diamond plate flooring guarantees maximum durability while hauling vehicles and other cargo.
Easy and Quick Loading
Comes standard with 20” formed diamond-plate rear slide-in ramps for faster and smoother loading.
