Tube-Top Utility Trailers / 70PI

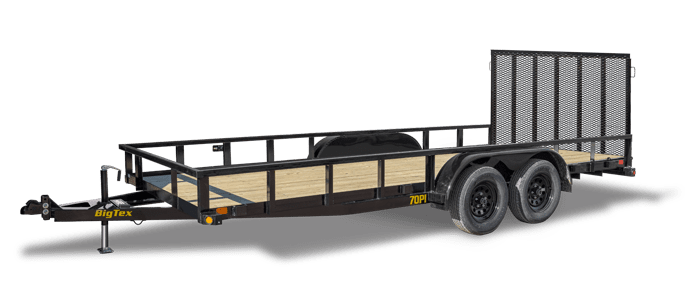

Tandem Axle Pipe Utility Trailer (70PI)

When it comes to hauling light-duty equipment on the farm or ranch, there’s nothing more versatile than the 70PI-X Tandem Axle Pipe Top Utility Trailer. Coming standard with an extra wide 83’’ wide deck, this trailer is built to transport small equipment and other loads for agricultural applications. It’s sturdy. It’s durable. It’s dependable. It’s everything you need in a cost-effective—yet adaptable—utility trailer that gets the job done from sunrise till sunset.

View Inventory Download Brochure

Trailer Specifications

14' – 20'

Width

83"

Lengths

7,000 lbs

GVWR

4,980—5,220 lbs

Load Capacity

Features & Options

Standard Feature Click + for Options
Axles 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Electric Brake on Front Axle

Available Options

Electric Brakes on 2nd Axle

Suspension Multi-Leaf Spring w/ Equalizer
Coupler Adjustable 2-5/16” Demco EZ Latch

Available Options

2-5/16” Forged Coupler 2-5/16” Stamped Coupler

Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack with Removable Sand Foot

Available Options

8,000# Drop-Leg Jack 2,000# Fold-Up Jack

Frame 4" x 3" x 1/4" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine Floor

Available Options

Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders 9" x 72" Rolled Formed w/ Back
Ramps 4' Tall 3-Way Ramp Gate w/ Coil Spring Assist

Available Options

4' Slide-In Angle Ramps 4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist 5' Stand Up Ramps 4' Heavy Duty Integrated Ramp Gate w/ Coil Spring

Stake Pockets

Available Options

Additional Stake Pockets (Each)

Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Mount

Available Options

Side Spare Tire Mount

Spare Tire

Available Options

Spare Tire (ST205/75R-15 LR-C) Spare Tire (ST225/75R-15 LR-D)

Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Sides 17" Tall Open sides with 3"x 2” Angle uprights and 2" x 2" Square Tubing Top Rail

Available Options

2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)

Model Benefits

Effortless Maintenance

Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

Optional Rear Ramp Gate

Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

Your Haul, Secured

Safely and conveniently secure your cargo with four tie-down loops inside the bed.

Sturdy 2" x 2" Pipe Top Rail

Constructed from 2"x 2" square tubing, its pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
