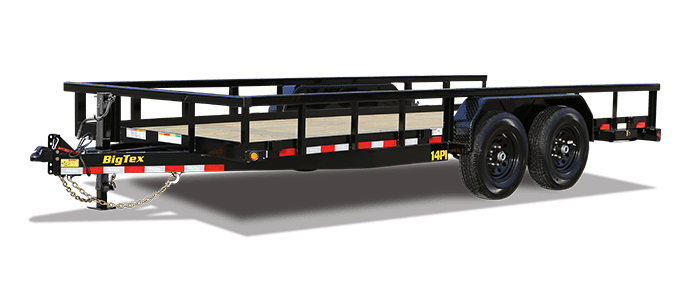

Heavy Duty Tandem Axle Pipe Top Utility Trailer (14PI)
Facing down heavy-duty, demanding, and challenging loads? Then it’s time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer—a heavy-duty pipe-top equipment trailer that’s specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, it’s a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
Trailer Specifications
16' – 20''
Width
83"
Lengths
14,000 lbs
GVWR
10,960—11,260 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Coupler |
Adjustable 2-5/16” Demco EZ Latch
Available Options |
| Safety Chains | 1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 8,000# Drop-Leg Jack (Side Wind) |
| Frame | 5" x 3" x 5/16" Angle |
| Cross-Members | 3" Channel on 16" Centers |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke |
| Ramps |
4' Slide in Channel Ramps
Available Options |
| Stake Pockets |
Outside Frame Stake Pockets
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires |
ST235/80 R-16 Load Range E
Available Options |
| Bolt Pattern | 8-Bolt |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
Available Options |
| Sides |
15" Tall Open sides with 3"x 2”x 3/16" Angle uprights and 3" x 3" Square Tubing Top Rail
Available Options |
| Storage |
Available Options |
Model Benefits
Fast and Easy Hitching
The Demco EZ Latch Coupler is built to last and provides a fast and easy connection, and its automatic latching system securely locks when lowered—saving you both time and effort.
Your Haul, Secured
Safely and conveniently secure your cargo with four tie-down loops inside the bed.
Sturdy 3" x 3" Pipe Top Rail
Constructed from 3" x 3" square tubing, its pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
Effortless Maintenance. Smoother Ride.
High-quality, industry-leading axles deliver a smooth, reliable ride, and both axles are equipped with self-adjusting brakes to make brake maintenance a breeze.
