Big Tex 10TV, Landscape, 83" x 20', 9.9K
Tandem Axle Vanguard Trailer
- New
MSRP
$11,299
Trailer World Price*
$9,419
Pay As Low As $244.21 / month
*Cash, cashiers checks, debit, wire, financing, and major credit cards accepted. Taxes and fees not included. 3% service fee on all credit card transactions.
Product Highlights
Year: 2026
Model: 10TV-20BK
Axle: 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
GVWR: 9990 lbs
Cargo Capacity: 7360 lbs
Hitch Type: Bumper Pull
Length: 20'
Deck Width: 83"
Ramps: 4' Heavy Duty Integrated Ramp Gate with Spring Assist
Color: Black
VIN: 424380
Jack: 8,000# Drop Leg, Set-Back Jack (Bolted On)
Tires: ST225/75R-15 Load Range D
CUSTOMIZE YOUR PAYMENT
| Feature | |
|---|---|
| Axle GAWR, lubrication, and Brakes and Quantity | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Bolt Pattern | 6 Bolt |
| Brakes | Forward Self Adjusting Brakes |
| Coupler | 2-5/16” Demco EZ Latch |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Color | Black |
| Length | 20' |
| Deck Width | 83" |
| Fenders | 9" x 72" 16 Ga. Tear Drop Fender |
| Floor | Treated Pine Floor |
| Frame | 5" x 3" x 1/4" Angle |
| GVWR | 9990 lbs |
| Jack | 8,000# Drop Leg, Set-Back Jack (Bolted On) |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Cargo Capacity | 7360 lbs |
| Paint Type | Professional Finish w/ Primer Standard |
| Ramps | 4' Heavy Duty Integrated Ramp Gate with Spring Assist |
| Sides | 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
| Stake Pockets | (4) Stake Pockets on Outside Frame |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tires | ST225/75R-15 Load Range D |
| Trailer Plug | 7-Way RV |
| Tie-Downs | (4) Tie Down Loops Inside Bed |
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 3" x 2" x 3/16" Angle |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
We know how important it is to safeguard your investment, which is why we provide a range of warranty options tailored to fit your needs. Discover more about our available warranty plans.
PRODUCT FEATURES
-
Vanguard Sides
Comes standard equipped with 29-3/8” tall sides and 24” V-crimped steel panels for maximum strength and durability to protect and contain cargo.
-

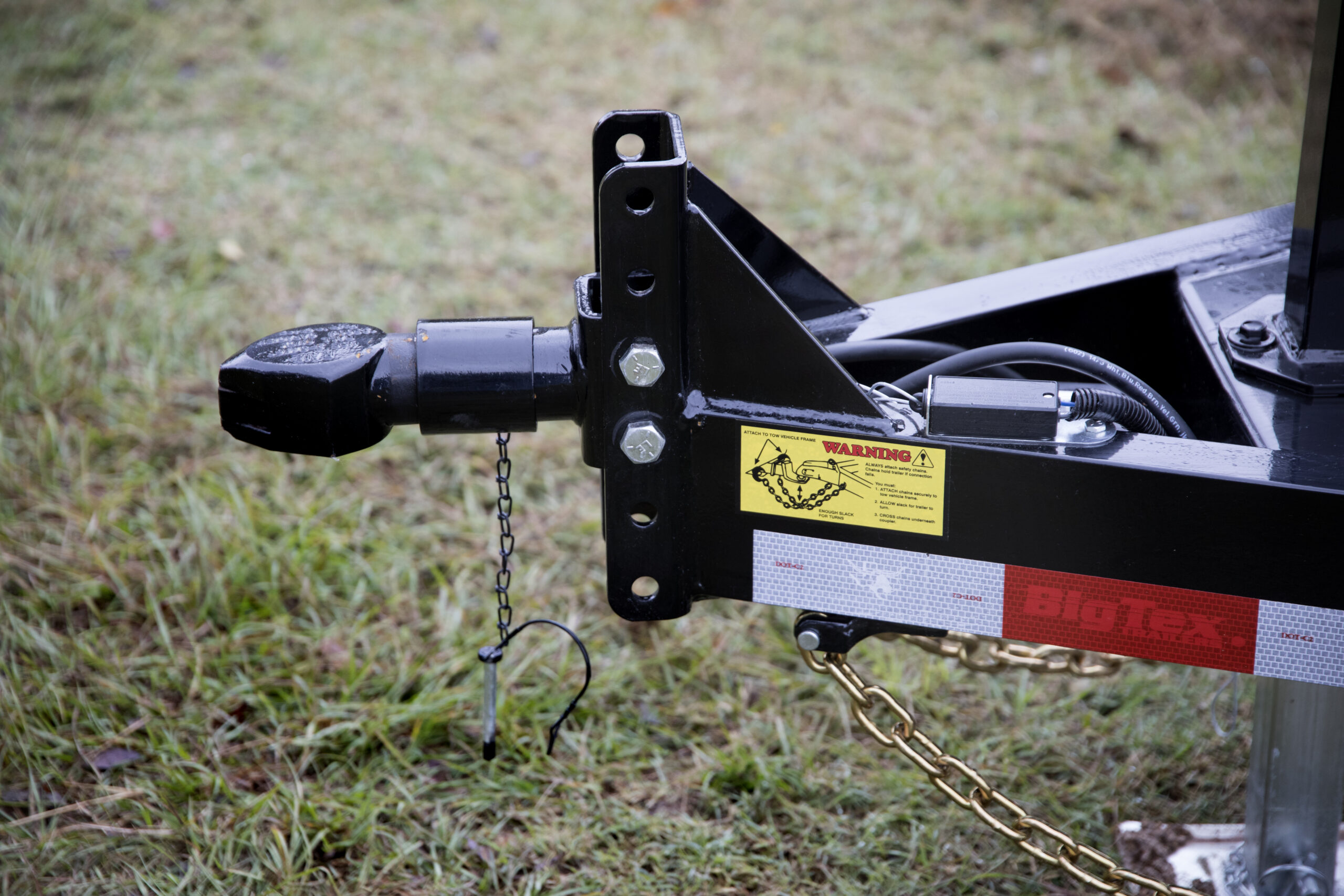

2-5/16" Adjustable Forged Coupler
The adjustable coupler provides ultimate versatility. This makes it easy to adjust to different hitch heights within a fleet of trucks or to change out to other coupler options.
-

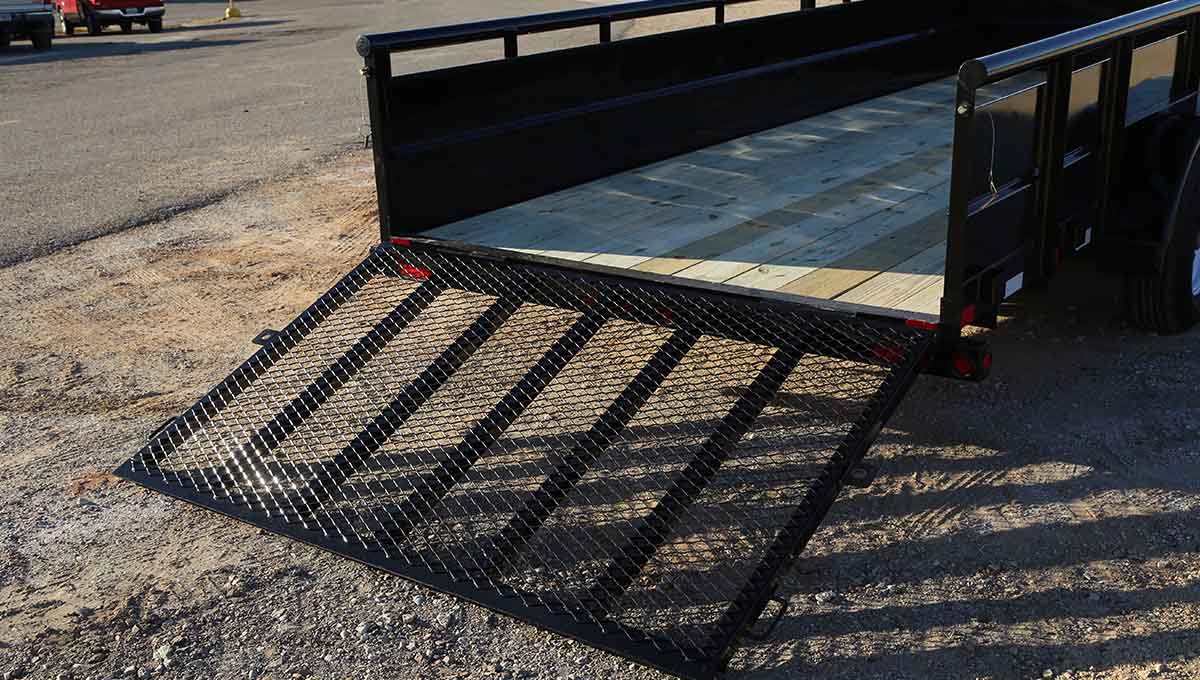

4' Tall Rear Rampgate
The 10TV is equipped with a 4’ tall tubular rear rampgate. It is also available with an optional 5’ gate as well as a Heavy Duty Integrated Rampgate option.
