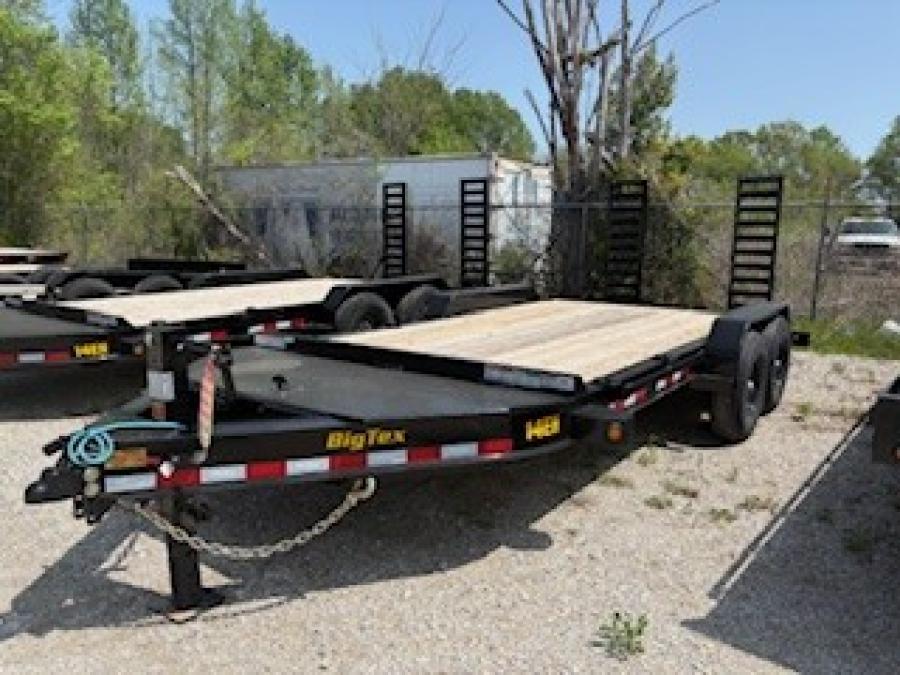

Big Tex 14EH, Equipment, 83" x 20', 15.4K, Dovetail, Mega Ramps, X-Series

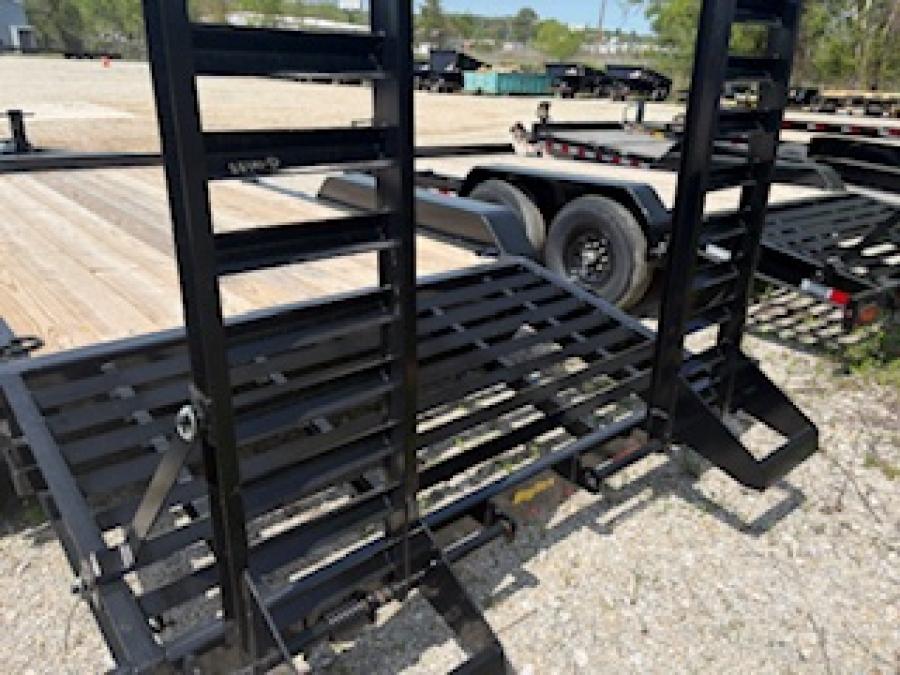

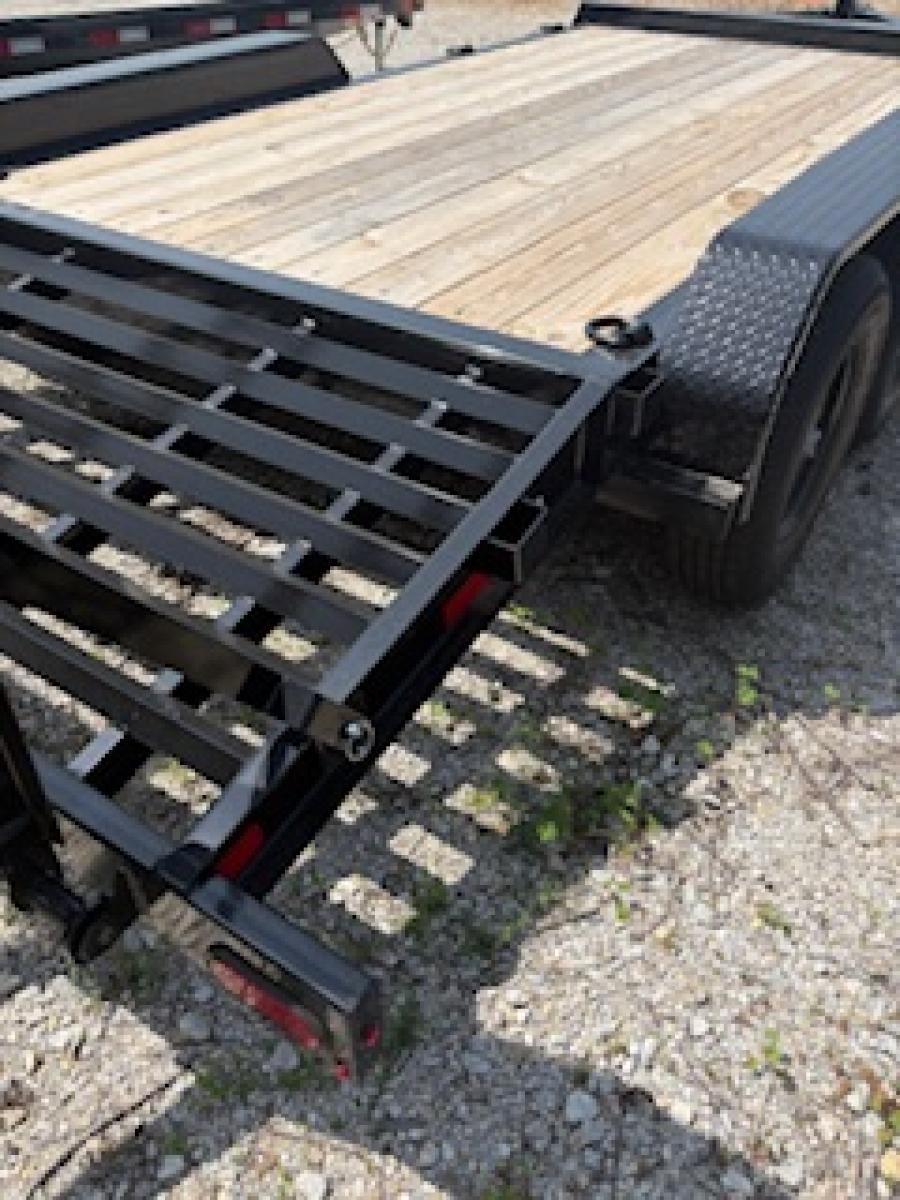

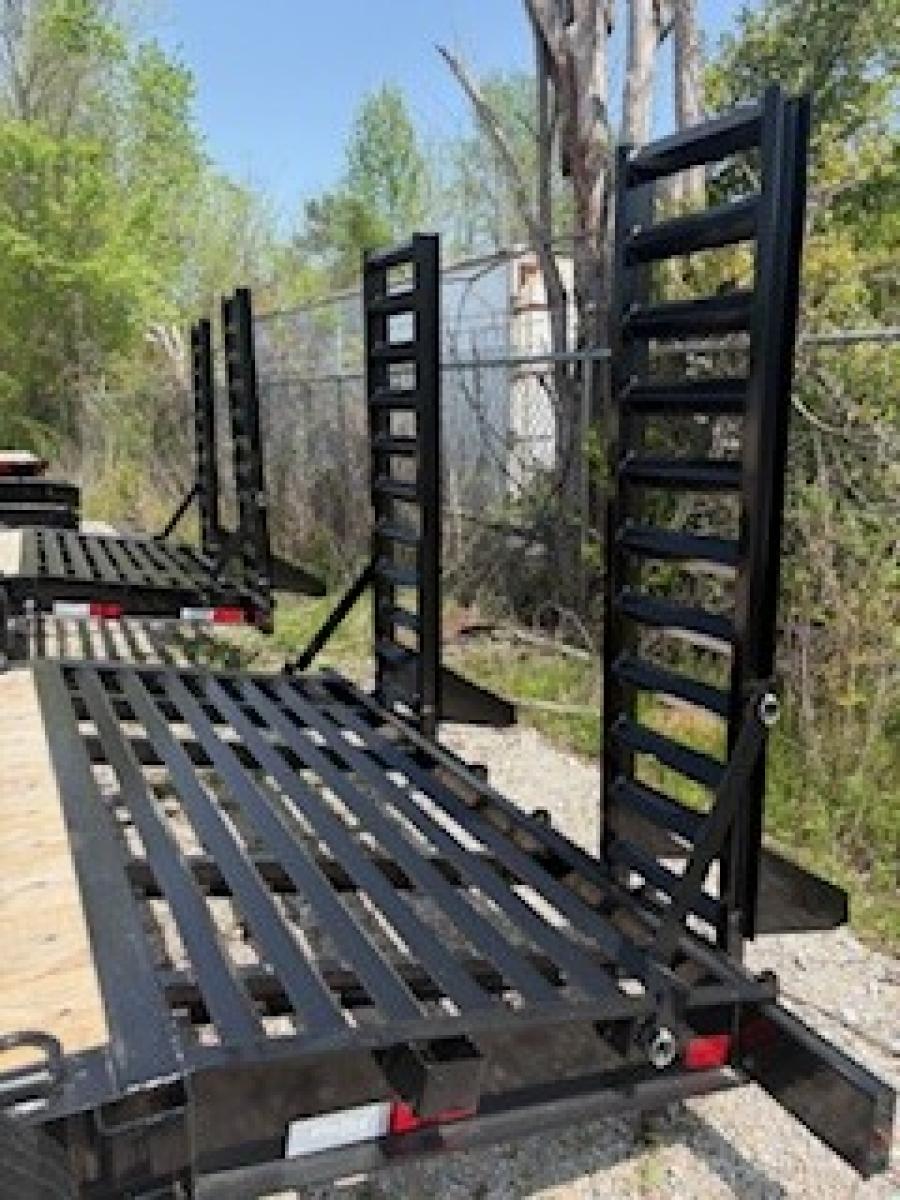

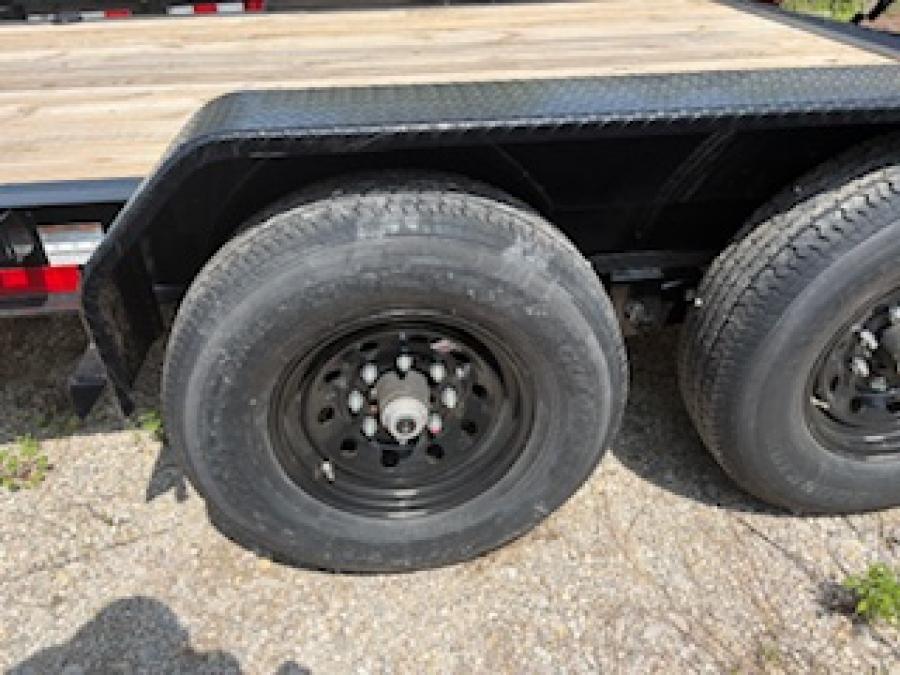

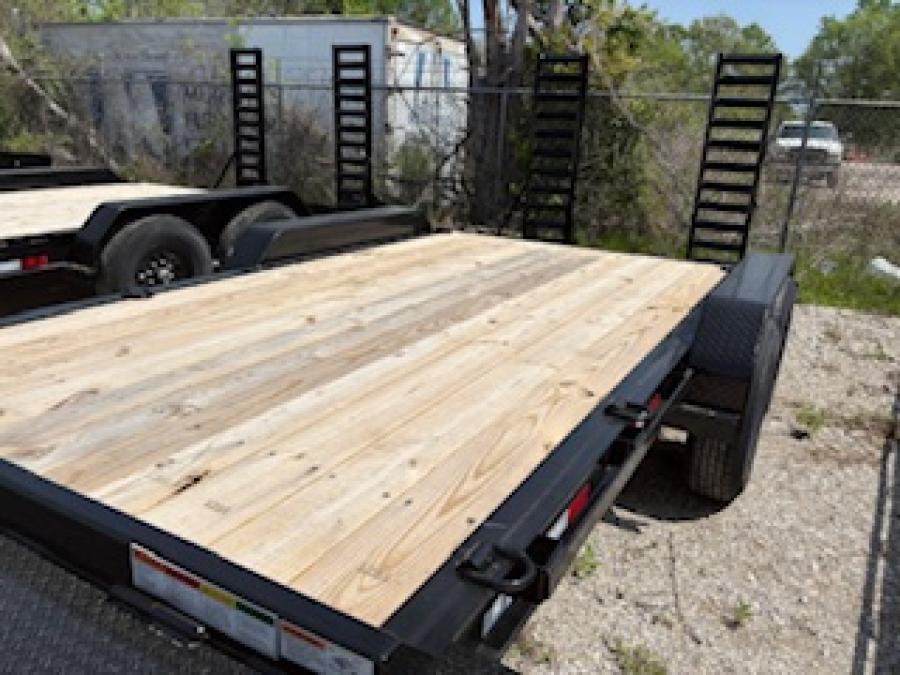

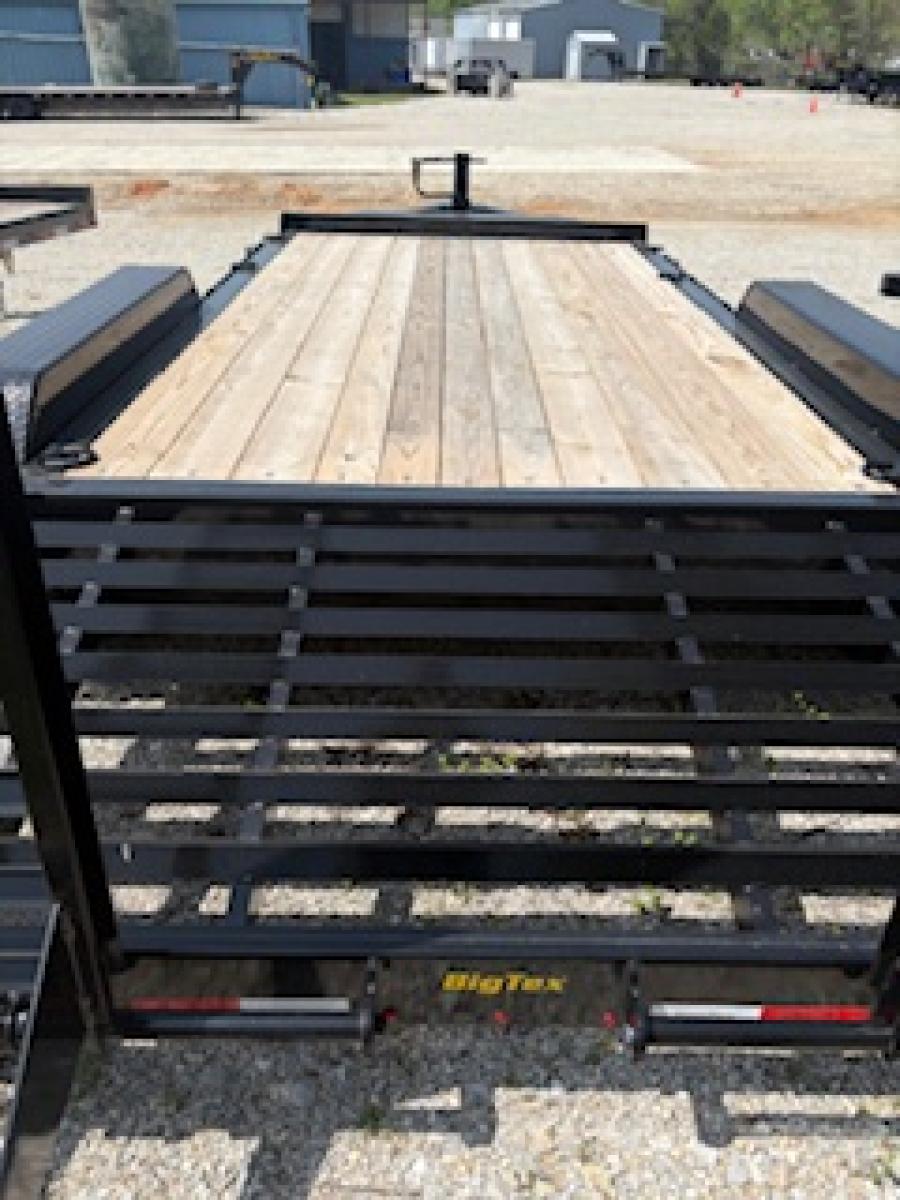

The trailer is equipped with two 7,000# Premium Cambered Axles with Quick-Lubricating Hubs, forward self-adjusting electric brakes on all hubs, and multi-leaf slipper spring suspension with an equalizer. It features an adjustable 2-5/16” Demco EZ Latch coupler, an adjustable pintle in place of the coupler, or an adjustable 2-5/16" Demco EZ Latch Gooseneck coupler, along with 3/8" Grade 70 safety chains with safety latch hooks. The 12,000# side wind drop-leg jack offers efficient lifting. The frame is made from 8" I-beam, with 3" channel cross-members spaced 16" apart, and a 3/16" fabricated front stop rail. The floor is treated pine, and the fenders are 9” x 72” 14-gauge diamond plate, double square broke, and removable. The trailer includes 5' tall, 16" spring-assisted stand-up ramps, a 40” cleated dovetail, and stake pockets along both sides (quantity varies by length). It has a 7-way RV trailer plug, LED DOT stop, tail, turn, and clearance lights, and a sealed, modular cold-weather wiring harness. The tires are ST235/80 R-16 Load Range E radial tires with an 8-lug bolt pattern. The trailer also features a front spare tire mount, rub rail along both sides, and six 5/8" D-rings for tie-downs. Additionally, it has a complete breakaway system with a zip breakaway cable. For storage, there is a lockable toolbox between risers on the gooseneck model or a mega-sized integrated tongue box on the bumper pull model. The paint color is black, and it includes convenient side steps to access the deck.
