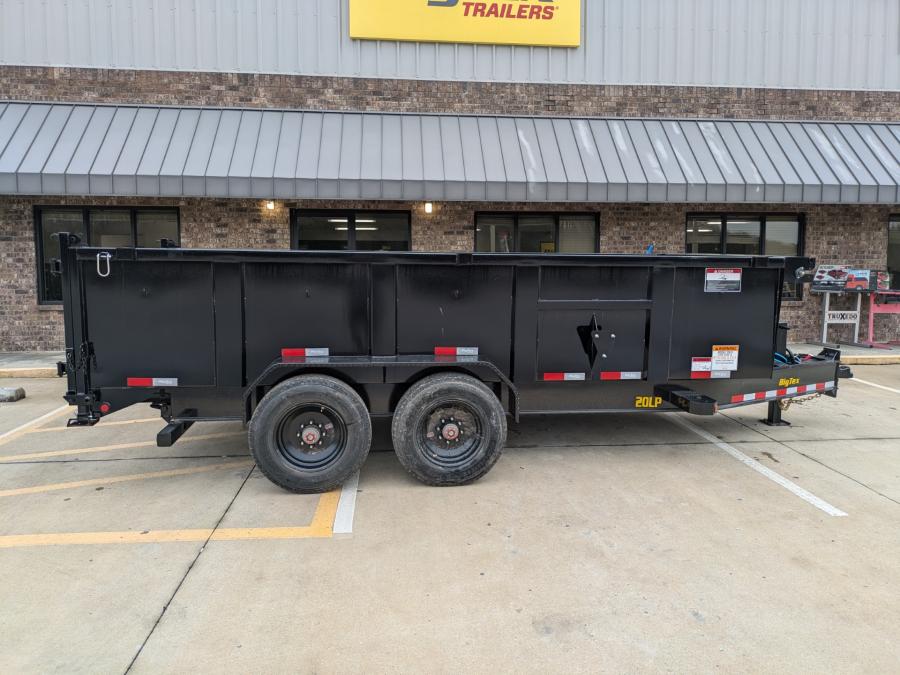

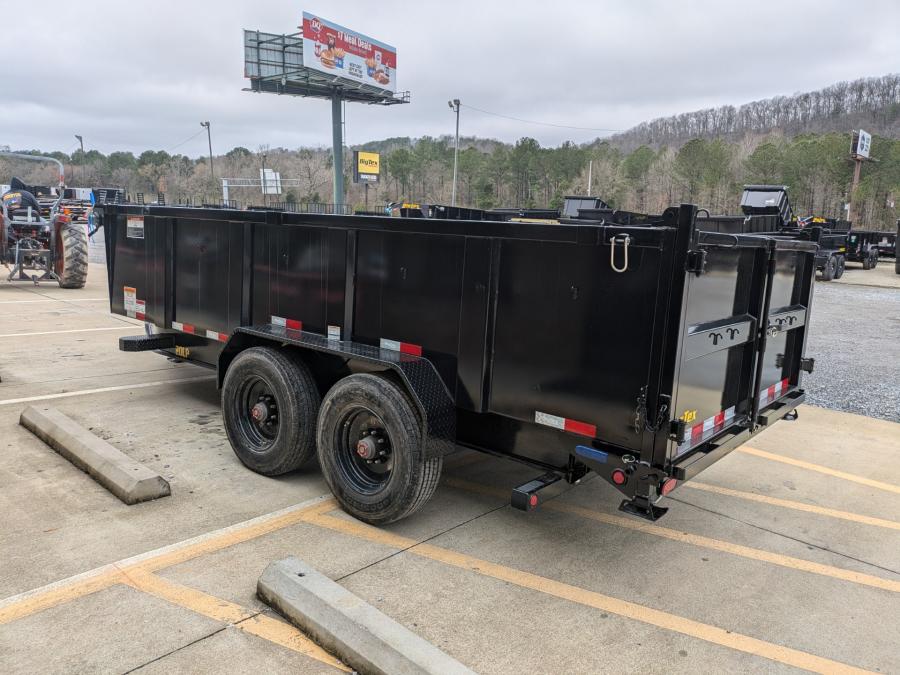

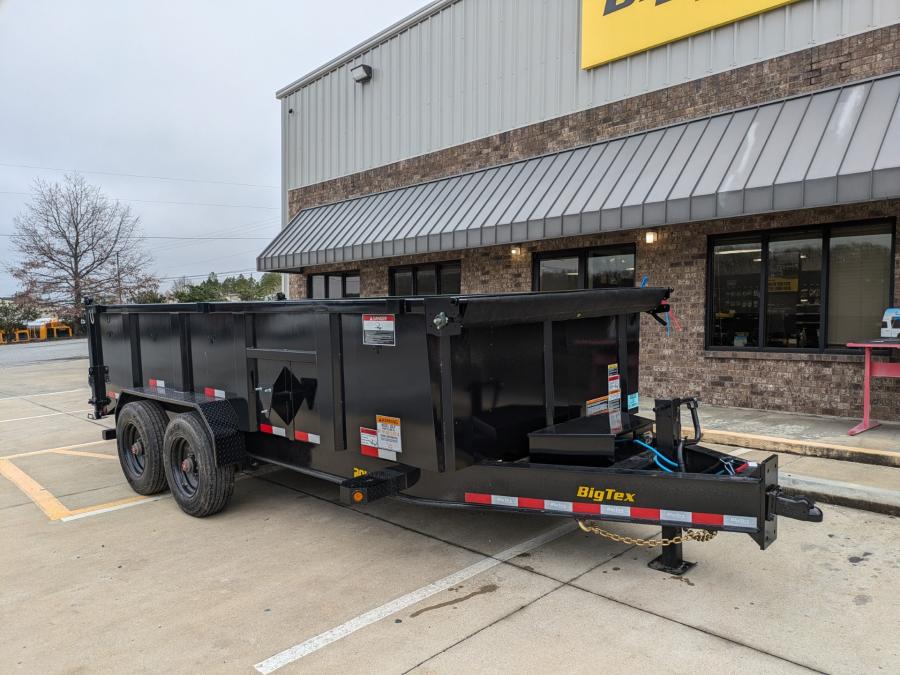

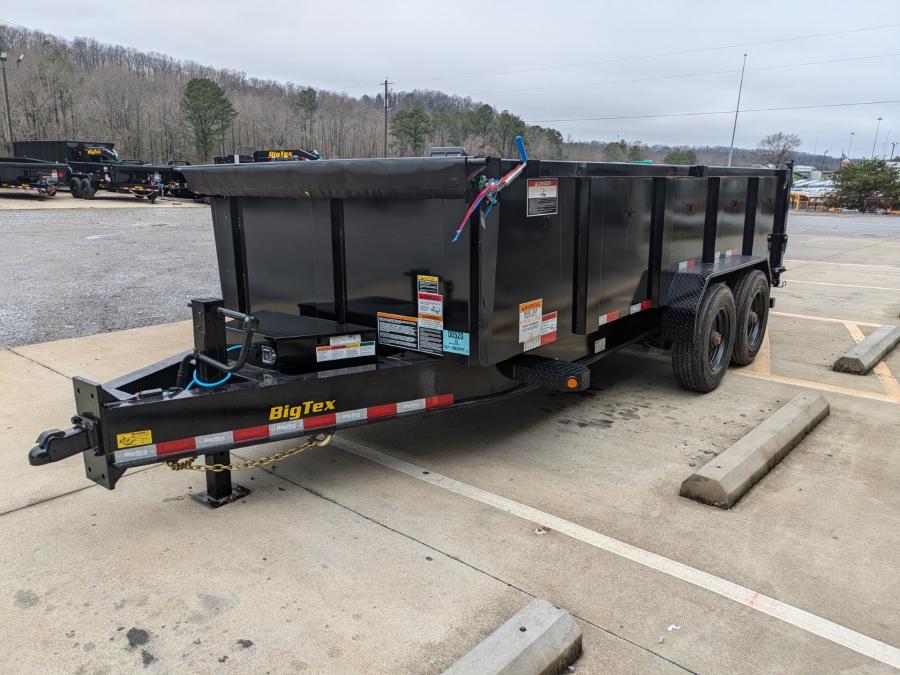

Big Tex 20LP, Dump, 83" x 16', 20K

Mega Duty Tandem Axle Dump

In Stock

List Price

$16,519

Cash Price*

$15,929

Pay As Low As $363.21 / month
*Cash, finance or wire transfer price.
Applicable taxes and fees not included

Call (936) 391-8777

Located at: 1809 Interstate 45 North, Madisonville, TX

Product Highlights

Year: 2025

Model: 20LP-16BK6SIRPD

Axle: 2 - 10,000# cambered axles with Oil Bath and Valcrum Caps

GVWR: 20000 lbs

Cargo Capacity: 13870 lbs

Ramps: 7' Rear Slide-In Ramps

Color: Black

VIN: 370586

CUSTOMIZE YOUR PAYMENT

Down Payment

Amount To Be Financed

Term (Loan Length)

APR

Monthly payment as low as

$363.21

Pre-qualify Apply Now

*Financing terms available may vary depending on applicant and/or guarantor credit profile(s) and additional approval conditions. Assets aged 10-15 years or more may require increased finance charges. Financing approval may require pledge of collateral as security. Applicant credit profile including FICO is used for credit review. Not all dealers offer financing. *Subject to credit approval by Synchrony Bank.

Adjustable 2-5/16" 21,000# Demco EZ Latch
10" I-Beam Frame w/ Integrated Tongue
12,000# Top Wind Drop-Leg Jack
Lockable Pump and Battery Box Mounted in Front of Bed
36" Tall, 10 Gauge Sides w/Formed Channel Supports
7 Gauge Steel Floor
Fully Formed Tarp Shroud on Front
Crank Style Roll Tarp- Standard Equipped
Tarp Rod Included to Secure Tarp on Rear
J-Hooks on Sides and Rear for Tarp Control
Stake pockets Along Sides
Self-Contained Electric/Hydraulic Scissor Hoist
Power Up/Power Down Hydraulic Pump
12V Interstate Deep Cycle Battery
110V On-Board Battery Charger (5 Amp)
Cambered Torsion Axles w/ Oil Bath Hubs
Forward Self Adjusting Electric Brakes on All Hubs
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed, Modular Wiring Harness
Complete Break-A-Way System
Zip Breakaway Cable
Diamond Plate Steel Fenders
3" x 2" Rectangular Tubing Top Rail on Dump Bed
Combo Gate (Barn Doors and Spreader Gate)
Rear Stabilizer Stands
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Spare Tire Mount
Radial Tires
Spare Tire and Wheel- Standard Equipped

Feature
Color	Black
Axle GAWR, lubrication, and Brakes and Quantity	2 - 10,000# cambered axles with Oil Bath and Valcrum Caps
GVWR	20000 lbs
Cargo Capacity	13870 lbs
Ramps	7' Rear Slide-In Ramps
Jack	12,000# Top Wind
Tires	ST235/75 R-17.5 Load Range J Radial Tires
Storage	Lockable Pump and Battery Box mounted between front Jacks
Brakes	Forward Self-Adjusting Electric Brakes on Both Axles
Suspension	Torsion Axles
Tongue	12" I-Beam, 14#
Coupler	2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Frame	10" I-Beam
Cross-Members	3" Channel on 16" Centers
Floor	7 Gauge Smooth Steel
Fenders	9" x 72" 14 Ga. Diamond Plate Double Broke
Stake Pockets	Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug	7-Way RV
Lights	Recessed, Grommet-Mounted L.E.D. Lighting
Wiring	Sealed, Modular Cold-Weather Wiring Harness
Bolt Pattern	8-Lug
Wheels	Black Mod Steel
Spare Mount	Side Spare Tire Mount
Paint Type	Professional Finish w/ Primer Standard
Tie-Downs	(4) 1/2" D-Rings Inside Bed to Secure Equipment\|Along Sides and Rear for Cargo Control
Break-Away Kit	Complete Breakaway System w/ Zip Breakaway Cable
Battery	12V Deep Cycle
Charger	5A 110V on Board Battery Charger
Gate	Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks	Along sides and rear for Cargo Control
Power	Power Up/Power Down & Gravity Down Hydraulic Pump
Ram	Self-Contained Scissor
Sides	36" Tall (10 Ga) with formed Channel Supports
Stabilizers	Rear Stabilizer Stands
Tarp	Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail	3"x 2" Rectangular Tubing
Steps & Handles	Convenient Side-Step to Access Top Rail

We know how important it is to safeguard your investment, which is why we provide a range of warranty options tailored to fit your needs. Discover more about our available warranty plans.

Product Features

Equipment Ready

Comes standard with 4 D-rings to secure equipment and available ramps, ready to get your heavy equipment to the big job.
Effortless Maintenance

Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
More Accessible

This model come standard with all the essentials, including a 12K Jack, Side Steps, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates, giving you a well-rounded hauling experience.
Rear Combo Gate

A multi-functional rear gate with both barn doors and spreader gate that makes it easy to load, unload, or spread
36” Sides with 10-Gauge Walls & a 7-Gauge Floor

Heavy-duty, steel sides and a 7-Gauge steel floor support your haul, keeping cargo contained and secured for the journey ahead.
