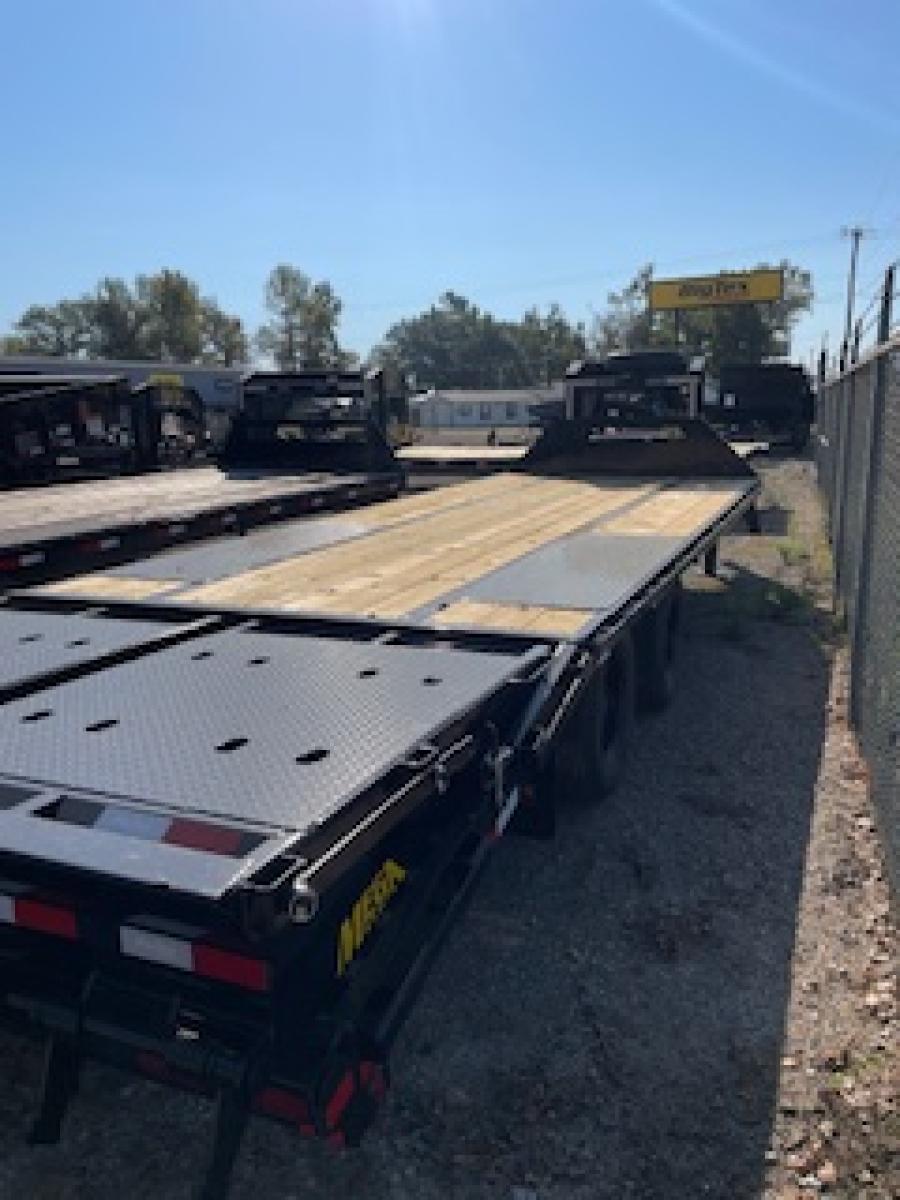

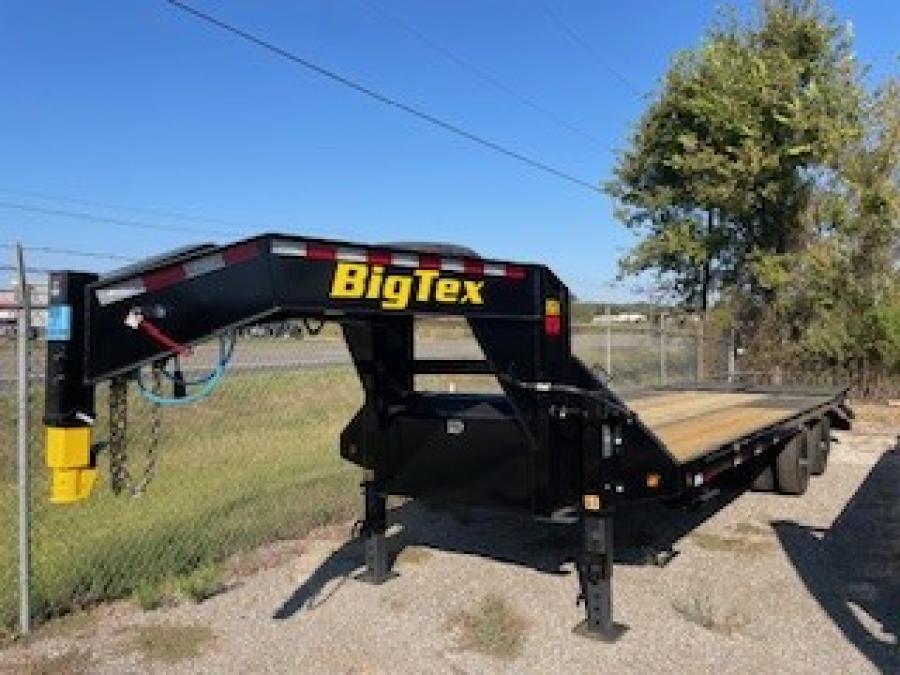

Big Tex 22GN, Gooseneck, 102" x 25', 23.9K, Dovetail, Mega Ramps
Tandem Dual Wheel Gooseneck
- New
MSRP
$18,799
Trailer World Price*
$15,949
Pay As Low As $406.30 / month
*Cash, finance or wire transfer price.
Applicable taxes and fees not included
Located at: 10640 US Hwy 69 N, Tyler, TX
Product Highlights
Year: 2025
Model: 22GN-25D5A-MRBK
Axle: 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps
GVWR: 23900 lbs
Cargo Capacity: 17210 lbs
Hitch Type: Gooseneck

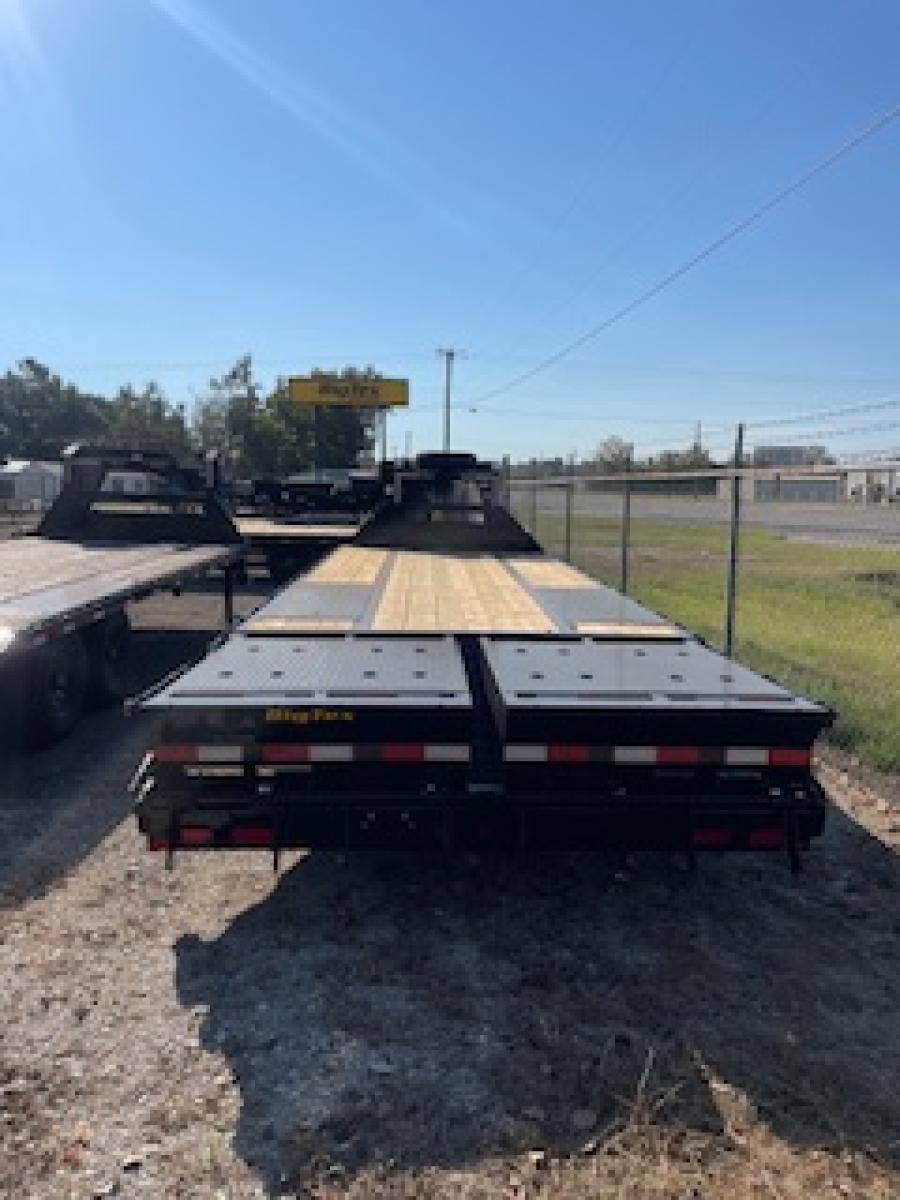

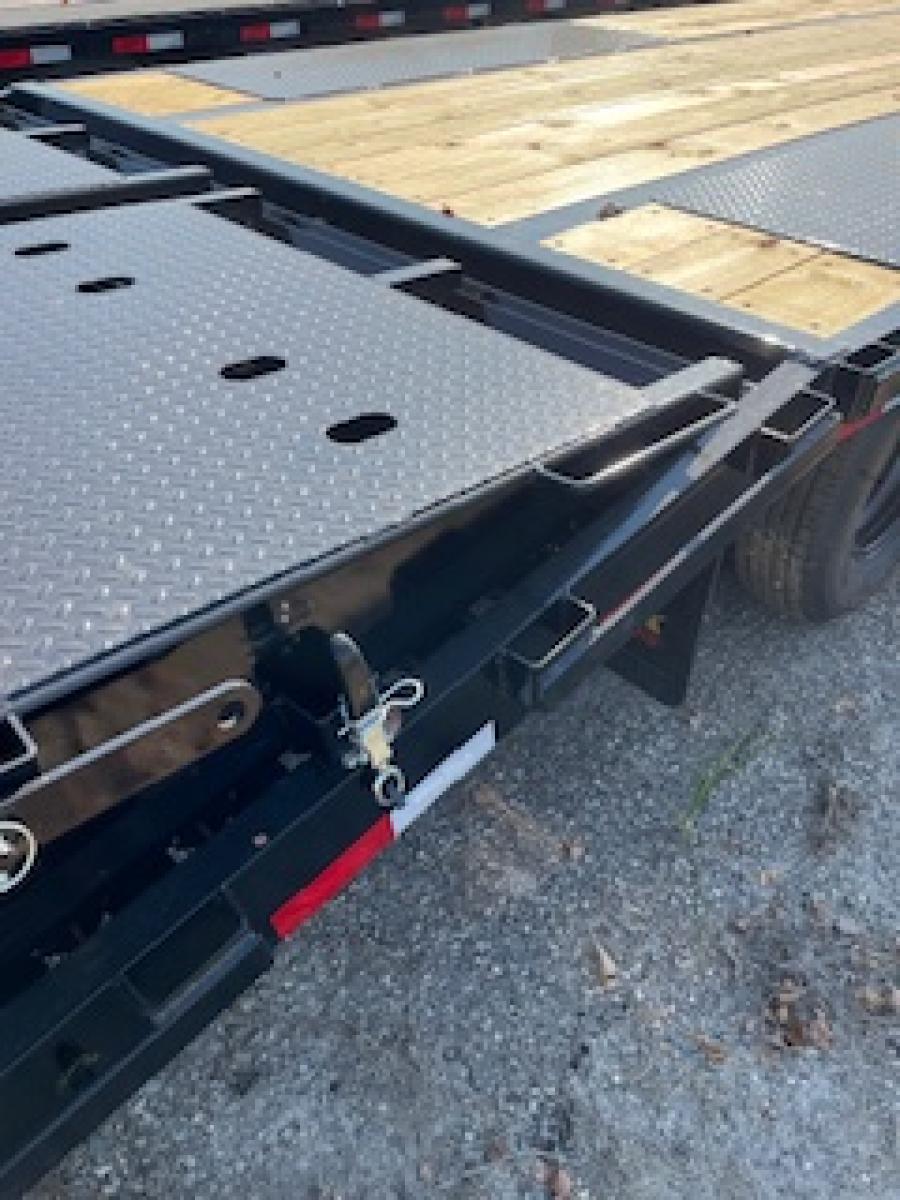

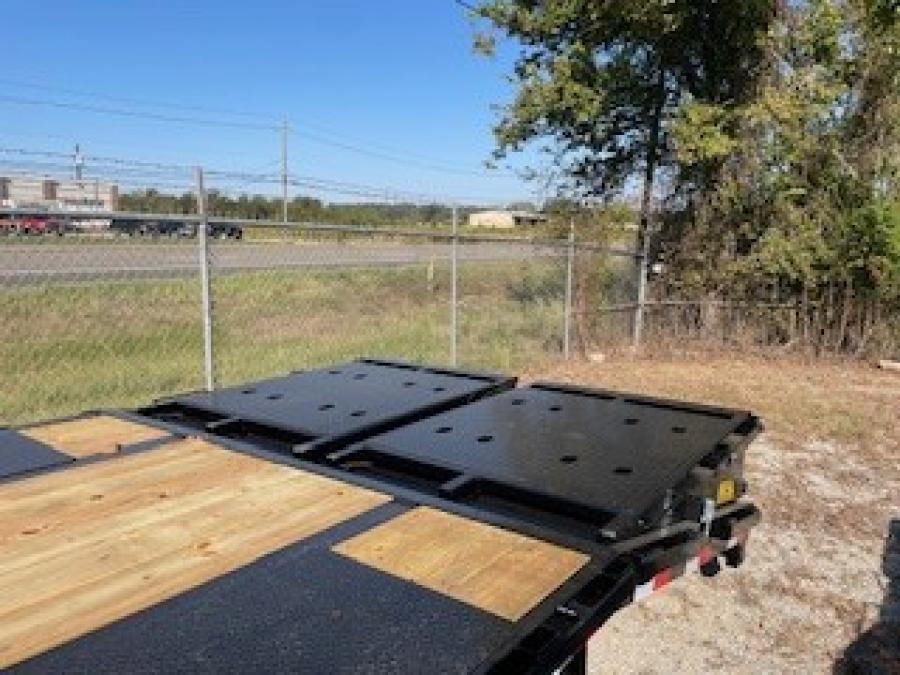

Ramps: 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps)
Tail: Dovetail
Color: Black
VIN: 378836

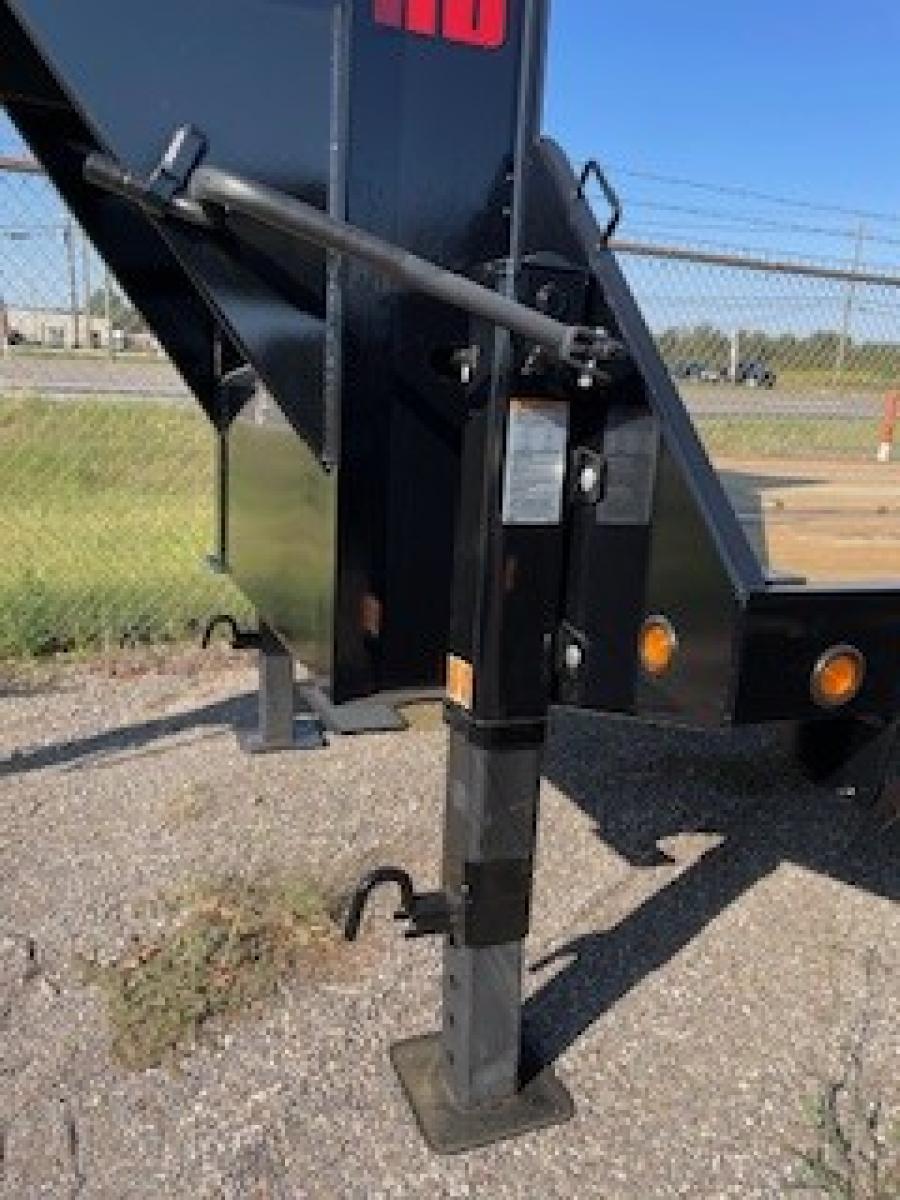

Jack: Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On)
Tires: ST235/80 R-16 Load Range E (Dual)
Storage: Front Lockable Toolbox Uprights w/ Chain Holder
CUSTOMIZE YOUR PAYMENT

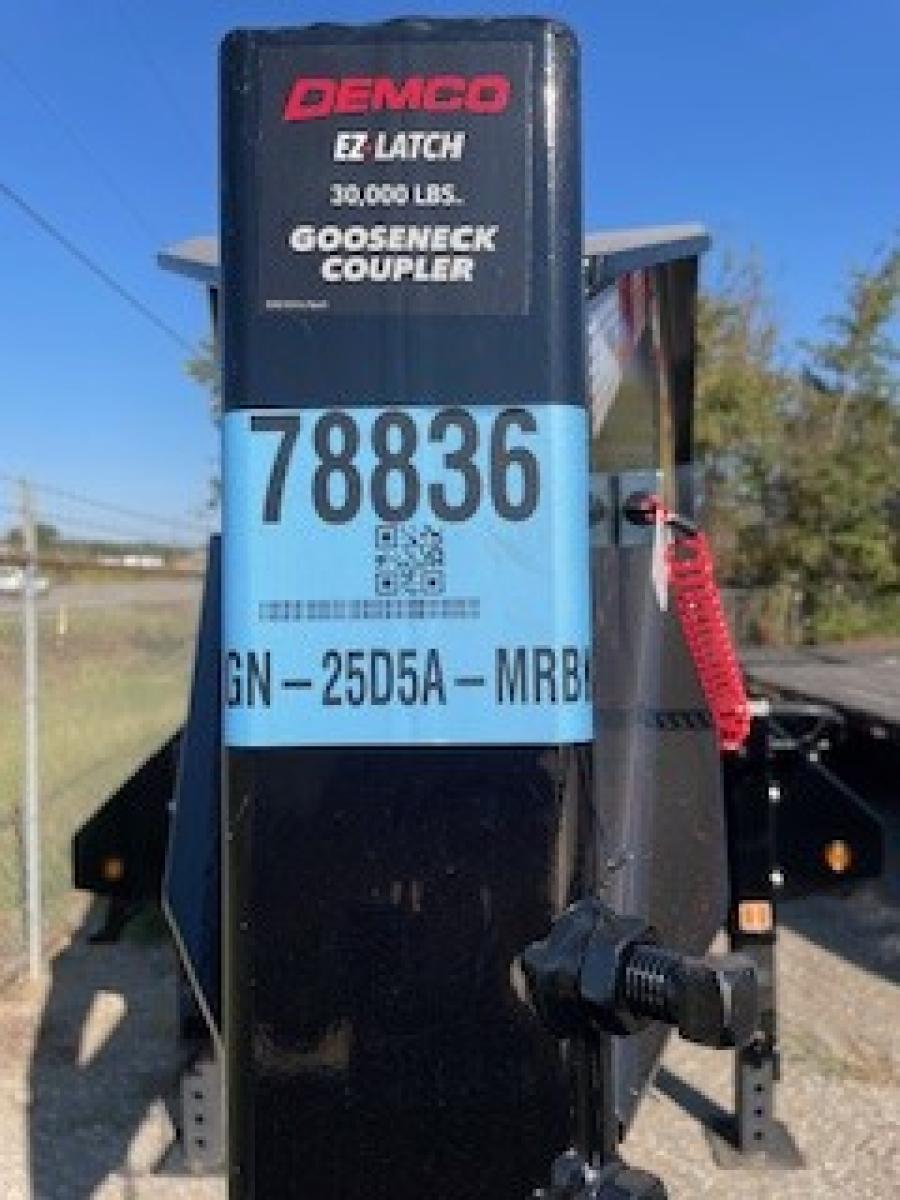

The Big Tex 22GN comes standard with two 10,000# dual-wheel axles featuring oil bath hubs and Valcrum caps, along with forward self-adjusting electric brakes on both axles. It has a heavy-duty 30,000# adjustable suspension for durability. The 2-5/16” Demco EZ Latch gooseneck coupler ensures a secure connection, complemented by 3/8” Grade 70 safety chains with latch hooks. For stability, it includes dual two-speed landing gear with a 50,000# capacity.

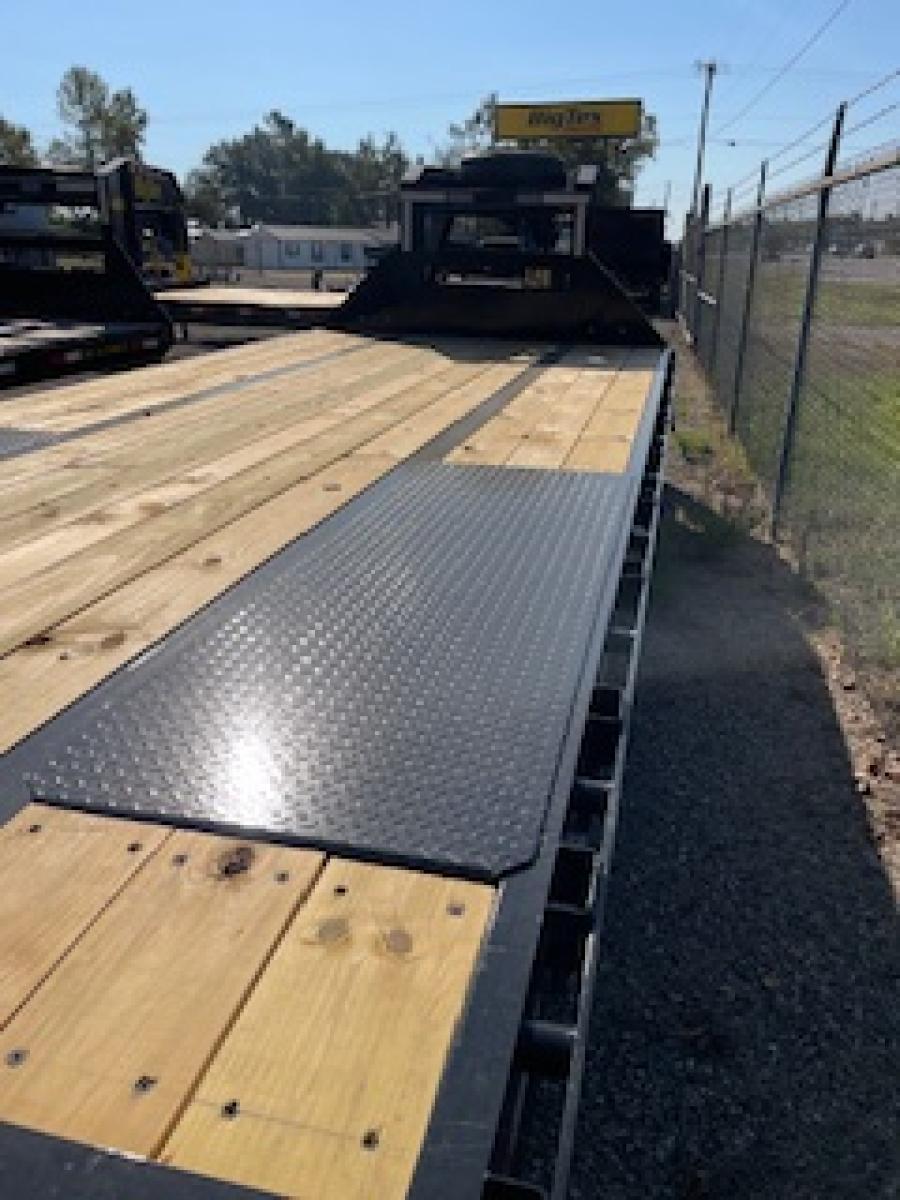

The frame is built with a 12" I-beam (19#) construction, with 3” channel cross-members for added strength. The treated pine floor is standard, and stake pockets are placed every 24 inches along both sides. The trailer is equipped with recessed, grommet-mounted LED lights, a sealed cold-weather wiring harness, and a 7-way RV plug for reliable electrical connections.
It rides on ST235/80 R-16 Load Range E dual tires with 8-bolt black mod wheels, and a top-of-neck spare tire mount includes a matching spare. A complete breakaway system with a Zip™ breakaway cable and charger is standard for safety. Additional features include a 3/8” heavy-duty rub rail, mud flaps, a front lockable toolbox with a chain holder, and retractable side bed steps with handles. Trailers 33' or longer come with a sliding winch track and Twist Guard™ for improved cargo security.
| Feature | |
|---|---|
| Color | Black |
| Axle GAWR, lubrication, and Brakes and Quantity | 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps |
| GVWR | 23900 lbs |
| Cargo Capacity | 17210 lbs |
| Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) |
| Tail | Dovetail |
| Jack | Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) |
| Tires | ST235/80 R-16 Load Range E (Dual) |
| Storage | Front Lockable Toolbox Uprights w/ Chain Holder |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Heavy-Duty 30,000#, Adjustable |

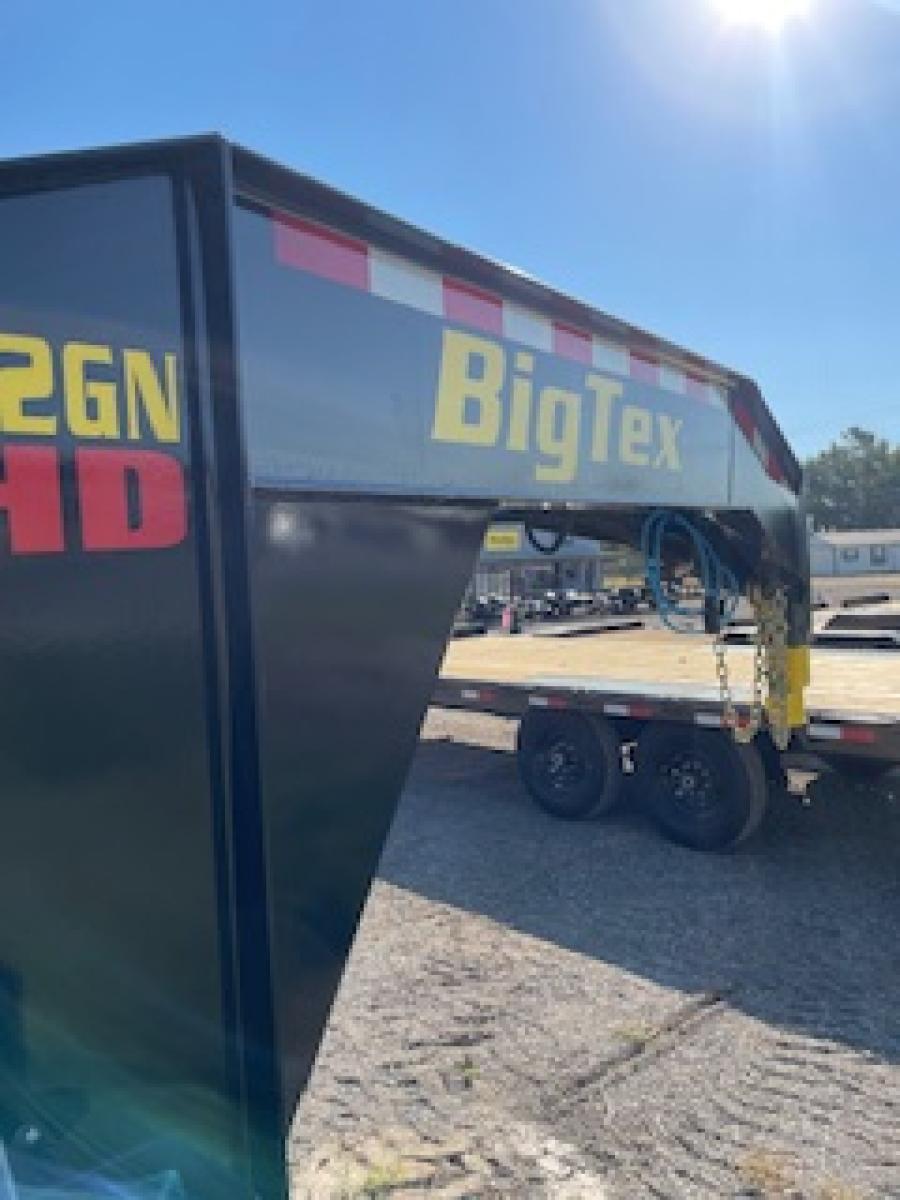

| Coupler | 2-5/16” Demco EZ Latch Gooseneck Coupler |
| Frame | 12" I-Beam, 19# |
| Cross-Members | 3" Channel |
| Floor | Treated Pine Floor |
| Dovetail | 5' Cleated Dovetail (on D5A models only) |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Bolt Pattern | 8-Bolt |
| Wheels | Black Mod |
| Spare Mount | Top of Neck Spare Tire Mount |
| Paint Type | Professional Finish w/ Primer Standard |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger |
| Mudflaps | Standard |
| Cargo Winch | Sliding Winch Track (standard on Trailer 33' or Longer ) |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets |
| Steps & Handles | (2) Retractable Side Bed Steps + Handles|Helping Hand Riser Step |
| Twist Guard™ | Included on trailers 33' and Longer |
| Work Light | Deck Work Light Package w/ Step Illumination |
We know how important it is to safeguard your investment, which is why we provide a range of warranty options tailored to fit your needs. Discover more about our available warranty plans.
Product Features
-

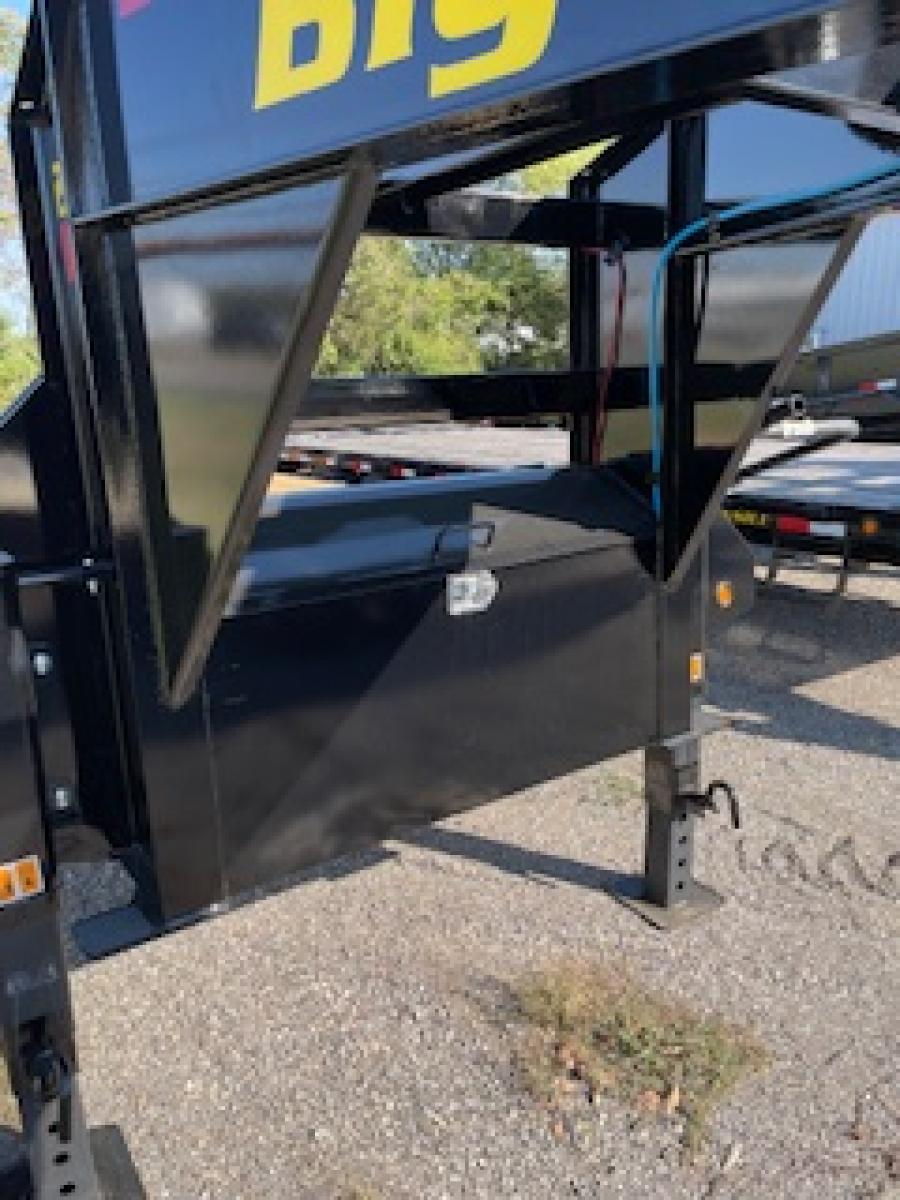

Large Front Toolbox
Provides a large amount of space to haul tools and includes an integrated binder rack.
-
Pipe Spools, Rub Rail and Stake Pockets
Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.
-
Oil Bath Axles with Forward Self Adjusting Brakes and Valcrum Caps
Designed with reliability in mind, these axles provide long-term durability and hauling strength along with being easier to maintain.
