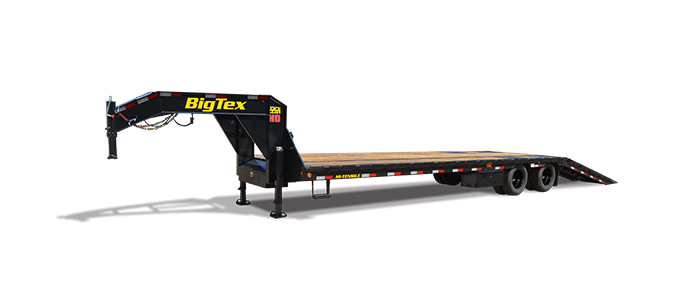

Big Tex 22GN-HDTS 102" x 35 (26 + 9) TD Gooseneck w/ Hydraulic Dovetail
Tandem Dual Wheel Gooseneck w/ Hydraulic Dovetail
- Used
MSRP
$17,183
Trailer World Price*
$17,350
Pay As Low As $371.38 / month
*Cash, cashiers checks, debit, wire, financing, and major credit cards accepted. Taxes and fees not included. 3% service fee on all credit card transactions.
Product Highlights
Year: 2023
Model: 22GN-35-HDTS
Axle: Tandem Dual
GVWR: 23900 lbs
Cargo Capacity: 14910 lbs
Hitch Type: Gooseneck
Length: 35'(26'+9")
Deck Width: 102"
Color: Black
VIN: 283377
Jack: Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
Tires: ST235/80 R-16 Load Range E (Dual)
Storage: Lockable Side Mount Tool Box/ Housing Power Unit Box|Lockable Toolbox between uprights
CUSTOMIZE YOUR PAYMENT
| Feature | |
|---|---|
| Axle GAWR, lubrication, and Brakes and Quantity | Tandem Dual |
| Bolt Pattern | 8-Bolt |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger |
| Cargo Winch | Sliding Winch Track |
| Coupler | 2-5/16” Ball, Adjustable Square Crank |
| Cross-Members | 3" Channel |
| Color | Black |
| Length | 35'(26'+9") |
| Deck Width | 102" |
| Floor | APEX Fortified Lumber |
| Frame | 12" I-Beam, 19# |
| GVWR | 23900 lbs |
| Hydraulic Dovetail | 9' Hydraulic dovetail-wood-filled center with cleated runners (8,000# lifting capacity, 4,000# Carrying Capacity from middle of dovetail forward) |
| Jack | Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Cargo Capacity | 14910 lbs |
| Mudflaps | Standard |
| Paint Type | Professional Finish w/ Primer Standard |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides |
| Spare Mount | Top of Neck Spare Tire Mount |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Steps & Handles | (2) Side Bed Steps + Handles |
| Storage | Lockable Side Mount Tool Box/ Housing Power Unit Box|Lockable Toolbox between uprights |
| Suspension | Heavy-Duty 30,000#, Adjustable |
| Tires | ST235/80 R-16 Load Range E (Dual) |
| Trailer Plug | 7-Way RV |
| Torque Tube | Standard Equipped |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
We know how important it is to safeguard your investment, which is why we provide a range of warranty options tailored to fit your needs. Discover more about our available warranty plans.
PRODUCT FEATURES
-
Pipe Spools, Rub Rail and Stake Pockets
Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.
-
Oil Bath Axles with Forward Self Adjusting Brakes and Valcrum Caps
Designed with reliability in mind, these axles provide long-term durability and hauling strength along with being easier to maintain.
-

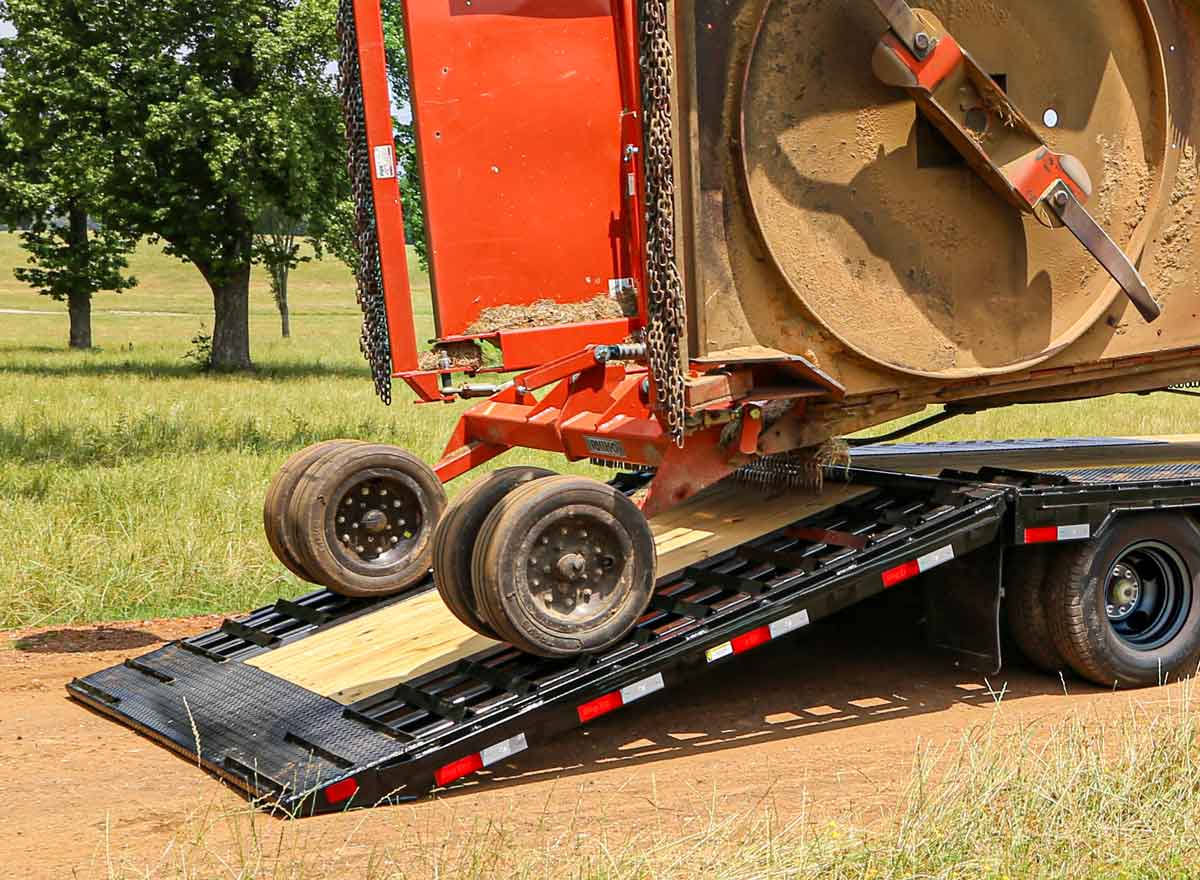

Hydraulic Dovetail
Standard 9’ cleated dovetail (with wood between the runners) features a lifting capacity of approximately 8,000 lbs and carrying capacity of 4,000 lbs.
