Big Tex 70ST, Tilt, 81" x 13', 7K

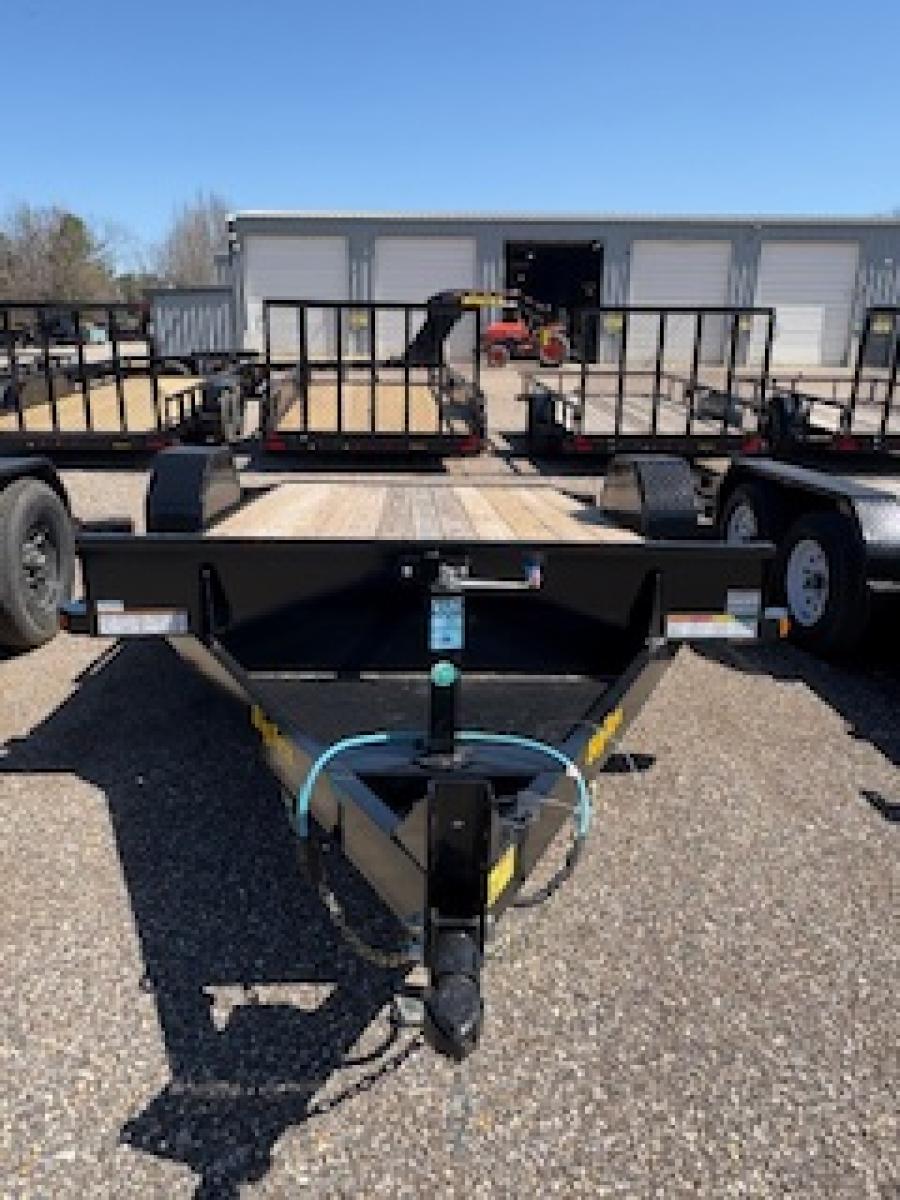

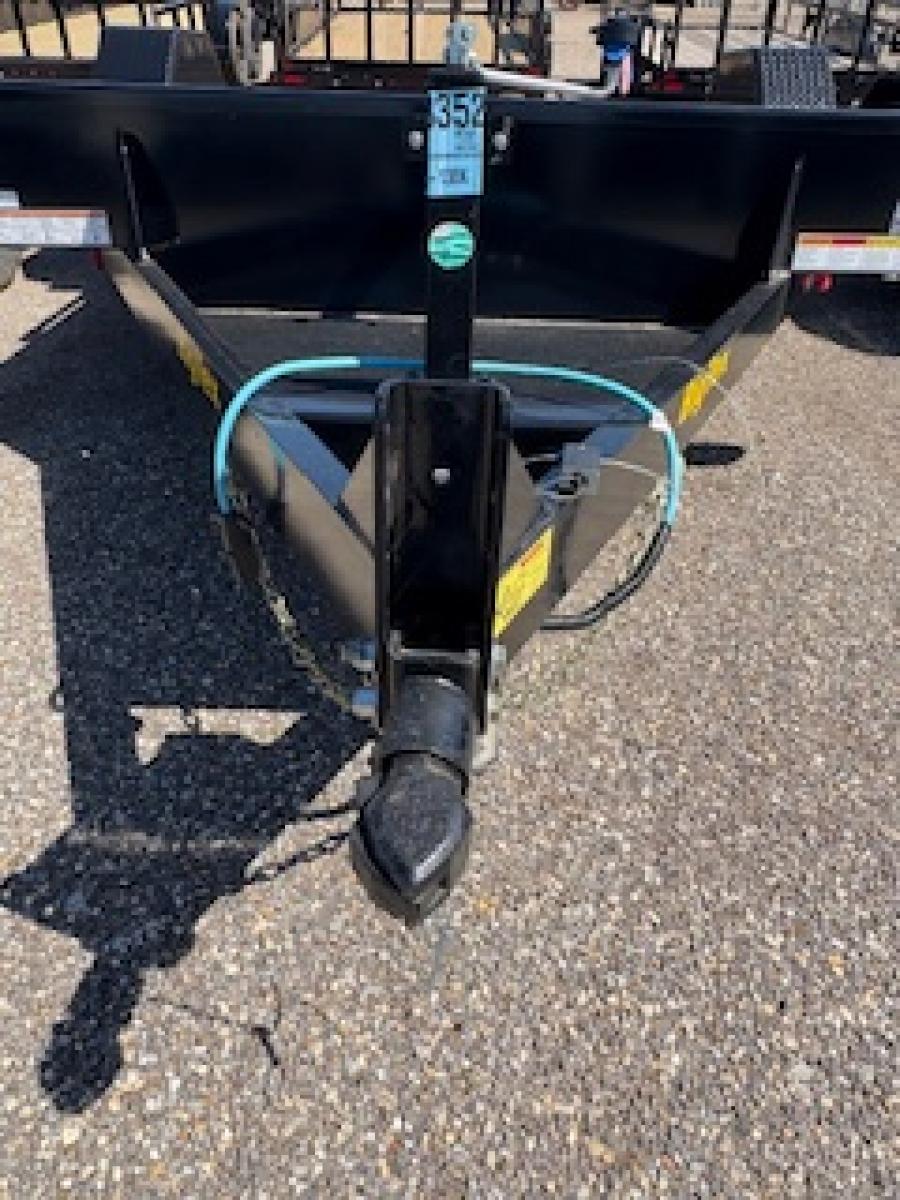

The Big Tex 70ST comes standard with a 7,000# 4" drop axle featuring quick-lubricating hubs and forward self-adjusting electric brakes. It has a multi-leaf slipper spring suspension with an equalizer for smooth towing. The 2" forged adjustable coupler ensures a secure connection, supported by 1/4” Grade 70 safety chains with latch hooks. An 8,000# set-back drop-leg jack provides stability.

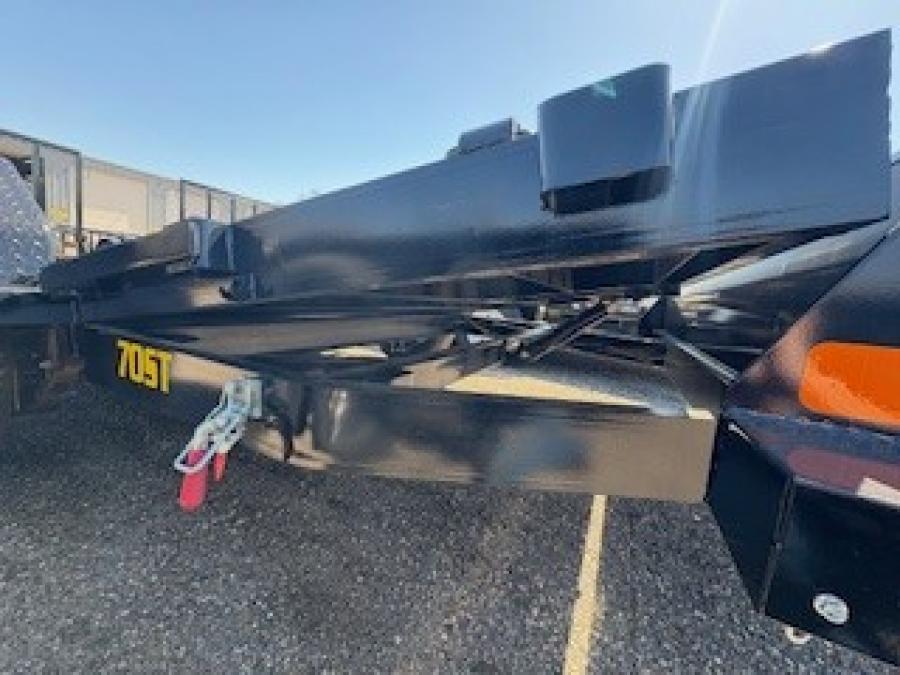

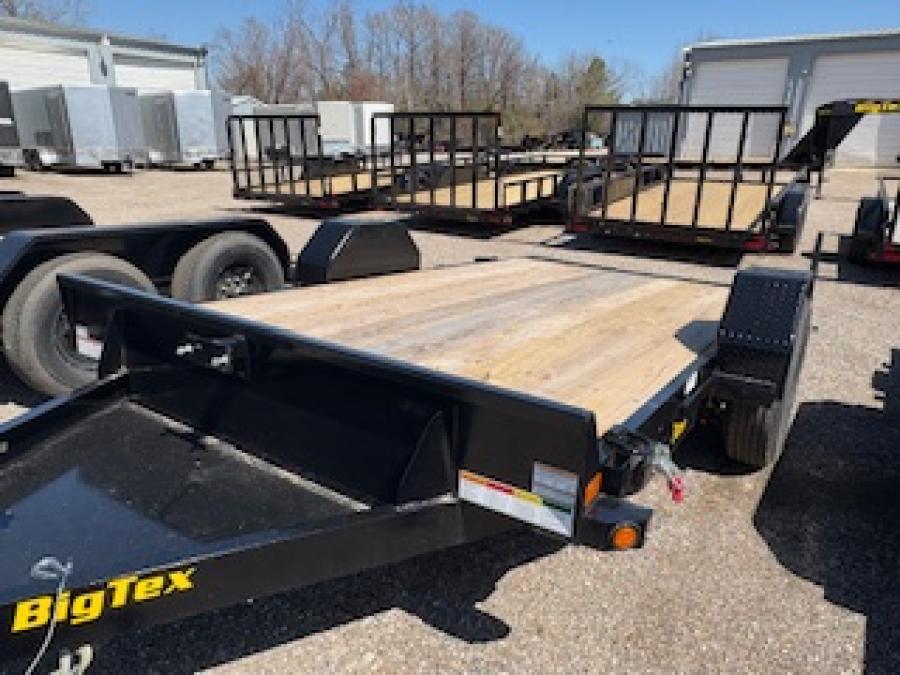

The frame is built from 5" channel steel, with 3" channel cross-members on 16" centers and a 3/16" fabricated front stop rail. The deck is treated pine, with 9” x 36” removable diamond plate fenders. Stake pockets run along both sides, and a rub rail provides added security.

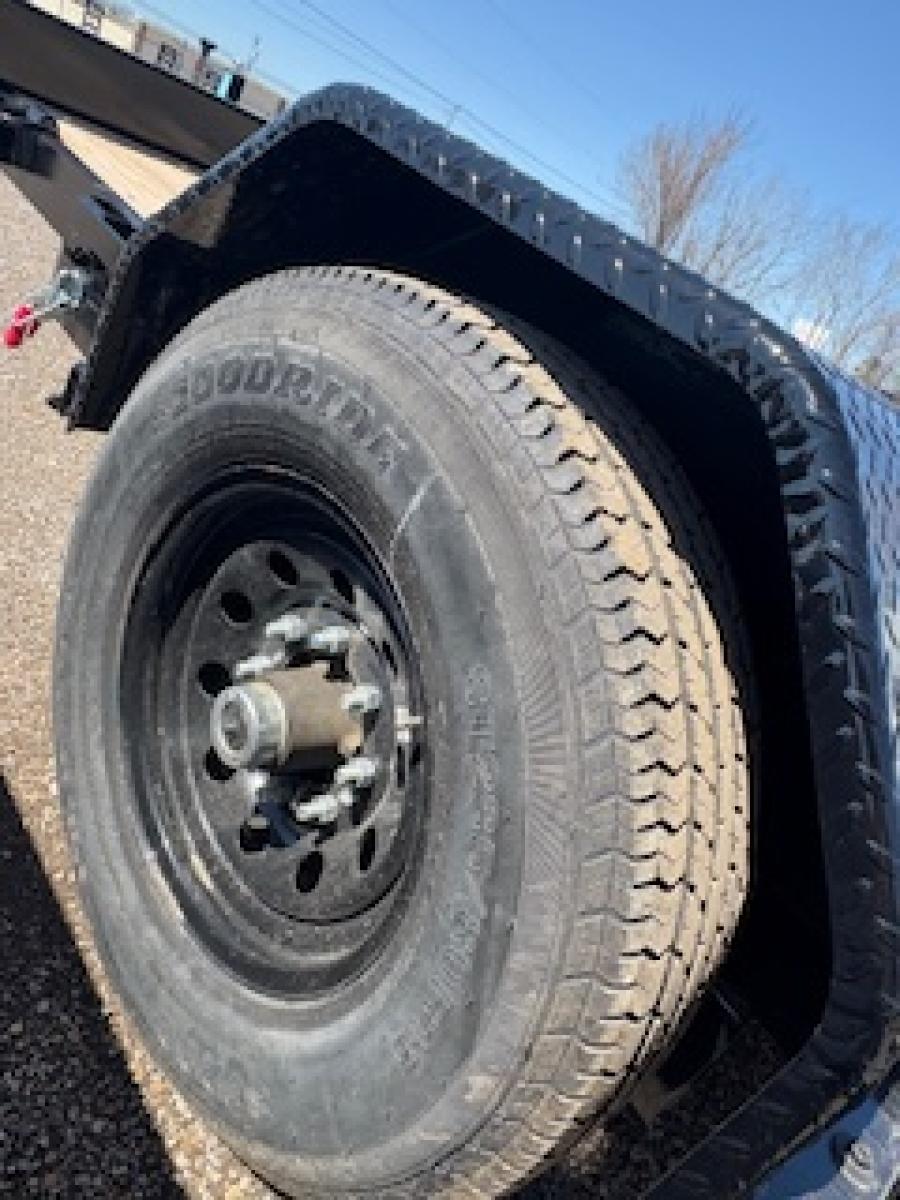

For electrical components, the trailer includes a 7-way RV plug, recessed LED lighting, and a sealed cold-weather wiring harness. It rides on ST235/80 R-16 Load Range E radial tires with an 8-bolt pattern, and a front spare tire mount is included.

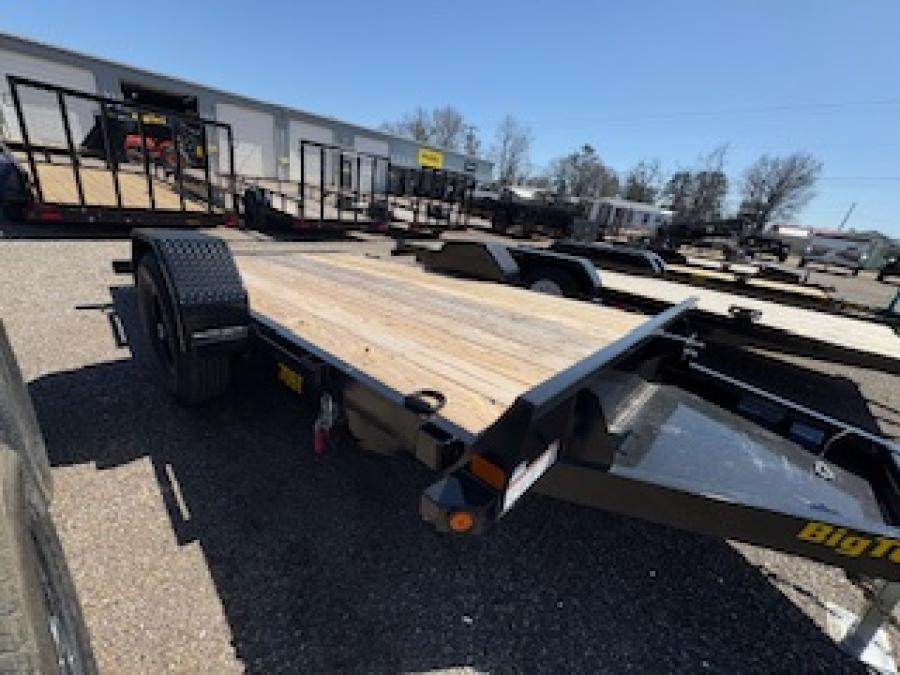

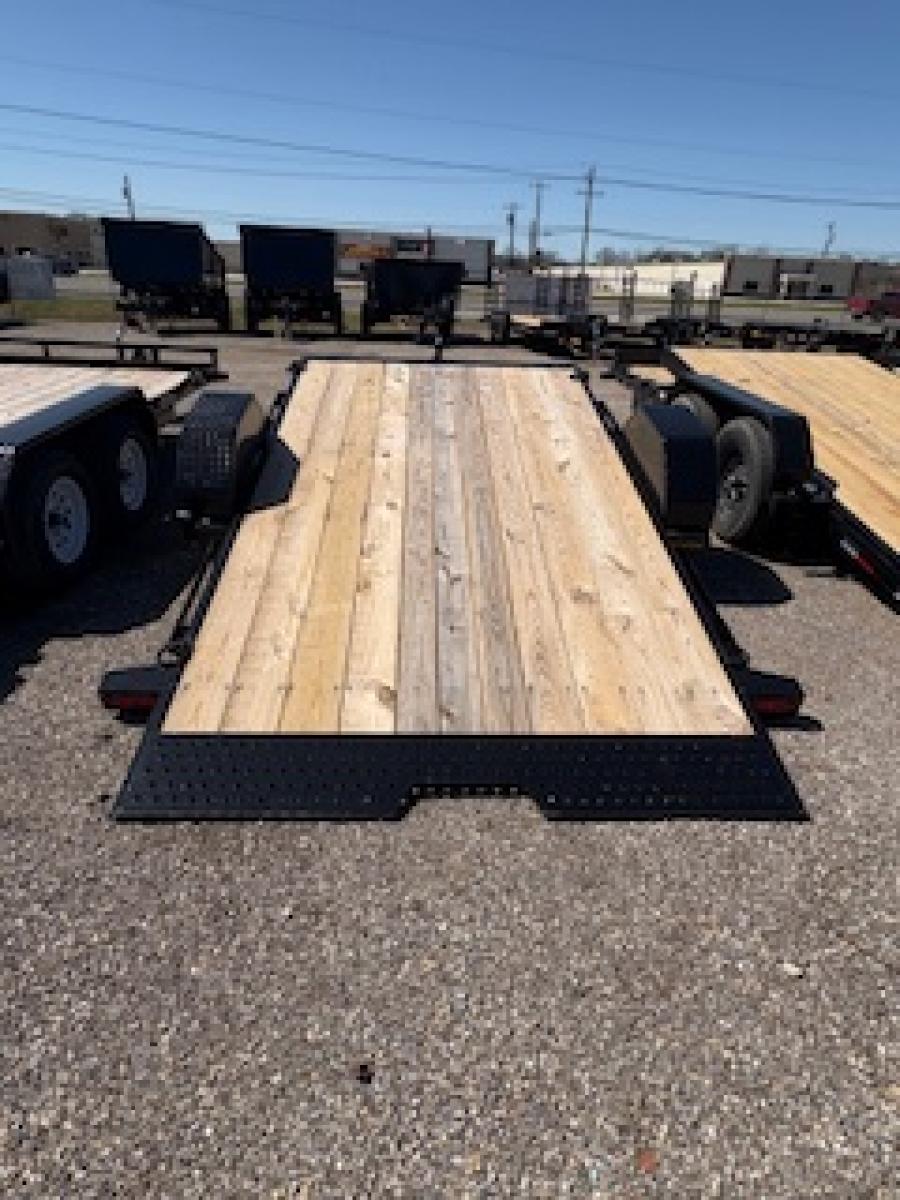

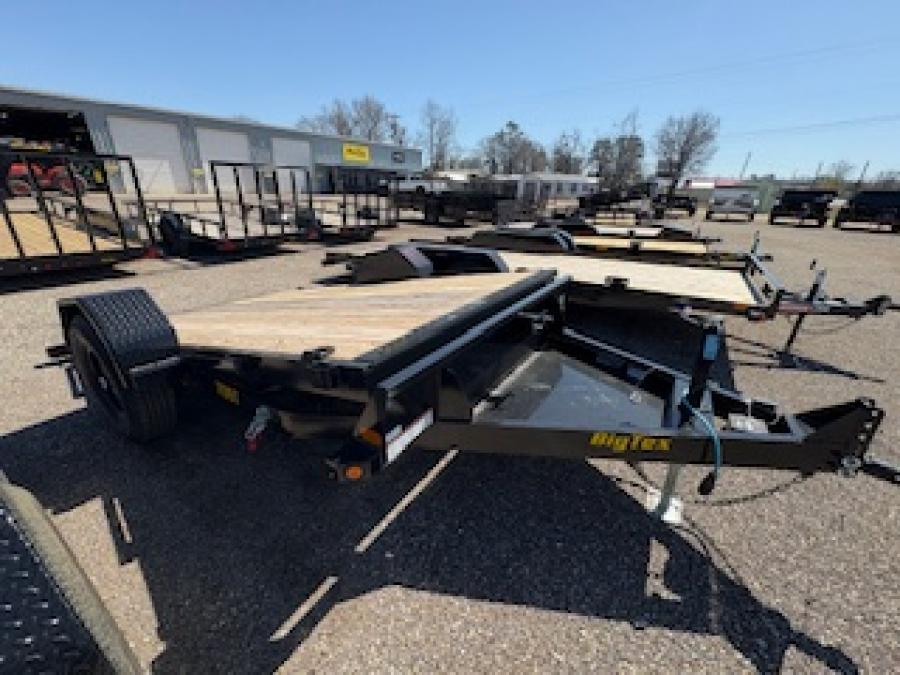

The 81" x 13' tilt deck features a 1/4" diamond plate knife edge and operates with hydraulic dampening and a deck locking mechanism. A 3' x 81" stationary deck area is included on 16' models. The tilt deck has a 12° angle for easy loading. Additional features include four 5/8" D-rings, a complete breakaway system with a Zip™ breakaway cable, and a professional black finish with primer, with other color options available.
