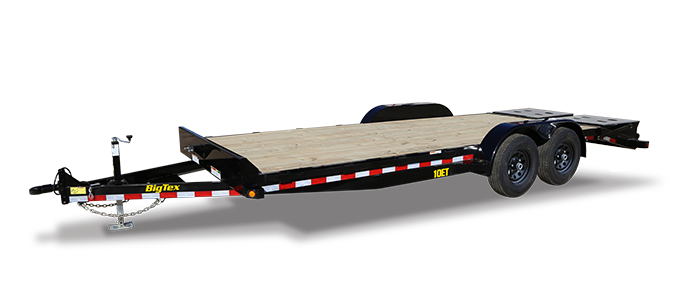

Tandem Axle Equipment Trailer (10ET)
When you need a jack of all trades that’s a master of all your equipment hauling needs, the 10ET Tandem Axle Equipment Trailer won’t let you down. It brings excellent durability to the table when you’re hauling light and medium duty equipment and features an 83”-wide deck, so the possibilities are nearly endless. And it’s designed for safety and performance down to the last bolt, whether you’re driving or loading. It’s got forward self-adjusting brakes for easier brake maintenance, plus a cleated dovetail design so you can confidently load equipment without slipping. When you combine innovation, durability, and versatility, this trailer is what you get.
Trailer Specifications
16' – 20''
Width
83"
Lengths
9,990 lbs
GVWR
7,470—7,670 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
Adjustable Forged 2-5/16”
Available Options |
| Safety Chains | 1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 8,000# Set-Back, Drop-Leg Jack |
| Frame | 5" Channel |
| Cross-Members | 3" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | Tear Drop Removable |
| Ramps |
4’ Tall, Channel Knee Ramps
Available Options |
| Dovetail | 3' Cleated Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST225/75 R-15 Load Range D Radial Tires |
| Bolt Pattern | 6-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color |
Black
Available Options |
| Rubrail | Rub Rail Along Both Sides |
| Tie-Downs |
(6) 5/8" D-Rings
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Get a Grip While You Load
Get a boost of confidence as you load in or out with our 36” cleated dovetail. It provides excellent traction and prevents slipping, keeping you moving through your task smoothly.
Use Every Last Bit of Space
As you load in your equipment, you can confidently go all the way to the front with a fabricated front stop rail. It’ll prevent cargo from sliding off, protect your vehicle from damage, AND includes a spare tire mount!
4’ Stand-Up Knee Ramps
With a convenient height and a fold-up functionality, our stand-up knee ramps make it easy to load vehicles and equipment onto your trailer, and they don’t get in the way.
