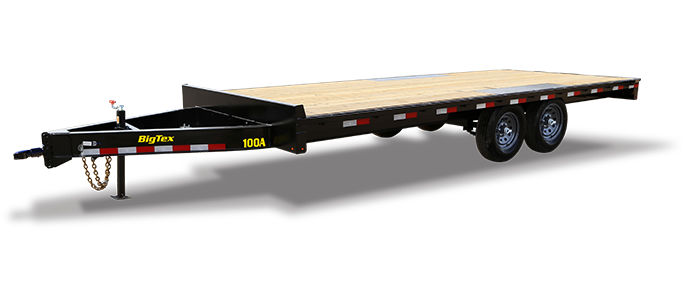

Over-The-Axle Bumperpull Trailer (10OA)
Does your day-to-day work involve transporting pallets or medium-weight equipment? Then the 10OA Over-The-Axle Bumperpull Trailer is made for you. A versatile deck-over trailer that’s also affordable, the 10OA is designed to efficiently and securely haul your load using the entire width of the trailer. A 102’’ low-profile bed for easier loading and unloading, I-beam frame and integral tongue for added strength and durability, and an adjustable coupler for a secure and reliable connection, this highly versatile trailer works hard to help make your daily operations a little easier.
Trailer Specifications
16' – 24''
Width
102"
Lengths
9,990 lbs
GVWR
5,830—7,060 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
Adjustable Forged 2-5/16”
Available Options |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack | 8,000# Set-Back, Drop-Leg Jack |
| Frame | 8" I-Beam (10#) |
| Cross-Members | 3" x 3.5" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Ramps |
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST225/75 R-15 Load Range D Radial Tires |
| Bolt Pattern | 6-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color |
Black
Available Options |
| Rubrail | Rub Rail Along Both Sides |
| Tie-Downs |
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Storage | Storage Tray in Tongue |
| Side Rail | 5" Channel |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Keep Your Haul Secured
Safeguard cargo with a solid one-piece stop rail and reliable d-ring tie downs, specifically designed to provide maximum security and stability during loading and towing.
Convenient Storage
An integrated storage tray in the tongue area provides additional organizational space.
Connected with Confidence
Hook up and go with an adjustable forged coupler, built for durability and to securely connect to your tow vehicle.
