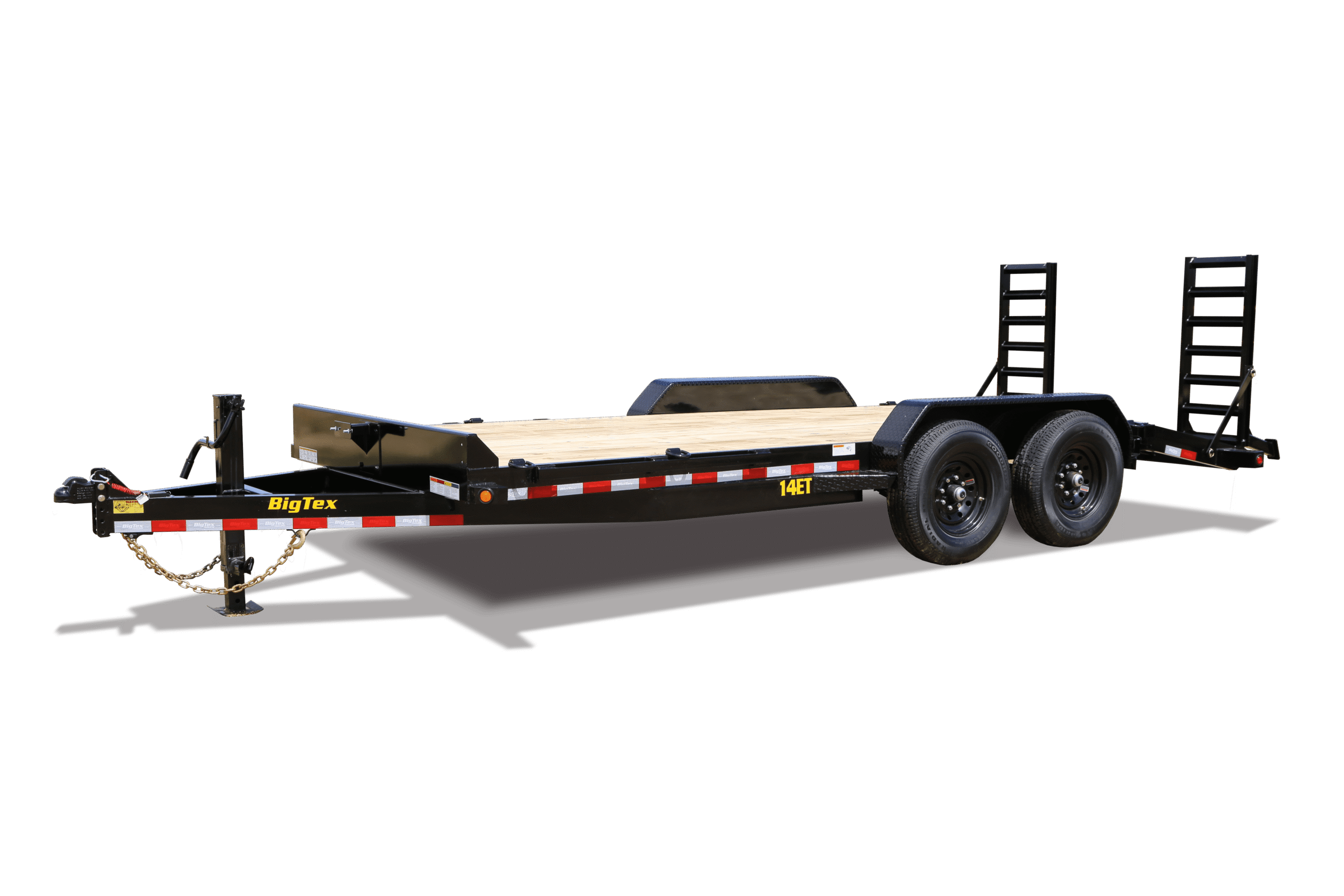

Heavy Duty Tandem Axle Equipment Trailer (14ET)
Engineered to get the job done like no other, the 14ET Heavy Duty Tandem Axle Equipment Trailer delivers the versatility, durability, and strength required to take on the difficult demands of the heavy-duty hauling and equipment transportation. Ready to go for the longest and hardest hauls, it’s the ideal heavy-duty trailer solution for construction workers, professional landscapers, farmers, and more.
Trailer Specifications
16' – 22''
Width
83"
Lengths
14,000 lbs
GVWR
10,860—14,960 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler|2-5/16" Round Gooseneck Coupler on Gooseneck models
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model |
| Frame | 6" Channel |
| Cross-Members | 3" Channel on 16" Centers |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail (Bumper Pull Only) |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke w/ Back |
| Ramps |
4’ Tall, 16" Knee Ramps (Spring Assisted)
Available Options |
| Dovetail |
3' Cleated Dovetail
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Color |
Black
Available Options |
| Rubrail | Rub Rail Along Both Sides |
| Tie-Downs |
(6) 5/8" D-Rings
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Storage | Tongue Tool Tray (Bumper Pull Only)|Lockable Toolbox Between Risers on Gooseneck Model |
Model Benefits
Heavy Duty Diamond Plate Steel Fenders
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Fast and Easy Hitching
The Demco EZ Latch Coupler is built to last and provides a fast and easy connection, and its automatic latching system securely locks when lowered—saving you both time and effort.
