Tube-Top Utility Trailers / 14GP

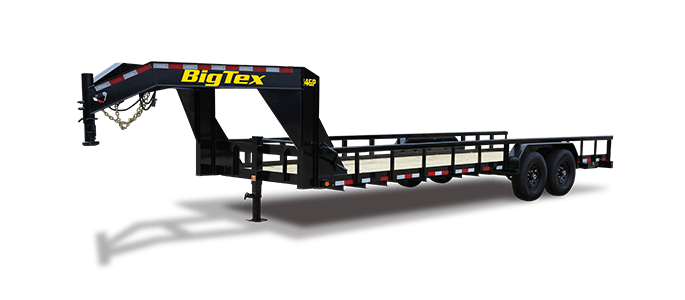

Heavy Duty Pipe Top Gooseneck Lowboy Trailer (14GP)

Looking for the confidence to haul heavy-duty equipment, day in and day out? Look no further. One of our most rugged, capable, and popular pipe-top equipment trailers (and for good reason), the 14GP Heavy Duty Pipe Top Gooseneck Lowboy Trailer is purpose-built to take on the biggest jobs. Bringing together the best features of a 14K gooseneck trailer with a pipe rail for added strength and security, the 14GP is the trailer you need when the going gets tough. And with a 14,000 lbs G.V.W.R., it’s resilient, strong, and won’t back down—from morning to night, 24/7.

View Inventory Download Brochure

Trailer Specifications

20' – 24''

Width

83"

Lengths

14,000 lbs

GVWR

10,150—10,550 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes	Forward Self-Adjusting Electric Brakes on All Hubs
Suspension	Multi-Leaf Spring w/ Equalizer
Coupler	2-5/16” Adjustable Pipe Coupler
Safety Chains	3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack	12,000# Drop-Leg Jack (Side Wind) Available Options Dual 12,000# Drop Leg Jacks
Frame	5" x 3" x 5/16" Angle
Cross-Members	3" Channel on 16" Centers
Floor	Treated Pine Floor Available Options Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders	9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps	4' Slide in Channel Ramps Available Options 5’ Stand Up Ramps 4' Heavy Duty Integrated Ramp Gate w/ Coil Spring 5' Heavy Duty Integrated Ramp Gate w/ Coil Spring
Stake Pockets	Outside Frame Stake Pockets Available Options Additional Stake Pockets (Each)
Trailer Plug	7-Way RV
Lights	L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring	Grommet-Mounted Lifetime L.E.D. Lighting
Tires	ST235/80 R-16 Load Range E Available Options Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern	8-Bolt
Spare Mount	Top of Neck Spare Tire Mount
Spare Tire	Available Options Spare Tire (ST235/80 R-15 LR-E) Spare Tire & Wheel (ST235/80 R-16 LR-E)
Paint Type	Professional Finish w/ Primer Standard
Paint Color	Black Available Options View Color Options Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs	Available Options 5/8" D-Ring
Sides	15" Tall Open sides with 3"x 2”x 3/16" Angle uprights and 3" x 3" Square Tubing Top Rail Available Options 2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)
Storage	Available Options Lockable Tool Box Between Gooseneck Risers (Dual Jacks Required)

Model Benefits

Effortless Maintenance

Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

Your Haul, Secured

Safely and conveniently secure your cargo with four tie-down loops inside the bed.

4' Slide-In Ramps

Slide-in ramps come standard on this model to make loading easy and convenient.

Sturdy 3" x 3" Pipe Top Rail

Constructed from 3" x 3" square tubing, its pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
