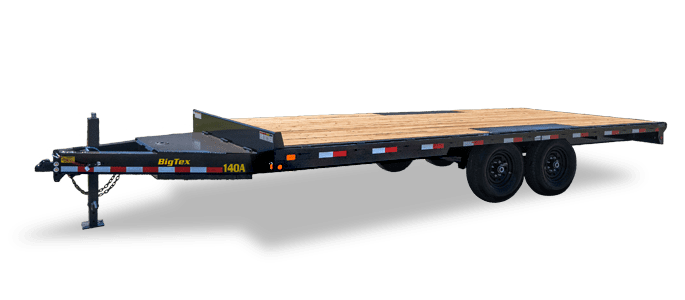

Heavy Duty Over-The-Axle Bumperpull (14OA)
Wider and stronger is the name of the game for the 14OA Heavy Duty Over-The-Axle Bumperpull Trailer. With a 102’’ wide deck and a 14,000 lbs G.V.W.R., this heavy-duty deck-over trailer is built with the space and strength that haulers demand. Available in multiple lengths (16’, 18’, 20', 22', and 24’) and equipped with standard 8’ slide-in ramps, the 14OA works hard for those hauling pallets and medium-weight equipment. It’s spacious and strong, and it’s ready to get the job done—are you?
Trailer Specifications
16' – 24''
Width
102"
Lengths
15,400 lbs
GVWR
11,220—12,150 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 7,000# Premium, with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Available Options |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack | 12,000# Drop Leg Jack (Top Wind), Bolt-On |
| Frame | 8" I-Beam (10#) |
| Cross-Members | 3" x 3.5" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Ramps |
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Spare Mount | Spare Tire Mount in Toolbox |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Rubrail | Rub Rail Along Both Sides |
| Tie-Downs |
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Storage | Full Tongue Tool Box with Locking Lid |
| Side Rail | 5" Channel |
Model Benefits
Fast and Easy Hitching
The Demco EZ Latch Coupler is built to last and provides a fast and easy connection, and its automatic latching system securely locks when lowered—saving you both time and effort.
Locking Storage
The 14OA and 16OA are standard equipped with diamond plate heavy-duty locking lid to keep equipment secured and out of the elements
Secure Cargo With Stop Rail & D-Rings
Safeguard your cargo with our Stop Rail and reliable D-Ring Tie Downs, specifically designed to provide maximum security and stability during loading and towing.
Integrated Storage Tray & Spare Tire Mount
The 14OA and 16OA models feature a built-in storage tray in the tongue area and a spare tire mount, providing convenient storage solutions during transit to ensure you're prepared for any situation.
