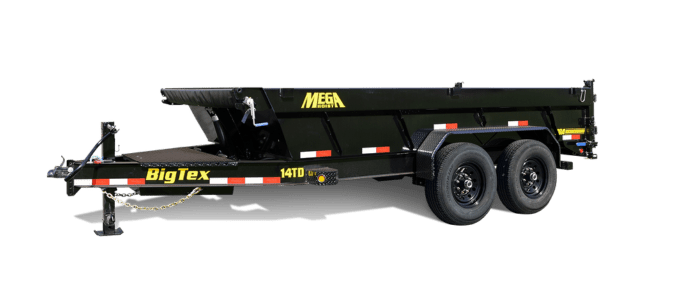

Heavy Duty Telescopic Dump Trailer (14TD)
The redesigned 14TD from Big Tex is engineered for serious work. Featuring a 5-Stage Front-Mount Telescopic Cylinder, it delivers smooth, reliable lifting power for even the heaviest loads. The front-mounted cylinder enhances service access, while a steep 45° dump angle ensures fast, efficient unloading. The advanced dump body design includes reinforced side rails for added strength, and convenient features like the Demco EZ-Latch and full-width toolbox come standard. With available 4' sides, the 14TD can haul up to 16.3 cubic yards—built tough for long-lasting performance.
Trailer Specifications
14''
Width
83"
Lengths
14,000—15,400 lbs
GVWR
10,020—11,370 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Available Options |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 8" I-beam Tongue |
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |
12,000# Drop-Leg Jack (Side Wind)
Available Options |
| Frame | 8" Seamless I-Beam (13#) |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 7 Gauge Smooth Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke |
| Ramps |
Not Included
Available Options |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Not Included
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides and rear for Cargo Control |
| Power |
Power Up/Gravity Down Movement
Available Options |
| Ram | 5-Stage Telescopic Cylinder |
| Sides |
24" Tall (10 Ga) with formed Channel Supports
Available Options |
| Stabilizers | Rear Stabilizer Stands |
| Steps | Convenient Side-Step to Access Top Rail |
| Storage | Full Tongue Tool Box with Locking Lid |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | 3"x 2" Rectangular Tubing |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
| X-Series Package |
Available Options |
Model Benefits
Mega Toolbox
The Mega-Sized Toolbox holds the battery and hydraulic pump while also providing an ample amount of storage space for tools, straps, and chains. Plus, it's lockable and features a heavy-duty latch.
7 Gauge Floor & Ramps
The rugged 7-gauge steel floor delivers unmatched durability, while heavy-duty ramps make it easy to load equipment directly into the dump bed—tough enough for the job, ready when you are.
4' Sides Available
When the job calls for more capacity, the 4' side option delivers—hauling up to 14 cubic yards of landscape or construction materials with ease.
5-Stage Telescopic Cylinder
Engineered for the future of lifting, this advanced design handles heavy loads effortlessly. With the cylinder positioned up front, it stays clear during operation and is easily accessible for maintenance.
