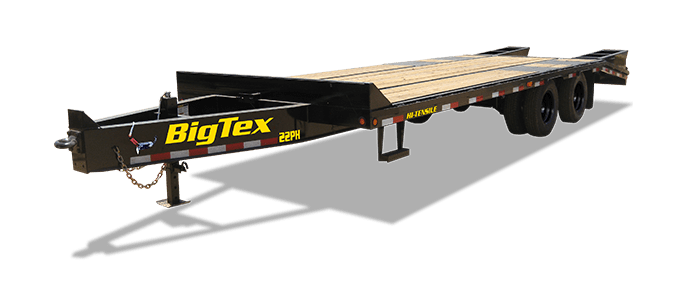

Tandem Dual Wheel Pintle (22PH)
Are you taking on heavy-duty towing jobs with a pintle hitch, but you need more strength? Upgrade to the big and strong 22PH Tandem Dual Wheel Pintle Trailer, a hauler that’s ready to work hard all day long. Perfect for agricultural, construction, and landscaping, the 22PH performs in tough and rugged conditions with standard features such as two 10K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. And with 23,900 lbs G.V.W.R., it’s purpose-built to haul substantial loads and heavy-duty equipment. Hard work pays off; and so does the 22PH.
Trailer Specifications
25' – 30''
Width
102"
Lengths
23,900 lbs
GVWR
17,800—18,300 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 10,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps |
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles
Available Options |
| Suspension | Heavy-Duty 30,000#, Adjustable |
| Coupler | 3" ID Pintle Ring |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |
12,000# Drop-Leg Jack (Top Wind)
Available Options |
| Frame | 12" I-Beam |
| Cross-Members | 3" Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Ramps |
5' Double Hinged, Spring Assisted Flip-Over Ramps
Available Options |
| Dovetail | 5' Cleated Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires |
ST235/80 R-16 Load Range E Radial Tires
Available Options |
| Bolt Pattern | 8-Lug |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire | ST235/80 R-16 Load Range E Radial Tire |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Rubrail | 3/8” Heavy Duty Rub Rail |
| Tie-Downs |
Available Options |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable |
| Mudflaps | Standard |
| Storage |
Available Options |
| Cargo Winch |
Available Options |
| Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets
Available Options |
| Side Rail | 6" Channel |
| Steps & Handles | (2) Side Bed Steps |
Model Benefits
Effortless Maintenance
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Robust Adjustable Pintle Ring
A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.
Comprehensive Load Securement
A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.
Optional Powerhouse Mega Ramps
Optimize your loading experience with heavy-duty, extra-wide ramps, designed to handle the demands of loading various types of equipment with ease.
