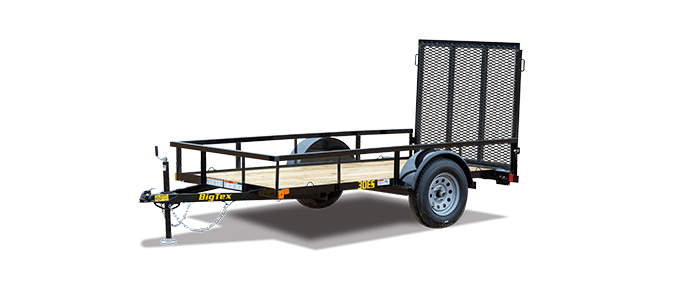

Economy Single Axle Utility Trailer (30ES)
Deal with a lot of different types of tasks around the home? Then the 30ES Economy Single Axle Utility Trailer is for you. An affordable single axle trailer that’s all about versatility, the 30ES features a heavy-duty frame with a square tubing top rail for long-lasting durability. Plus, you can choose from treated pine or fir floors, so you get exactly what you need. Perfect for hauling ATVs, lawn equipment, and other light loads, it’s a cost-effective, jack-of-all-trades trailer that gets the job done.
Trailer Specifications
8' – 10''
Width
60"
Lengths
2,995 lbs
GVWR
2,272—2,332 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 3,500# Quick Lubricating Axle |
| Brakes | Brake Flanges for Easy Brake Addition |
| Suspension | Multi-Leaf Spring |
| Coupler | 2" A-Frame |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| Jack | 2,000# Top Wind, Removable Sand Foot |
| Frame | 3" x 2" x 3/16" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor | Treated Pine Floor |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| Ramps |
Available Options |
| Trailer Plug | 4-Way Flat w/ Loom |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 Bolt |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color |
Black
Available Options |
| Tie-Downs | (4) Tie Down Loops Inside Bed |
| Sides | 15" Tall Open sides with 1-1/2" Angle uprights and 2" x 2" Square Tubing Top Rail |
Model Benefits
Optional Rear Ramp Gate
Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Square Tubing Top Rail
Offering superior resilience compared to typical angle top rails, this trailer features square tubing for increased strength and structure.
Silver Mod Wheels & Quick-Lubricating Hubs
Industry-leading 15” Silver Mod Wheels and Quick-Lubricating hubs combine together to offer a smooth ride that’s stylish, reliable, and easier to maintain.
Durable Treated Wood Decking
Experience long-lasting durability with robust 2” treated decking.
