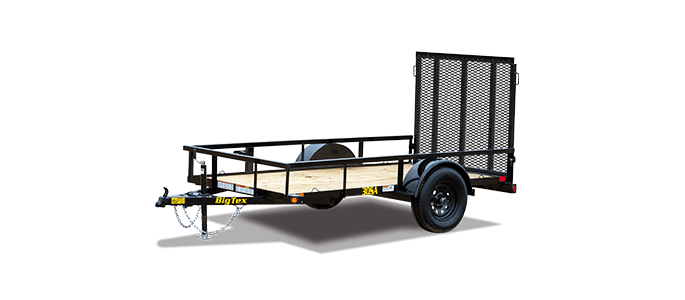

Single Axle Utility Trailer (30SA)
Hauling around the house and garden, unsure about what tasks you’re going to face in the day ahead? Then haul with confidence with the 30SA Single Axle Utility Trailer. Equipped with an angled frame and professional-grade finish to easily haul large ATVs and zero-turn mowers, the 30SA offers a reliable and cost-effective way to be prepared for whatever hauling needs come your way.
Trailer Specifications
8' – 10''
Width
60"
Lengths
2,995 lbs
GVWR
2,272—2,332 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
| Brakes |
Brake Flanges for Easy Brake Addition
Available Options |
| Suspension | Multi-Leaf Slipper Spring |
| Coupler |
2" A-Frame
Available Options |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| Jack |
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
Available Options |
| Frame | 3" x 2" x 3/16" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| Ramps | 4' Tall 3-Way Ramp Gate w/ Coil Spring Assist |
| Stake Pockets |
Available Options |
| Trailer Plug | 4-Way Flat w/ Loom |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 Bolt |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
(4) Tie Down Loops Inside Bed
Available Options |
| Sides |
17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail
Available Options |
Model Benefits
2,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Optional Rear Ramp Gate
Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Square Tubing Top Rail
Offering superior resilience compared to typical angle top rails, this trailer features square tubing for increased strength and structure.
Quick Lubricating Axle with Brake Flanges
Steel-belted radial tires and stylish black wheels combine together with premium, industry-leading axles that offer a smooth ride that’s stylish, reliable, and easier to maintain.
