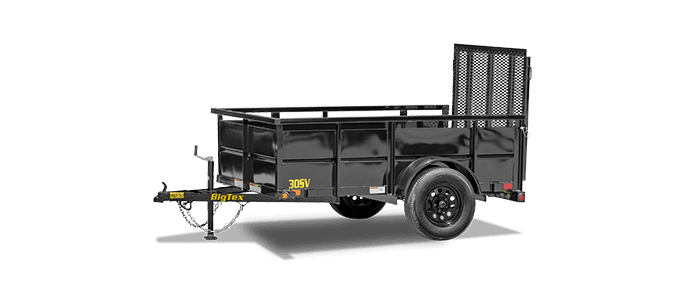

Single Axle Vanguard Trailer (30SV)
When it’s time to work, it’s time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Trailer Specifications
8' – 12''
Width
60"
Lengths
2,995 lbs
GVWR
1,925—2,125 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
| Brakes |
Brake Flanges for Easy Brake Addition
Available Options |
| Suspension | Multi-Leaf Slipper Spring |
| Coupler |
Demco EZ Latch
Available Options |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| Jack |
2,000# Top Wind, Set-Back Jack
Available Options |
| Frame | 3" x 2" x 3/16" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| Ramps |
Available Options |
| Stake Pockets |
Available Options |
| Trailer Plug | 4-Way Flat w/ Loom |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 Bolt |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
(4) Tie Down Loops Inside Bed
Available Options |
| Sides | 28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
| Storage |
Available Options |
| Top Rail | 2" x 2" Square Tubing |
Model Benefits
2,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Radial Tires
Long lasting tires deliver a smooth ride while also offering superior fuel economy.
Vanguard Sides
Comes standard equipped with 29-3/8” tall sides and 24” V-crimped steel panels for maximum strength and durability to protect and contain cargo.
Versatile 4' Rear Rampgate (Optional)
Expand your hauling capabilities with the optional rear ramp gate, ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
