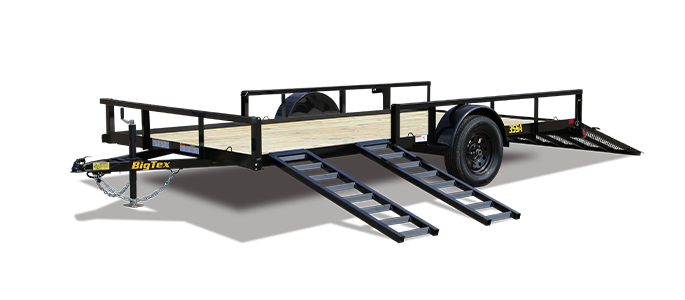

Single Axle ATV Trailer (35SA-RSX)
Specifically designed and built for homeowners and outdoor enthusiasts hauling ATVs and larger side-by-sides, the rugged and dependable 35SA-RSX Single Axle ATV Trailer is equipped to handle the job. That’s why it’s outfitted with a heavy-duty 4" frame, square rail, ramp sides, and, most importantly, a wider 83’’ deck. All that extra space makes it easier to load and unload side-by-sides and landscaping equipment—meaning you’ll spend less time trying to figure out how to haul your toys and more time having fun with them.
Trailer Specifications
12' – 14''
Width
83"
Lengths
2,995 lbs
GVWR
1,775—1,855 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
| Brakes |
Brake Flanges for Easy Brake Addition
Available Options |
| Suspension | Multi-Leaf Slipper Spring |
| Coupler |
2" A-Frame
Available Options |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| Jack |
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
Available Options |
| Frame | 4" x 3" x 1/4" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor |
2" Treated Pine or Douglas Fir*
Available Options |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| Ramps |
(2) 5' Square tubing ATV Ramp Sides
Available Options |
| Stake Pockets |
Available Options |
| Trailer Plug | 4-Way Flat w/ Loom |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 Bolt |
| Spare Mount | Front Spare Tire Mount |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color |
Black
Available Options |
| Tie-Downs |
(6) Tie Down Loops Inside Bed
Available Options |
| Sides | 16" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail |
Model Benefits
Optional Rear Ramp Gate
Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Square Tubing Top Rail
Offering superior resilience compared to typical angle top rails, this trailer features square tubing for increased strength and structure.
Quick Lubricating Axle with Brake Flanges
Steel-belted radial tires and stylish black wheels combine together with premium, industry-leading axles that offer a smooth ride that’s stylish, reliable, and easier to maintain.
5’ Square Tubing ATV Ramp Sides
Removable sides double as versatile ramps that can be used on either side or the rear.
