Deck-Over Pintles / 3XPH

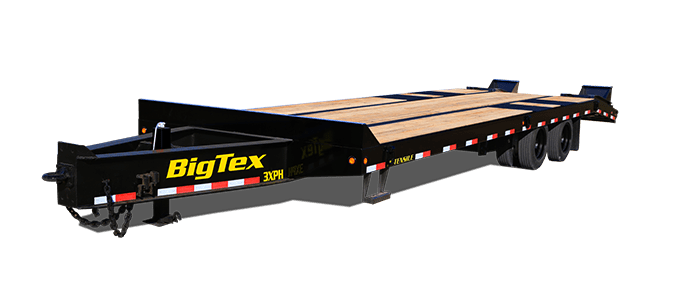

Super Duty Tandem Dual Wheel Pintle (3XPH)

The biggest jobs require a super-duty trailer that never quits. A trailer that never gives us, the 3XPH Super Duty Tandem Dual Axle Pintle Trailer is unyielding, and with 15K axles and premium adjustable suspension it’s built to tackle the most heavy-duty and high-capacity jobs. It’s ready to haul extremely heavy equipment, machinery, and large loads with a 30,000 lbs G.V.W.R. And you won’t have to worry about loading and unloading being difficult with its heavy-duty, spring-assist, double-hinged ramps. With this trailer, the big jobs don’t stand a chance.

View Inventory Download Brochure

Trailer Specifications

25' – 30''

Width

102"

Lengths

30,000 lbs

GVWR

23,700—24,200 lbs

Load Capacity

Features & Options

Standard Feature Click + for Options
Axles 2 - 15,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles

Available Options

Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks Electric Over Hydraulic Brakes (Drum)

Suspension Heavy Duty 44,000# Adjustable
Coupler 3" ID Pintle Ring
Safety Chains 1/2" Grade 80 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Top Wind)

Available Options

Dual Single-Speed Drop-Leg Jacks Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Jacks by Stillwell™

Frame 12" I-Beam, 22#
Cross-Members 6" Jr. I Beam, 16" Centers
Front Stop Rail 3/16" Fabricated Front Stop Rail
Floor Treated Pine Floor

Available Options

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)

Ramps 5' Double Hinged, Spring Assisted Flip-Over Ramps

Available Options

8' Rear Slide-In Ramps (STA Models Only) (2) 5' MEGA Ramps

Dovetail 5' Cleated Dovetail
Stake Pockets Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range H Radial Tires
Bolt Pattern 8x275 MM BC Hub
Spare Mount Front Spare Tire Mount
Spare Tire ST215/75 R-17.5 Load Range H Radial Tire
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Rubrail 3/8” Heavy Duty Rub Rail
Tie-Downs

Available Options

Extra 5/8" D-Rings

Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Mudflaps Standard
Storage

Available Options

Lockable Lid Over Tool Storage in Tongue Low Profile Tool Box 12” x 18” x 36” (Side Mount)

Cargo Winch

Available Options

4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track

Pipe Chain Spools 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets

Available Options

4" x 30' Strap

Side Rail 8" Channel
Steps & Handles (2) Side Bed Steps

Model Benefits

Effortless Maintenance

Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

Comprehensive Load Securement

A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.

Optional Powerhouse Mega Ramps

Optimize your loading experience with heavy-duty, extra-wide ramps, designed to handle the demands of loading various types of equipment with ease.

Heavy-Duty Adjustable Suspension

Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.
