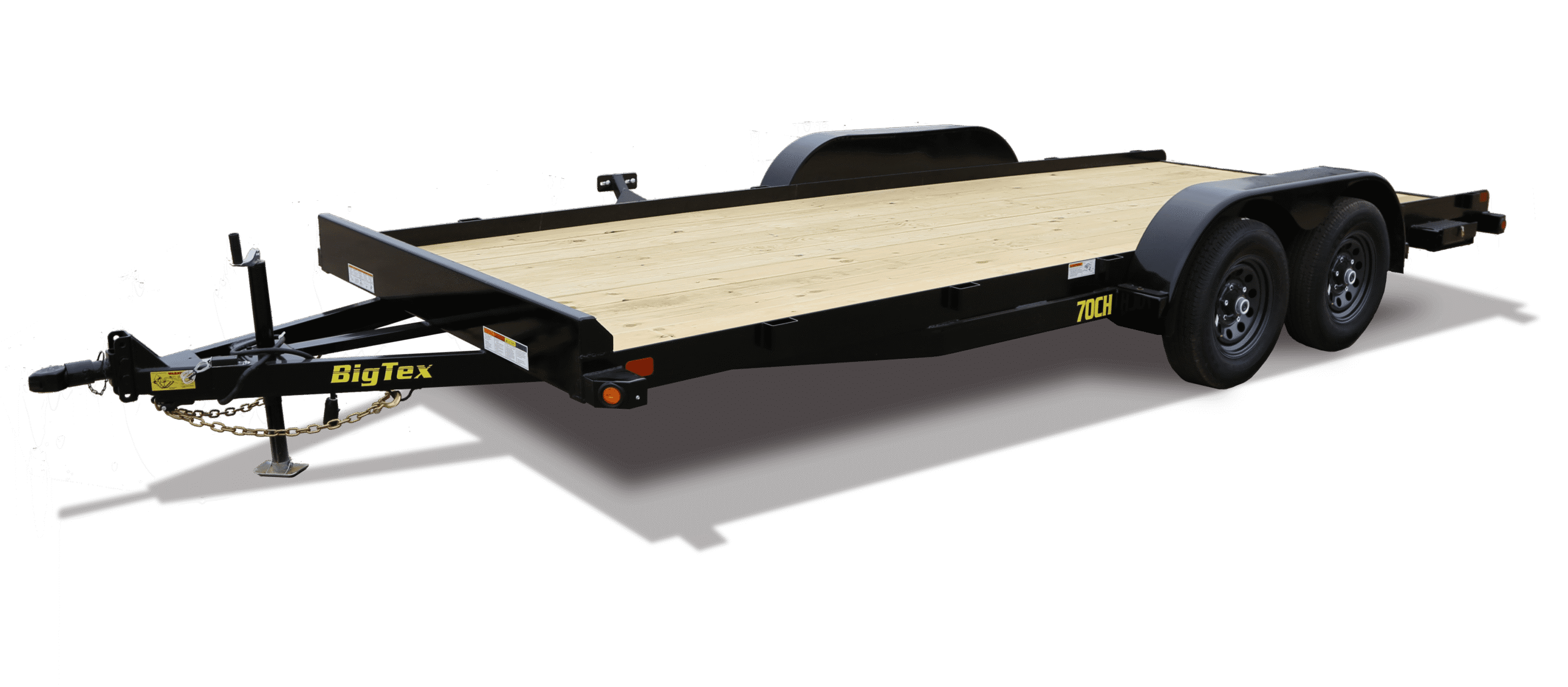

Tandem Axle Car Hauler (70CH)
Work harder and look great while doing it with the 70CH Tandem Axle Car Hauler, a tough and versatile car hauler purpose-built to transport cars, small tractors, ATVs, and side-by-sides. This tandem axle car hauler comes equipped with steel teardrop fenders that are bolted on for easy removal and reinstallation, giving you flexibility during loading and unloading and making maintenance easier. And if you want to make loading and unloading safer, an optional 4’ slide-in angle ramp package does just that. Pack it up. Haul it out. Get it done. The 70CH has your back.
Trailer Specifications
14' – 20''
Width
83"
Lengths
7,000 lbs
GVWR
4,940—5,390 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes |
Forward Self Adjusting Electric Brake on Front Axle
Available Options |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tongue | 4” Channel Fold Back/Wrap Tongue |
| Coupler |
Adjustable 2-5/16” Demco EZ Latch
Available Options |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack |
2,000# Top Wind, Set-Back Jack
Available Options |
| Frame | 5” x 3” x 5/16" Angle (1/4" on 16') |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9” x 72” Tear Drop (Removable) |
| Ramps |
4' Slide-In Angle Ramps
Available Options |
| Dovetail |
Straight Deck, No Dovetail
Available Options |
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length)
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires |
ST205/75 R-15 Load Range C
Available Options |
| Bolt Pattern | 5 on 5 |
| Wheels | Black Mod |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
Model Benefits
Tie Down Pockets on Front & Side
Coated Anchor Sides help to keep every haul in place and secure
2,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Radial Tires
Long lasting tires deliver a smooth ride while also offering superior fuel economy.
Tear Drop Removable Fenders
Protect your wheels and keep your gear in place with our tear drop fenders, or take them off for a bit more space and flexibility
Optional Dovetail Available
This model is available with an optional Dovetail. Adding the dovetail improves the load angle for smoother loading and unloading of cargo.
