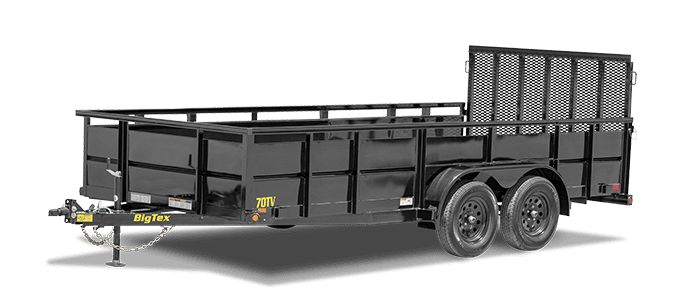

Tandem Axle Vanguard Trailer (70TV)
Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83’’ wide trailer that’s equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. It’s up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden.
Trailer Specifications
12' – 18''
Width
83"
Lengths
7,000 lbs
GVWR
5,065—5,335 lbs
Load Capacity
Features & Options
| Standard Feature | Click + for Options |
|---|---|
| Axles | 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
| Brakes |
Forward Self Adjusting Brakes on Front Axle and Flanges on the Rear Axle
Available Options |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Coupler |
2" Demco EZ- Latch
Available Options |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| Jack |
2,000# Top Wind, Set-Back, Sand Foot Jack
Available Options |
| Frame | 4" x 3" x 1/4" Angle |
| Cross-Members | 3” x 2” x 3/16” Angle |
| Floor |
Treated Pine Floor
Available Options |
| Fenders | 9" x 72" 16 Ga. Tear Drop Fender |
| Ramps |
Available Options |
| Stake Pockets |
(4) Stake Pockets on Outside Frame
Available Options |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting |
| Tires |
ST205/75 R-15 Load Range C
Available Options |
| Bolt Pattern | 5 Bolt |
| Spare Mount |
Available Options |
| Spare Tire |
Available Options |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs |
(4) Tie Down Loops Inside Bed
Available Options |
| Sides | 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
| Storage |
Available Options |
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 3" x 2" x 3/16" Angle |
Model Benefits
2,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Radial Tires
Long lasting tires deliver a smooth ride while also offering superior fuel economy.
Vanguard Sides
Comes standard equipped with 29-3/8” tall sides and 24” V-crimped steel panels for maximum strength and durability to protect and contain cargo.
Versatile 4' Rear Rampgate (Optional)
Expand your hauling capabilities with the optional rear ramp gate, ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
