Gooseneck/Pintle Trailers - Fully Loaded

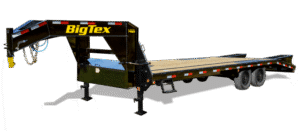

Big Tex 14GN

Single Wheel Tandem Axle Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 15,900# 4,780# 11,120#
102" x 22'+5' 15,900# 4,980# 10,920#
102" x 25'+5' 15,900# 5,280# 10,620#
102" x 28'+5' 15,900# 5,580# 10,320#
big Tex Heavy Duty Pipe Top Gooseneck Lowboy Trailer

Big Tex 14GP

Heavy Duty Pipe Top Gooseneck Lowboy Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
83" x 20' 14,000# 3,450# 10,550#
83" x 24' 14,000# 3,850# 10,150#

Big Tex 14GX

Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
83" x 14' 15,900# 4,640# 11,260#
83" x 16' 15,900# 5,000# 10,900#

Big Tex 14OD-GN

Over-The-Axle Gooseneck Dump Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
96" x 14' GN 14,000# 5,070# 8,930#
Big Tex single wheel tandem axle gooseneck trailer

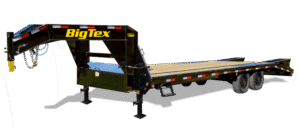

Big Tex 16GN

Single Wheel Tandem Axle Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 17,500# 4,940# 12,560#
102" x 22'+5' 17,500# 5,140# 12,360#
102" x 25'+5' 17,500# 5,440# 12,060#
102" x 28'+5' 17,500# 5,900# 11,600#
102" x 30'+5' 17,500# 6,110# 11,390#
102" x 35'+5' 17,500# 6,330# 11,170#

Big Tex 20GN

Economy Tandem Dual Wheel Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 20,000# 5,250# 14,750#

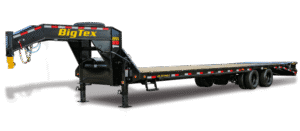

Big Tex 22GN

Tandem Dual Wheel Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 23,900# 5,800# 18,100#
102" x 25'+5' 23,900# 6,300# 17,600#
102" x 28'+5' 23,900# 6,900# 17,000#
102" x 30'+5' 23,900# 7,200# 16,700#
102" x 32'+5' 23,900# 7,500# 16,400#
102" x 35'+5' 23,900# 7,950# 15,950#
102" x 36' 23,900# 7,200# 16,700#
102" x 40' 23,900# 7,800# 16,100#
Big Tex heavy duty gooseneck trailer with ramps

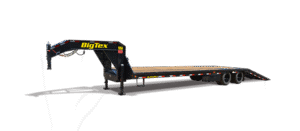

Big Tex 22GN-HDTS

Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 35' (26'+9') 23,900# 7,950# 15,950#
102" x 40' (31'+9') 23,900# 8,800# 15,100#

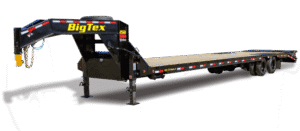

Big Tex 25GN

Heavy Duty Tandem Dual Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 25,900# 6,500# 19,400#
102" x 25'+5' 25,900# 7,250# 18,650#
102" x 28'+5' 25,900# 7,850# 18,050#
102" x 30'+5' 25,900# 8,630# 17,270#
102" x 32'+5' 25,900# 8,450# 17,450#
102" x 35'+5' 25,900# 8,900# 17,000#
102" x 36' 25,900# 8,150# 17,750#
102" x 40' 25,900# 8,750# 17,150#
Big Tex heavy duty gooseneck trailer with ramps

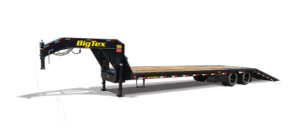

Big Tex 25GN-HDTS

Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 35' (26'+9') 25,900# 8,960# 16,940#
102" x 40' (31'+9') 25,900# 9,920# 15,980#

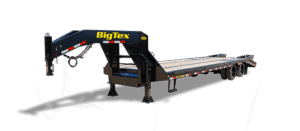

Big Tex 3XGN

Super Duty Tandem Dual Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20' 30,000# 6,980# 23,020#
102" x 25' 30,000# 8,440# 21,560#
102" x 28' 30,000# 9,140# 20,860#
102" x 30' 30,000# 10,200# 19,800#
102" x 36' 30,000# 9,290# 20,710#
102" x 40' 30,000# 10,370# 19,630#

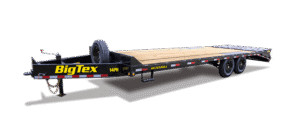

Big Tex 14PH

Single Wheel Tandem Axle Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 15,900# 4,580# 11,320#
102" x 25'+5' 15,900# 5,080# 10,820#

Big Tex 20PH

Economy Tandem Dual Wheel Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 20,000# 5,250# 14,750#

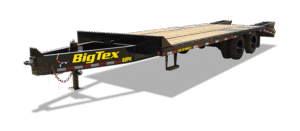

Big Tex 22PH

Tandem Dual Wheel Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 23,900# 5,600# 18,300#
102" x 25'+5' 23,900# 6,100# 17,800#

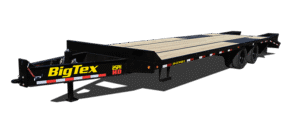

Big Tex 25PH

Heavy Duty Tandem Dual Axle Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 25,900# 5,800# 20,100#
102" x 25'+5' 25,900# 6,300# 19,600#

Big Tex 3XPH

Super Duty Tandem Dual Axle Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 30,000# 5,800# 24,200#
102" x 25'+5' 30,000# 6,300# 23,700#

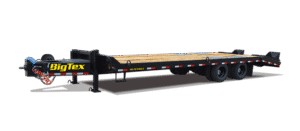

Big Tex 4XPH

Pintle Heavy Equipment Transport Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 48,000# 8,950# 39,050#
102" x 24'+5' 48,000# 10,150# 37,850#

Big Tex 5XPH

Pintle Heavy Equipment Transport Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 24'+5' 58,000# 10,350# 47,650#
102" x 28'+5' 58,000# 10,850# 47,150#

Our Gooseneck Trailer Options

Named for a hitch that curves up and over like the neck of a goose, these trailers attach to a fixed ball mount installed in your truck’s bed and connected to the frame. This ball sits directly over the rear axle, allowing for extreme hauling stability. We offer gooseneck cargo trailers for sale in several sizes — from 20 to 40 feet — and in different styles and payload capacities. Whether you need a small gooseneck trailer or a large hauler for heavy equipment, we’ll help you find it.

Big Tex Trailer World has both new and used gooseneck trailers for sale in payload capacities from 14k to 25k and beyond. Our range of styles fits numerous applications:

  • Gooseneck dump trailers: Our gooseneck dump trailers come with hydraulic hoists to quickly and efficiently unload materials or waste.
  • Lowboy gooseneck trailers: Lowboy gooseneck trailers have low-profile trailer beds equipped with fixed drop ramps for accessible loading and unloading.
  • Mega ramp gooseneck trailers: Loading and unloading heavy-duty equipment and machinery is convenient with our Big Tex mega ramp gooseneck trailers — perfect for a hot shot trucking business. Two ramps can combine to form one full ramp for loading wide equipment or extending your trailer bed space.

Gooseneck Trailer Uses

The bed of the gooseneck trailer is typically much longer and broader than your average trailer bed, making it a versatile hauler. Because of their stability, heavy-duty hauling capabilities and versatility, gooseneck trailers can be used for hauling virtually anything within their payload capacity.

Our Pintle Hook Trailers for Sale

The pintle hitch consists of a sturdy lunette ring on the front of the trailer and a hook protruding from the rear bumper of the hauling vehicle. Though they also use a bumper-pull style, they differ from the common ball hitch in that they can tolerate greater freedom of movement without losing their connection, making them ideal for hauling on rough terrain. They can also handle more weight, making a trailer with a pintle hitch excellent for heavy loads.

The new and used pintle trailers for sale at Big Tex Trailer World include both single- and dual-wheel variants as well as heavy-duty dual-axle versions. We also carry pintle hitch equipment trailers for agricultural or farm use. Our heaviest pintle hook hauler boasts a payload capacity of over 47,000 pounds.

Uses for Pintle Hitch Trailers

With their ability to handle rougher terrain, pintle hook trailers excel in applications such as transporting agricultural or oilfield equipment to a work site. Their high payload capacity also makes them a popular trailer for hot shot truckers who take on heavy hauls.

The Benefits of Buying From Big Tex Trailer World

It’s more than our vast and versatile inventory of trailers that sets us apart for our customers. Learn more about the advantages of making Big Tex Trailer World your pintle and gooseneck trailer dealer:

  • Affordability: Increase your dump trailer fleet without overtaxing your budget.
  • Expert advice: We’ll help you make an informed purchasing decision.
  • Nationwide team: With 60-plus stores nationwide, there’s a Big Tex Trailer World location near you.
  • Trailer repairs: We stand behind what we sell with reliable repair service.
  • Vast inventory: Count on us to have the ideal trailer for your needs.

Contact Us Today for More on Our Pintle and Gooseneck Trailers for Sale

For a pintle or gooseneck trailer from a manufacturer you trust, reach out to Big Tex Trailer World. Our towing experts will pinpoint your needs and offer guidance to help you find the right trailer model.

Fill out our online contact form today to request more information about our new and used trailers, or call us at 660-358-1222 to speak with one of our friendly team members!
