Gooseneck/Pintle Trailers - Fully Loaded

Big Tex 14GN

Single Wheel Tandem Axle Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 15,900# 4,780# 11,120#
102" x 22'+5' 15,900# 4,980# 10,920#
102" x 25'+5' 15,900# 5,280# 10,620#
102" x 28'+5' 15,900# 5,580# 10,320#

Big Tex 14GP

Heavy Duty Pipe Top Gooseneck Lowboy Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
83" x 20' 14,000# 3,450# 10,550#
83" x 24' 14,000# 3,850# 10,150#

Big Tex 14GX

Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
83" x 14' 15,900# 4,640# 11,260#
83" x 16' 15,900# 5,000# 10,900#

Big Tex 14OD-GN

Over-The-Axle Gooseneck Dump Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
96" x 14' GN 14,000# 5,070# 8,930#

Big Tex 16GN

Single Wheel Tandem Axle Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 17,500# 4,940# 12,560#
102" x 22'+5' 17,500# 5,140# 12,360#
102" x 25'+5' 17,500# 5,440# 12,060#
102" x 28'+5' 17,500# 5,900# 11,600#
102" x 30'+5' 17,500# 6,110# 11,390#
102" x 35'+5' 17,500# 6,330# 11,170#

Big Tex 20GN

Economy Tandem Dual Wheel Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 20,000# 5,250# 14,750#

Big Tex 22GN

Tandem Dual Wheel Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 23,900# 5,800# 18,100#
102" x 25'+5' 23,900# 6,300# 17,600#
102" x 28'+5' 23,900# 6,900# 17,000#
102" x 30'+5' 23,900# 7,200# 16,700#
102" x 32'+5' 23,900# 7,500# 16,400#
102" x 35'+5' 23,900# 7,950# 15,950#
102" x 36' 23,900# 7,200# 16,700#
102" x 40' 23,900# 7,800# 16,100#

Big Tex 22GN-HDTS

Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 35' (26'+9') 23,900# 7,950# 15,950#
102" x 40' (31'+9') 23,900# 8,800# 15,100#

Big Tex 25GN

Heavy Duty Tandem Dual Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 25,900# 6,500# 19,400#
102" x 25'+5' 25,900# 7,250# 18,650#
102" x 28'+5' 25,900# 7,850# 18,050#
102" x 30'+5' 25,900# 8,630# 17,270#
102" x 32'+5' 25,900# 8,450# 17,450#
102" x 35'+5' 25,900# 8,900# 17,000#
102" x 36' 25,900# 8,150# 17,750#
102" x 40' 25,900# 8,750# 17,150#

Big Tex 25GN-HDTS

Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 35' (26'+9') 25,900# 8,960# 16,940#
102" x 40' (31'+9') 25,900# 9,920# 15,980#

Big Tex 3XGN

Super Duty Tandem Dual Gooseneck Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20' 30,000# 6,980# 23,020#
102" x 25' 30,000# 8,440# 21,560#
102" x 28' 30,000# 9,140# 20,860#
102" x 30' 30,000# 10,200# 19,800#
102" x 36' 30,000# 9,290# 20,710#
102" x 40' 30,000# 10,370# 19,630#

Big Tex 14PH

Single Wheel Tandem Axle Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 15,900# 4,580# 11,320#
102" x 25'+5' 15,900# 5,080# 10,820#

Big Tex 20PH

Economy Tandem Dual Wheel Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 20,000# 5,250# 14,750#

Big Tex 22PH

Tandem Dual Wheel Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 23,900# 5,600# 18,300#
102" x 25'+5' 23,900# 6,100# 17,800#

Big Tex 25PH

Heavy Duty Tandem Dual Axle Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 25,900# 5,800# 20,100#
102" x 25'+5' 25,900# 6,300# 19,600#

Big Tex 3XPH

Super Duty Tandem Dual Axle Pintle Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 30,000# 5,800# 24,200#
102" x 25'+5' 30,000# 6,300# 23,700#

Big Tex 4XPH

Pintle Heavy Equipment Transport Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20'+5' 48,000# 8,950# 39,050#
102" x 24'+5' 48,000# 10,150# 37,850#

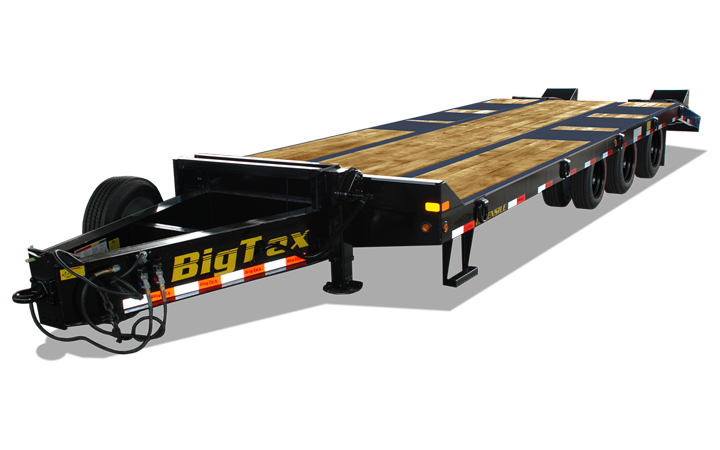

Big Tex 5XPH

Pintle Heavy Equipment Transport Trailer
Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 24'+5' 58,000# 10,350# 47,650#
102" x 28'+5' 58,000# 10,850# 47,150#
