Big Tex 22GN
Tandem Dual Wheel Gooseneck Trailer
Ready for the ultimate gooseneck trailer? A premium trailer providing long-lasting durability, the 22GN Tandem Dual Flatbed Gooseneck Trailer is built to work the toughest jobs in the most rugged conditions. From its dual 2-Speed 50K landing gear to HD adjustable suspension, it’s designed to handle heavy-duty hauling needs, particularly for transporting heavy construction equipment and hotshotting.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 102" x 20' | 23,900# | 5,240# | 18,660# |
| 102" x 20' + 5' | 23,900# | 6,690# | 17,120# |
| 102" x 25' | 23,900# | 5,900# | 18,000# |
| 102" x 28' | 23,900# | 6,300# | 17,600# |
| 102" x 25' + 5' | 23,900# | 7,460# | 16,440# |
| 102" x 30' | 23,900# | 6,570# | 17,330# |
| 102" x 28' + 5' | 23,900# | 7,920# | 15,980# |
| 102" x 33' | 23,900# | 6,970# | 16,930# |
| 102" x 30' + 5' | 23,900# | 8,130# | 15,770# |
| 102" x 35' | 23,900# | 7,240# | 16,660# |
| 102" x 36' | 23,900# | 7,370# | 16,530# |
| 102" x 35' + 5' | 23,900# | 8,790# | 15,110# |
| 102" x 40' | 23,900# | 8,200# | 15,700# |
Key Features
LARGE FRONT TOOLBOX
PIPE SPOOLS, RUB RAIL AND STAKE POCKETS
OIL BATH AXLES WITH FORWARD SELF ADJUSTING BRAKES AND VALCRUM CAPS
Equipment
BODY
Standard
Option
12" I-Beam, 19#
3" Channel Crossmembers
Treated Pine Floor
5' Cleated Dovetail (standard on +5 Models)
3/8” Heavy Duty Rub Rail on Both Sides
(2) Retractable Side Bed Steps + Handles
Helping Hand Riser Step
Black Paint
Twist Guard™ (Included on trailers 33' and Longer)
Removable Deck on the Neck- Bolt On (8' W x 6' L)
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
CARGO CONTROL
Standard
Option
Front Lockable Toolbox Uprights w/ Chain Holder
(6) 5/8" D-Rings
Stake Pockets Along Both Sides (Quantity Varies by Length)
1-1/4” Pipe Chain Spools Between Stake Pockets
Low Profile Tool Box 15” x 15” x 36” (Side Mount)
4" x 30' Strap
Extra 5/8" D-Rings
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range E (Dual)
8-Lug
Top of Neck Spare Tire Mount
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Mudflaps
Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare
Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
Deck Work Light Package w/ Step Illumination
Sliding Winch Track (standard on Trailer 33' or Longer )
4" Sliding Winch (Each)
4" Weld-On Winch (Each)
Sliding Winch Track (Per 6' Section), for trailers less than 33' long
SAFETY
Standard
Option
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On)
Dual Electric Over Hydraulic Landing Gear by Stillwell™
RAMPS
Standard
Option
5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps)
8' Rear Slide-In Ramps (Straight Deck Only)
(2) 5' MEGA Ramps
AXLES
Standard
Option
2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps
Heavy-Duty 30,000#, Adjustable Suspensioin
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
Electric Over Hydraulic Brakes (Drum)
COUPLERS
Standard
Option
2-5/16” Demco EZ Latch Gooseneck Coupler
360° view

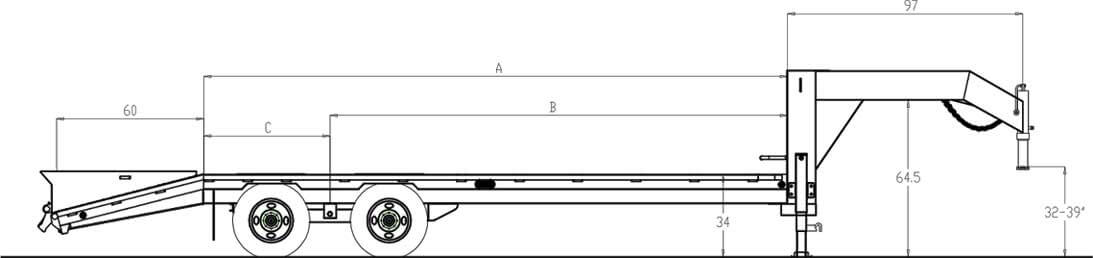

Measurements
