Big Tex 25GN

Heavy Duty Tandem Dual Gooseneck Trailer

Featuring 12K heavy-duty axles and standard equipped with a heavy-duty adjustable suspension, the 25GN Heavy Duty Tandem Dual Gooseneck Trailer is built from the ground up to handle the heaviest of loads in construction and hotshotting—day-and-night, 24/7. This robust and durable gooseneck trailer comes outfitted with all the features you demand: from a low-profile pierced-beam frame, LED lights, and adjustable dual jacks to a chain box and crank-style adjustable coupler. It’s heavy-duty. It’s hardworking. It’s built to last. The 25GN is here to help you get the job done.

Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 20' 25,900# 4,650# 19,250#
102" x 20' + 5' 25,900# 5,830# 18,070#
102" x 25' 25,900# 5,700# 18,200#
102" x 28' 25,900# 6,330# 17,570#
102" x 25' + 5' 25,900# 6,300# 17,600#
102" x 30' 25,900# 5,070# 18,830#
102" x 28' + 5' 25,900# 6,930# 16,970#
102" x 33' 25,900# 6,600# 17,300#
102" x 30' + 5' 25,900# 7,230# 16,670#
102" x 35' 25,900# 7,020# 16,880#
102" x 36' 25,900# 7,230# 16,670#
102" x 35' + 5' 25,900# 7,980# 15,920#
102" x 40' 25,900# 7,830# 16,070#

Key Features

LARGE FRONT TOOLBOX

PIPE SPOOLS, RUB RAIL AND STAKE POCKETS

OIL BATH AXLES WITH FORWARD SELF ADJUSTING BRAKES AND VALCRUM CAPS

Equipment

BODY
Standard
Option
12" I-Beam, 14# (16# I-Beam for 28' and longer)
3" Channel Crossmembers
Treated Pine Floor
5' Cleated Dovetail (standard on +5 Models)
3/8” Heavy Duty Rub Rail on Both Sides
(2) Retractable Side Bed Steps + Handles
Helping Hand Riser Step
Black Paint
Twist Guard™ (Included on trailers 33' and Longer)
Removable Deck on the Neck- Bolt On (8' W x 6' L)
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
CARGO CONTROL
Standard
Option
Front Lockable Toolbox Uprights w/ Chain Holder
(6) 5/8" D-Rings
Stake Pockets Along Both Sides (Quantity Varies by Length)
1-1/4” Pipe Chain Spools Between Stake Pockets
Low Profile Tool Box 15” x 15” x 36” (Side Mount)
4" x 30' Strap
Extra 5/8" D-Rings
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range E (Dual)
8-Lug
Top of Neck Spare Tire Mount
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Mudflaps
Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare
Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
Deck Work Light Package w/ Step Illumination
Sliding Winch Track (standard on Trailer 33' or Longer )
4" Sliding Winch (Each)
4" Weld-On Winch (Each)
Sliding Winch Track (Per 6' Section), for trailers less than 33' long
SAFETY
Standard
Option
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
RAMPS
Standard
Option
5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps)
8' Rear Slide-In Ramps (Straight Deck Only)
(2) 5' MEGA Ramps
AXLES
Standard
Option
2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps
Heavy-Duty 30,000#, Adjustable Suspension
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
Electric Over Hydraulic Brakes (Drum)
COUPLERS
Standard
Option
2-5/16” Demco EZ Latch Gooseneck Coupler

360° view

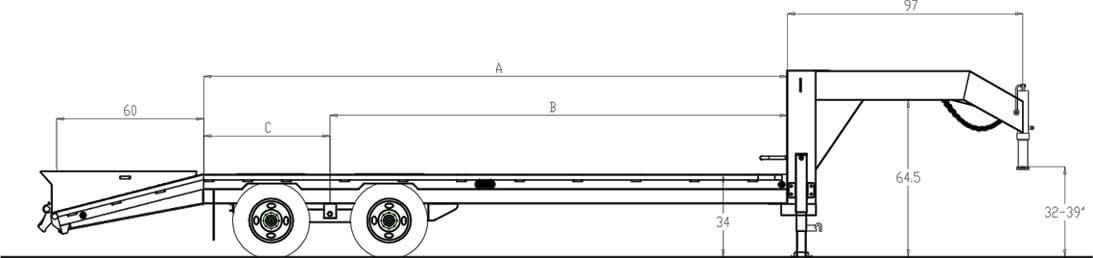

Measurements
