Big Tex 25PH
Heavy Duty Tandem Dual Axle Pintle Trailer
Putting your nose to the grindstone? Need a trailer that does too? The hardworking 25PH Heavy Duty Tandem Dual Axle Pintle Trailer is here to stand by your side, hauling heavy-duty loads in the most rugged and challenging conditions. This powerful trailer has it all; two 12K axles, a low-profile bed with a pierced-beam frame, and heavy-duty adjustable suspension. It’s a robust, pintle hitch trailer that gets the heavy work done in agricultural, construction, and industrial settings. Ready to take on the heaviest of loads? This trailer is—and so will you.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 102" x 20'+5' | 25,900# | 5,800# | 20,100# |
| 102" x 25'+5' | 25,900# | 6,300# | 19,600# |
Key Features
ROBUST ADJUSTABLE PINTLE RING
COMPREHENSIVE LOAD SECUREMENT
HEAVY-DUTY ADJUSTABLE SUSPENSION
EFFORTLESS MAINTENANCE
Equipment
BODY
Standard
Option
12" I-Beam
3" Channel Crossmembers
Treated Pine Floor
3/16" Fabricated Front Stop Rail
5' Cleated Dovetail
3/8” Heavy Duty Rub Rail on Both Sides
(2) Side Bed Steps
Black Paint
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
CARGO CONTROL
Standard
Option
Storage Tray in Tongue
Stake Pockets Along Both Sides (Quantity Varies by Length)
1-1/4” Pipe Chain Spools Between Stake Pockets
Low Profile Tool Box 15” x 15” x 36” (Side Mount)
4" x 30' Strap
Extra 5/8" D-Rings
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range E Radial Tires
8-Lug
Spare Tire Mount
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare
Tire Upgrade (ST235/80R-16 LR-G Dual) Includes Spare
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
Deck Work Light Package w/ Step Illumination
4" Sliding Winch (Each)
4" Weld-On Winch (Each)
Sliding Winch Track (Per 6' Section), for trailers less than 33' long
SAFETY
Standard
Option
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Drop-Leg Jack (Top Wind)
Dual 2-Speed Landing Gear
Dual Electric Over Hydraulic Landing Gear by Stillwell™
Dual Single-Speed Drop-Leg Jacks
RAMPS
Standard
Option
5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps)
(2) 5' MEGA Ramps
AXLES
Standard
Option
2 - 12,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Heavy-Duty 30,000#, Adjustable Suspension
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
Electric Over Hydraulic Brakes (Drum)
Electric Over Hydraulic Brakes (Disc)
COUPLERS
Standard
Option
3" ID Pintle Ring
360° view

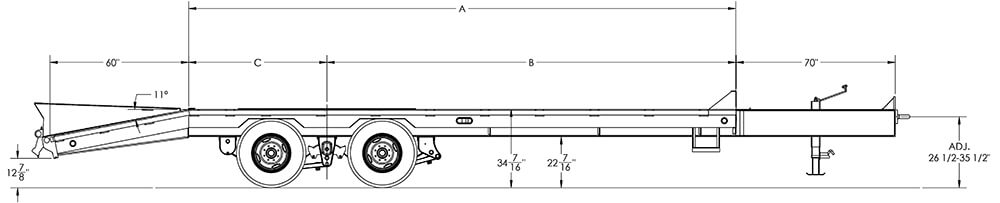

Measurements
